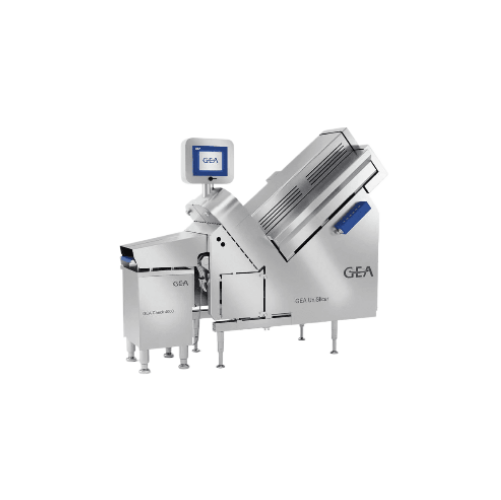

Industrial slicer for cooked ham and calibrated products

Achieve precision slicing and flexible portioning of meats and cheeses, maximizing yield and reducing waste with advanced circular blade technology.

Slices, Loads, and Portions Food Products Efficiently

The GEA UniSlicer L is a circular blade slicer renowned for its precision and versatility in food processing applications. This slicer effectively handles calibrated products like sausage, ham, bacon, and cheese, making it indispensable for meat and dairy producers aiming to standardize slices and portions, such as cooked ham slices, deli meat portions, and cheese slices. Utilizing servo-driven feeding, it maintains consistent slice thickness and minimizes waste by optimizing trim cuts and endpieces. Capable of slicing multiple logs simultaneously thanks to its wide throat design, it maximizes throughput within a compact footprint.

Manual loading allows for rapid product changeover, increasing flexibility across various operational conditions—ideal for high-speed, semi-automatic production environments. The UniSlicer L integrates easily into existing lines, offering optional components such as the GEA Check 4000 weighing system and a folding device, enhancing its utility in portion control and product presentation. Capable of achieving up to 600 rpm, it supports a range of portion types, including shingle and stack formations.

Crafted from durable materials to withstand demanding production conditions, the slicer features user-friendly maintenance with swift blade and component changeovers. The UniSlicer L is engineered to ensure reliability, encourage efficient operation, and offer exceptional slicing quality that meets the rigorous standards required in modern food processing facilities.

Benefits

  • Enhances production flexibility with rapid manual loading and product changeover.
  • Minimizes product waste through precise slicing and servo-driven feeding technology.
  • Increases operational efficiency by handling multiple logs in compact spaces.
  • Optimizes portion control for consistent quality across diverse product types.
  • Facilitates quick maintenance and cleaning with tool-free component access.

General


Applications
Calibrated products,Sausage,Cheese,Ham,Cooked ham,Salami,Bacon,Raw ham
End products
Breakfast sausage links,Cheese slices,Salami sandwich slices,Cooked ham slices,Deli meat portions,Prosciutto,Bacon strips package,Cheese blocks
Steps before
Product calibration,Product preparation,Temperature control
Steps after
Portion weighing,Packaging,Quality control,Distribution
Input ingredients
cooked ham,calibrated sausage,salami,raw ham,cheese,bacon
Output ingredients
shingle portions,stacked portions,zig zag stack,shaved portions,folded portions,chunks
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Blade size
Ø 420 mm standard / Ø 440 mm option
Cutting cross-section
Width 76 - 221 (240*) mm,Height 145 (154*) - 126 (135*) mm
Blade speed
Max. 600 rpm
Maximum product length
990 mm
Power supply
Max 7.0 kW
Noise emission
< 75 dB (A)
Compressed Air Usage
6 bar 7 NI/min
Product loading
Manual
Blade type
Circular blade
Dimensions
2,620 x 2,120 x 856 mm

Operating Characteristics


Working mechanism
Circular blade technology
Changeover time
Fast
Product handling
Manual product loading
Automation level
Manual / Servo-driven
Batch vs. continuous operation
Batch
CIP/SIP
Manual Cleaning
Cleaning method
Manual
Visualisation
15" touch panel

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Versatility
Variety of portion types including folding,shaving,and stacking

Physical Characteristics


Machine dimensions
2,620 x 2,120 x 856 mm
Blade size
Ø 420 mm standard,Ø 440 mm option
Max product length
990 mm
Cutting cross-section width
76 - 221 (240*) mm
Cutting cross-section height
145 (154*) - 126 (135*) mm
Max blade speed
600 rpm

Custom Options


Control panel type
15" touch panel
Integration possibilities
Telemonitoring/Remote services
Product loading
Manual
Gripper,blade,and recipe changeover
Fast
Product bed option
Synchron belt
Stacking options
Stacking conveyor
Folding mechanisms
Folding unit
Performance service
GEA Performance Service
