Industrial scraper for settling processes

Efficiently manage continuous sludge removal and sedimentation within your clarifiers and thickeners, ensuring optimal slurry processing by integrating this robust scraping solution that accommodates large tank diameters and high solid concentrations.

Scrapes and Extracts Sludge in Clarifiers

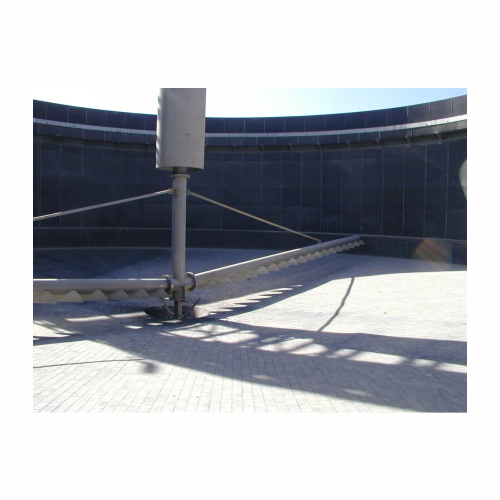

The LUMPP Industrial Scraper from HASLER Group is engineered to handle rigorous sludge scraping and extraction in clarifiers and thickeners, particularly in phosphoric acid and water treatment applications. This robust equipment is designed for tanks up to 35 meters in diameter, effectively processing solid sludge concentrations up to 30%. Utilizing a central drive unit and tubular shaft—attaching scraper arms for precise material redirection—the scraper integrates seamlessly into continuous operations with its automatic torque overload detection and adjustable blade system, ensuring material flow to tank outlets without interruption. Rated to withstand up to 96,500 Nm torque, the scraper is constructed from durable materials like 316L and super duplex to endure chemical and environmental challenges. With its sludge extraction options—whether central or edge discharge—the LUMPP Industrial Scraper is adaptable to various configurations, supported by rheology analyses for optimal installation. Enhanced by global support services, including three-dimensional CFD simulations and maintenance packages, it promises efficient integration and long-term operation across industries like hydrometallurgy, mining, and metal processing.

Benefits

  • Ensures continuous operation with automatic overload adjustment, minimizing process interruptions.
  • Reduces manual intervention with precise automatic sludge extraction options.
  • Adaptable to harsh environments with corrosion-resistant materials like 316L and super duplex.
  • Optimizes installation with optional rheology analyses for customized system performance.
  • Supports large-scale operations in complex chemical processes with high torque capacity.

General


Applications
Flocculation processes,Zinc,Sulphuric acid,Cobalt,Clarifiers,Iron ores,Fluorite,Calcium phosphate,Nickel,Phosphate ores,Calcium silicate,Phosphoric acid,Phosphate dihydrate,Copper,Thickeners
End products
Copper sulfate,Phosphate fertilizers,Hydrofluoric acid,Zinc sulfate,Clarified water,Treated wastewater,Sulfuric acid solutions,Thickened sludge,Nickel sulfate,Cobalt sulfate,Monocalcium phosphate,Superphosphate,Iron concentrates
Steps before
Flocculation,Reagent Addition,Sedimentation
Steps after
Clarified Liquid Recovery,Sludge Disposal,Filtration
Input ingredients
calcium phosphate,phosphate ores,sulphuric acid,phosphate dihydrate,fluorite,calcium silicate,iron ores,zinc,nickel,copper,cobalt,liquid with fine particles,reagent
Output ingredients
solid sludge,clarified liquid
Market info
HASLER Group is known for manufacturing and supplying industrial engineered-to-order (ETO) equipment, specializing in mixing, filtration, and sealing solutions for various industries, with a reputation for quality and innovation in handling challenging process applications.

Technical Specifications


Tank Diameter
Up to 35 m
Usable Volume
Up to 18,000 m³
Solid Content
0.5 to 30%
Rated Torque
Up to 96,500 Nm
Materials
316L,904L,Super Duplex
Safety
Torque Monitoring System
Automation
Automatic Anti-overload System
Sludge Extraction
Central or Edge

Operating Characteristics


Automation level
Automatic anti-overload system
Scraper rotation method
Axial-drive
Sludge extraction configuration
Central or edge extraction
Scraper arm adjustment
Automatic height adjustment
Scraping method
Continuous operation
Rheology analysis option
Available
Torque monitoring
Safety overload protection

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
Yes
Corrosive resistance (e.g.,acids)
High
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Material
316L,904L,Super Duplex

Custom Options


Tank diameter
10 to 35 m
Sludge extraction
Central or edge
Material
Stainless steel (316L,904L,super duplex)
Safety system
Automatic anti-overload system
