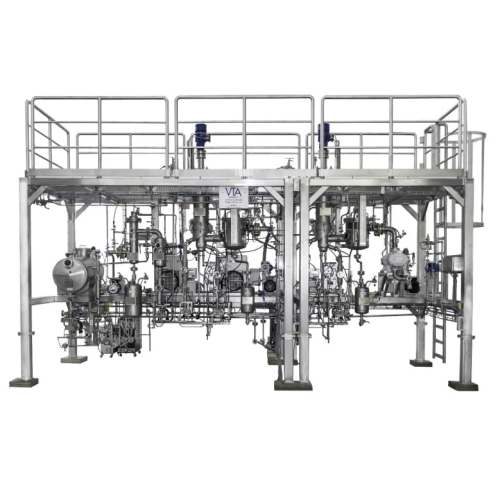

Industrial-scale cannabis distillation system
Achieve up to 99% cannabinoid purity effortlessly with an industry-standard short path distillation plant, designed for seamless integration into large-scale continuous production lines for cannabis and hemp processing.
Processes and Purifies Cannabis and Hemp Oils
The VK 200-40 from Root Sciences, designed by VTA of Germany, is a dual-stage short path distillation system tailored for cannabis and hemp oil processing. This system excels in achieving high-purity cannabinoid distillates, integrating a continuous feed mechanism to ensure uninterrupted operation. Ideal for producing THC distillates, CBD distillates, and other cannabinoid isolates, it handles up to 40,000 mL/h. The fully jacketed design with independent degassing enhances processing reliability regardless of feedstock, while integrated pumps offer precision in control over feed and discharge rates. Constructed from 316 stainless steel with graphite wipers, it meets UL certification standards and can be customized to fulfill GMP requirements. The VK 200-40 ensures seamless integration within industrial-scale production lines, making it indispensable for both cannabis and pharmaceutical industries.
Benefits
- Maximizes cannabinoid purity with dual-stage distillation.
- Enhances operational efficiency with continuous feed design.
- Offers precise process control with fully pump-driven operation.
- Reduces downtime with user-friendly, semi-automatic operation.
- Ensures regulatory compliance with GMP-ready customization.
- Applications
- Thc,Hemp,Cannabis,Crude oil,Cannabinoids,Industrial cbd
- End products
- Cannabis oil,Cannabinoid isolate,Cannabis tinctures,Cbd distillate,Cannabis-infused edibles,Hemp extracts,Hemp oil,Cannabis vaping oils,Thc distillate,Cbd-infused products
- Steps before
- Extraction,Winterization,Decarboxylation
- Steps after
- Packaging,Quality Control Testing
- Input ingredients
- cannabis crude oil,hemp crude oil,winterized oil,decarboxylated oil,CO2 extracted oil,light hydrocarbon extracted oil,cold ethanol extracted oil
- Output ingredients
- cannabinoid distillate,99% total cannabinoids distillate,THC distillate,CBD distillate
- Market info
- Root Sciences is known for providing high-quality extraction, distillation, and other processing equipment for the cannabis and hemp industries, offering solutions for creating purified concentrates and extracts, emphasizing efficiency and innovation.
- Throughput
- 40,000 mL/h
- Distillate Yield (per 8 hr. shift)
- 280 L
- Evaporator Surface Area
- 0.4 m²
- Power Requirements
- 3Φ 400 V,60 Hz,100 A
- Stages
- Dual
- Dimensions (L x W x H)
- 25.6’ x 6.9’ x 12.9’
- Weight (gross)
- 6,000 kg
- Material Used
- 316 stainless steel,graphite wipers
- Automation
- Semi-automatic
- Cycle Time
- Continuous
- Working mechanism
- Wiped-film short path distillation
- Integrated steps
- Independent degassing stage
- Flow operation
- Continuous feed
- Automation level
- Semi-automatic operation
- Heat management
- Fully jacketed system
- Pump-driven operation
- Yes
- Corrosion resistance
- 316 stainless steel
- Thermal resistance
- High – Maintains integrity at operational temperatures
- Chemical resistance
- Graphite wipers handle chemical exposure
- Biological compatibility
- Compatible with cannabis and hemp products
- Abrasion Resistance
- Enhanced durability due to stainless steel and graphite components
- UL Ready
- All necessary components are UL listed
- GMP Ready
- Customized to meet any local or international GMP requirements
- Machine footprint
- 25.6’ x 6.9’ x 12.9’
- Weight (gross)
- 6,000 kg
- Feed method
- Fully pump-driven operation
- Discharge method
- Continuous feed,atmospheric dispense without breaking vacuum
- Evaporator Surface Area
- 0.4 m²
- GMP Readiness
- Customizable to meet local/international GMP requirements
- Operator Control Options
- Fully pump-driven instead of gravity fed
- Feed Rate Control
- Integrated pumps provide control
- Heating System
- Fully jacketed for even heating
- Operation Mode
- Semi-automatic for continuous production
