Industrial rotary feeder for powder and agglomerates
Achieve seamless integration in your production line with a robust solution that manages the precise feeding and discharge of powdery and agglomerated materials, ensuring high torque and adaptability under differential pressure conditions.
Feeds and Discharges Powders with Cutting and Loosening Functions

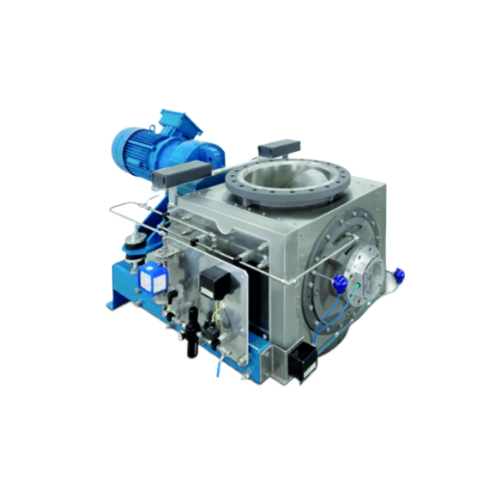

The PFC Process Rotary Feeder from Zeppelin Systems is engineered to enhance the efficiency of feeding and discharging powders and agglomerated products, addressing high torque requirements with precision under differential pressures up to 1.5 bar (g). Its robust design, featuring a reinforced aluminum housing and stainless steel cutting application, ensures durability and process safety in demanding industrial environments.
Engineered for diverse applications, from rubber compounds to milk powder and acrylic paints, this rotary feeder handles continuous operations with automatic rotation reversal to prevent blockages. An integrated output assistant system injects gas to loosen material within the rotor pocket, maintaining smooth flow. Material handling is optimized with a wear-resistant stellite welded cutting edge.
The PFC rotary feeder accommodates extreme temperatures ranging from -20°C to +120°C and complies with ATEX certification, making it suitable for the food, rubber, and plastics industries. Maintenance is minimized through a simple mechanical seal design, precise gap construction, and absence of hydraulic components. Customizable configurations and options are available to meet specific production needs, ensuring seamless integration into existing processing lines.
Benefits
- Enhances process efficiency with automatic torque-responsive rotation to prevent blockages.
- Reduces maintenance downtime with a robust, wear-resistant design.
- Facilitates precise control of material flow under differential pressures up to 1.5 bar (g).
- Supports varied applications in demanding industries such as food, rubber, and plastics with high torque capabilities.
- Complies with ATEX certification for safe operation in potentially explosive environments.
- Applications
- Agglomerated products,Rubber and tire industry materials,Food industry materials,Plastics,Powders,Dispersion paints
- End products
- Tea blends,Acrylic paints,Rubber compounds,Sugar,Cement powder,Tire treads,Milk powder,Talcum powder,Plastic pellets
- Steps before
- Storage in discharge containers,Mixing,Blending
- Steps after
- Feeding to processing line,Discharge to next production stage,Packing
- Input ingredients
- powders,agglomerated products
- Output ingredients
- powders,agglomerated products
- Market info
- Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.
- Feed type
- Powder / Agglomerated products
- Differential pressure
- Up to 1.5 bar (g)
- Mechanical design pressure
- Up to 10 bar (g)
- Mechanical temperature resistance
- -20 to +120°C
- Torque
- High torque with cutting function
- Material
- Aluminum housing with stainless steel components
- Rotation direction
- Automatically changing at defined torque
- Seal type
- Mechanical seal with soft counter-ring
- Flange joints
- DIN 2501 PN10 FF / ANSI 150 lbs FF
- Working Mechanism
- Feeding and discharging powders
- Torque Handling
- High torque with cutting function
- Differential Pressure Capabilities
- Up to 1.5 bar (g)
- Rotation Direction
- Automatically changing rotation
- Simulated Forward/Backward Operation
- Adjustable torque
- Output Assistance System
- Bulk material loosening via gas
- Leakage Control
- Low leakage with optimized gap design
- Temperature Resistance
- -20 to +120°C
- Process Heating
- Temperature monitoring
- Mechanical Design Pressure
- Up to 10 bar (g)
- Abrasion resistance
- High
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- Dependent on configuration
- Discharge method
- Feeding and discharge for powders and agglomerated products
- Construction material
- Robust aluminum housing with stainless steel cutting application
- Rotor design
- Reinforced rotor with direction reversal
- Flange joints
- Bored in accordance with DIN 2501 PN10 FF or ANSI 150 lbs FF
- Temperature resistance
- High mechanical temperature resistance from -20 to +120°C
- Seal design
- Minimal wearing of seals with mechanical seal and soft counter-ring
- Gap design
- Optimal,customized gap design for low leakage
- Size range
- PFC 565 to PFC 850
- Operation pressure
- Differential pressure up to 1.5 bar (g),Mechanical design pressure up to 10 bar (g)
- Output assistant system
- Gas-injected emptying rotor pocket
- Control panel type
- Touchscreen / Push-button
- Integration possibilities
- PLC / SCADA
- Discharge method
- Gravity / Pneumatic
- Rotor material
- Stainless Steel / Aluminum
- Drive type
- Electric / Non-hydraulic
- Size options
- PFC 565 to PFC 850
- Rotation direction
- Automatic forward/backward
