Industrial raisin washing system
Achieve thorough cleaning and separation for small, high-density food products with this innovative washing system, designed to maximize particle removal and enhance product outfeed efficiency in continuous processing operations.
Washes, Disinfects, and Separates Dried Fruits and Vegetables

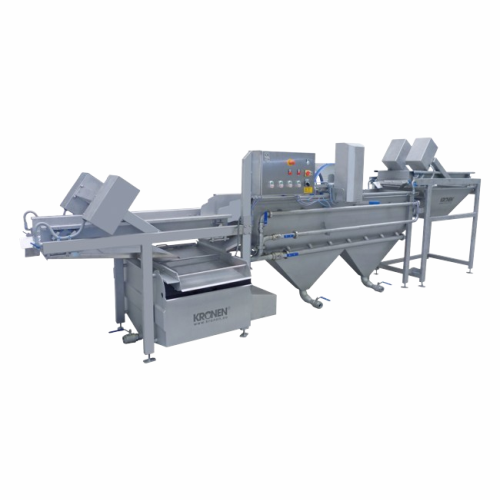

The GEWA 3850T PLUS from KRONEN GmbH is a comprehensive washing system tailored for high-density dried fruits and vegetables. Utilizing a helical washing system, it ensures thorough cleaning through a spiral motion in the wash tank. This design enables effective pre-cleaning, washing, disinfection, and rinsing in a continuous automatic process, making it ideal for processing operations with demanding purity requirements.
The machine specializes in handling products such as raisins, apricots, and salad components, ensuring efficient removal of fine particles and foreign materials. It integrates seamlessly into production lines, offering a throughput of up to 800 kg/h, thereby solving high-volume processing challenges.
Equipped with advanced features like pre-vibration for sand and particle separation, lateral fine particle removal drums, and sand trap sedimentation units, the GEWA 3850T PLUS minimizes water usage while maximizing cleaning efficacy. Constructed from AISI 304 stainless steel, it is designed for durability and easy maintenance, with all components accessible for cleaning.
This machine supports PLC-controlled functions, facilitating minimal manual intervention and efficient operation. Its versatility extends to applications across food processing industries, whether for dried fruit manufacturers or salad processors, providing a hygienic and efficient solution aligned with best practices and industry standards.
Benefits
- Maximizes product purity with advanced particle and sand separation techniques.
- Minimizes operational labor costs with its fully automatic, continuous process design.
- Reduces water usage significantly due to the efficient HELICAL washing system.
- Ensures hygienic processing with easy-access cleaning and maintenance features.
- Supports diverse food processing needs, enhancing production versatility across different product types.
- Applications
- Lettuce,Fruits,Herbs,Apricots,Vegetables,Raisins,Dried fruits
- End products
- Dried vegetable medleys,Mixed fruit cups,Apricot preserves,Fresh cut herbs,Herb-infused oils,Pre-packaged salad mixes,Raisin snack packs
- Steps before
- Trimming,Sorting,Disinfection,Pre-vibration
- Steps after
- Drying,Packaging,Mixing,Product Outfeed
- Input ingredients
- raisins,dried fruit,apricots,small high-density products,lettuce,vegetables,herbs
- Output ingredients
- cleaned raisins,cleaned dried fruit,cleaned apricots,cleaned high-density products,cleaned lettuce,cleaned vegetables,cleaned herbs
- Market info
- KRONEN is known for manufacturing industrial food processing equipment, specializing in washing, cutting, peeling, and packaging machinery, recognized for innovation, high quality, and efficiency in automated food processing solutions.
- Capacity
- 50-800 kg/h
- Electrical Power
- 7.1 kW
- Voltage
- 3~400 V N/PE
- Frequency
- 50 Hz
- Fresh Water Connection
- 3/4 inch (GEKA coupling)
- Water Drainage
- 2 x 2"
- Total Volume
- 940 l
- Dimensions (LxWxH)
- 5762 x 1389 x 1816 mm
- Weight
- 587 kg
- Infeed/Placement Height
- 1443 mm
- Outfeed/Delivery Height
- 925 mm
- Working Mechanism
- Helical washing system
- Integrated Steps
- Pre-cleaning,washing,disinfection,rinsing
- Batch vs. Continuous Operation
- Continuous
- Automation Level
- Automatic filling and processing
- Cleaning Method
- Automatic water circulation
- Energy Efficiency
- Reduced water consumption
- Changeover Time
- Fast-acting tensioning system for filter changes
- Abrasion resistance
- Suitable for high-density products
- Biological compatibility
- Safe for food products
- Cleanability
- Easy maintenance and cleaning access
- Corrosive resistance (e.g. acids)
- Made from AISI 304 stainless steel
- Density/particle size
- 0.5–2.5 g/cm³ for small high-density products
- Abrasiveness
- Yes
- Density/particle size
- High-density
- Foaming
- No
- Compact footprint
- Yes
- Increased washing efficiency
- High
- Fine particle removal
- Effective
- Universal application
- Diverse
- Machine footprint
- L 5762 x W 1389 x H 1816 mm
- Tank shape and size
- HELIX wash tank
- Feed method
- Infeed belt or manual
- Discharge method
- Vibration outfeed
- Material
- AISI 304 stainless steel
- Control panel type
- PLC-controlled
- Control panel type
- Automated with switch cabinet
- Integration possibilities
- Centrally controlled water management system
- Cleaning accessibility
- Designed for ease of cleaning and maintenance
