Industrial passion fruit juicer for efficient juice extraction

Achieve complete separation of passion fruit components with precision, ensuring high-quality juice without impurities while maximizing yield from seed and skin extractions in your production line.

Crushes, Separates, and Extracts Passion Fruit Components

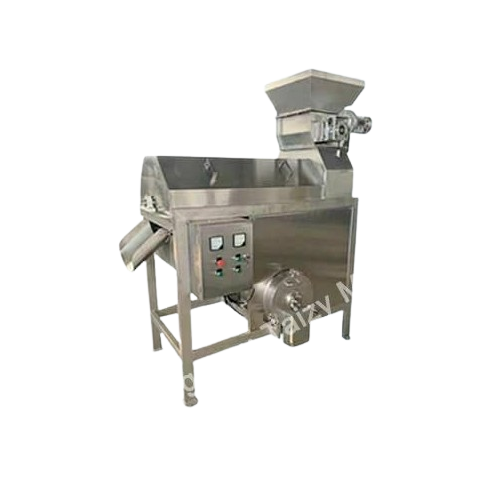

The Big Passion Fruit Juicer Machine is engineered to meet the demands of modern juice production facilities, efficiently processing passion fruit for the food and beverage industry. It features a robust design with stainless steel construction for high corrosion resistance and longevity. This machine excels at crushing and separating fruit into juice, pulp concentrate, seed oil, and puree. By using a dedicated crusher and separation mechanism, it ensures complete extraction while keeping operations continuous and high-speed.

With a processing capacity of 0.5-1T/hour, it suits commercial juice processors targeting both liquid and solid end-products like bottled beverages and concentrates. The system is equipped with a juice collection tank and separate outlets for seeds and skin, maintaining a clean, impurity-free output. The mechanism includes a silica gel scraper for efficient juice and seed separation and is easy to operate and maintain, featuring pre-processing checks and adjustable components to optimize performance.

Ideal for integration into existing processing lines, the juicer uses a balanced motor system optimizing energy use, and each unit can be customized for specific operational needs, ensuring high throughput and minimal resource wastage.

Benefits

  • Increases production efficiency with continuous and high-speed operation.
  • Enhances product purity, delivering clean juice with a 97% cleaning rate.
  • Minimizes material waste with less than 2% seed loss.
  • Lowers maintenance efforts with easy-to-clean stainless steel construction.
  • Integrates seamlessly into existing production lines for optimized workflows.

General


Applications
Commercial juice extraction,Beverage production,Food processing,Passion fruit products,Fruit juices
End products
Bottled passion fruit beverage,Passion fruit pulp concentrate,Passion fruit puree,Passion fruit seed oil,Passion fruit juice
Steps before
sorting,inspection,washing,feeding
Steps after
cleaning,inspection,packing,filling
Input ingredients
passion fruit,whole passionflower,raw passion fruit
Output ingredients
passion fruit juice,passion fruit pulp,passion fruit seeds,passion fruit skin
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Capacity
0.5-1 T/H
Power
2.2 KW
Dimensions
1900×850×2260 mm
Material
Stainless steel
Juice cleaning rate
More than 97%
Seed loss rate
Less than 2%
Automation
Manual operation and maintenance

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Cleaning method
CIP / Manual

Material Compatibility


Corrosive resistance (e.g. acids)
High corrosion resistance
Cleanability
Easy to clean


FDA materials
Stainless steel suitable for food contact

Physical Characteristics


Machine footprint
1900×850×2260 mm
Discharge method
Separate outlets for juice,pulp,and seeds
Material
Stainless steel

Custom Options


Control panel type
Manual / Automated
Discharge method
Automated seed,pulp,and skin discharge
Compact footprint
Space-saving design
