Industrial low temperature water chiller for beverage production

Ensure optimal cooling efficiency and precise temperature control in your beverage production and brewing processes with a reliable solution designed to handle high-speed operations and maintain product quality.

Controls and Chills Industrial Processes

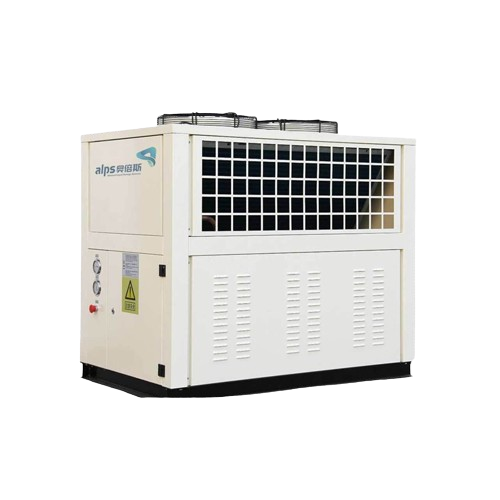

The Industrial Low Temperature Water Chiller Model LS5HP from Alps Machinery is engineered for precise cooling in high-demand environments such as beverage manufacturing and brewery operations. This air-cooled chiller employs a semi-hermetic screw compressor for quiet and stable operation, integrating advanced refrigeration components that ensure no leakage and low noise. It efficiently manages temperatures as low as -5°C, supporting a range of applications from carbonated beverages to chilled process water.

The chiller’s scroll hermetic compressor, sourced from a reputable international brand, requires no maintenance, while electrical and refrigeration components from world-renowned brands ensure lasting performance. With a cooling capacity of up to 104 kW and a flow rate compatible with industrial needs, it boasts a stainless steel water tank and high-lift pumps for durability.

Designed with comprehensive protection features including high and low-pressure safeguards, anti-freezing measures, and water flow monitoring, the LS5HP offers seamless integration into existing production lines. Its energy-efficient operation is complemented by an easy-to-use PLC control system for streamlined automation and remote monitoring. Optional customization allows for tailored engineering support to fit specific production requirements, making it a versatile choice for industrial cooling solutions.

Benefits

  • Enhances product consistency with precise temperature control for beverages and brewing processes.
  • Minimizes maintenance with durable, low-noise operation and reliable components.
  • Increases operational safety with comprehensive protection features, reducing risk of system failures.
  • Cuts energy costs through efficient cooling technology and optimized motor use.
  • Seamlessly integrates into existing production lines with flexible customization options.

General


Applications
Carbonated beverages,Beer brewing,Industrial cooling systems
End products
Soda,Craft beer,Refrigerated process water,Ipa,Lager,Chilled glycol solution,Cold storage systems,Stout,Ale
Steps before
Water Treatment,Beverage Preparation
Steps after
Carbonation,Filling,Labeling,Packing
Input ingredients
ambient water,warm water,carbonated beverage,beer
Output ingredients
chilled water,low temperature beverage,chilled carbonated beverage,chilled beer
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Nominal cooling capacity
7.5-104 kW
Machine power
4.7-43.2 kW
Machine operating current
9.2-76.4 A
Refrigeration input power
3.9-35.8 kW
Evaporator type
Pipe dry high efficiency heat exchanger
Evaporator flow
244-1972 L/min
Evaporator interface size
DN32-DN65
Condenser type
Efficiency copper pipe and aluminum foil wing heat exchanger
Chilled water pump input power
0.55-3.00 kW
Chilled water pump head
22-25 mH2O
Nominal tank volume
80-370 L
Overall dimensions (Length x Width x Height)
1050-3100 mm x 700-1500 mm x 1090-2100 mm
Machine weight
180-1550 kg
Operating weight
260-1920 kg
Cooling temperature
-5℃
Compressor type
Scroll Hermetic compressor

Operating Characteristics


Air incorporation control
Low noise
Automation level
PLC
Batch vs. continuous operation
Continuous
CIP/SIP
Manual CIP
Energy efficiency
High efficiency design
Cleaning method
Manual

Material Compatibility


Abrasion resistance
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
Stainless steel components

Product type Characteristics


Application
Carbonated beverage,beer brewing

Physical Characteristics


Machine footprint
1050x700x1090 mm to 3100x1500x2100 mm
Tank size (Nominal tank volume)
80 L to 370 L
Weight
180 kg to 1550 kg
Operating weight
260 kg to 1920 kg
Condenser type
Efficiency copper pipe and aluminum foil wing heat exchanger
Evaporator type
Pipe dry high efficiency heat exchanger
Chilled water pump type
High efficiency,low noise centrifugal water pump
Control panel type
0

Custom Options


Material of construction
Stainless steel
