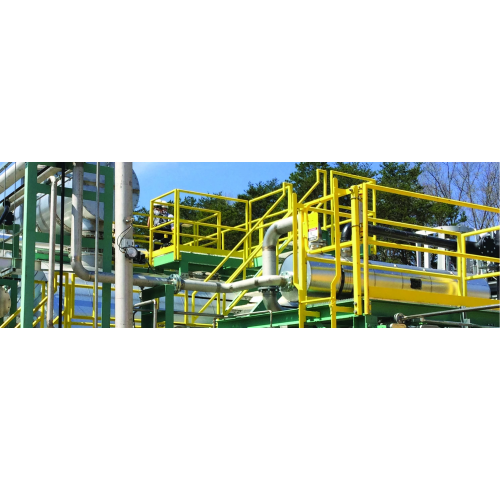

Industrial liquid distillation for solvent recovery

Optimize your solvent separation and purification process with advanced distillation technology, ensuring maximum efficiency and minimal waste while meeting stringent purity standards.

Purifies and Reclaims Solvent Mixtures

The Sorpt.X LD Liquid Distillation System from Dürr is designed for robust solvent recovery and purification, addressing the needs of the chemical, pharmaceutical, and electronics industries. Utilizing extractive and azeotropic multicomponent distillation techniques, this system effectively separates and purifies solvent mixtures into high-quality, reusable components. With the capability to handle flows between 500 CFM and 1,000,000 CFM, it can be tailored to meet specific operational requirements, whether in continuous or batch, vacuum, atmospheric, or pressure conditions. Dürr’s pre-assembled skid-mounted systems ensure rapid installation and minimized downtime, while the integration of optimized heat recovery technologies significantly reduces operating costs. Materials such as stainless steel and Hastelloy ensure durability and chemical resistance, making the system compliant with stringent industrial standards. Configurations include steam and air stripping columns to enhance solvent removal efficiency, supporting environmental compliance and reducing hazardous disposal costs. For seamless integration into existing production lines, the system offers PLC-controlled automation with options for remote monitoring and customization to fit specific space constraints and throughput demands.

Benefits

  • Enhances solvent recovery efficiency, reducing raw material costs and increasing sustainability.
  • Minimizes installation time and costs with pre-assembled skid-mounted design.
  • Reduces operational expenses through optimized heat recovery systems.
  • Provides flexibility across various industries with support for continuous and batch processes.
  • Ensures compliance with stringent industrial standards using durable, corrosion-resistant materials.

General


Applications
Degreasing,Soil vapor extraction and groundwater remediation,Rubber-coated fabric production,Chemical/petrochemical,Film and foil coating,Publication and packaging gravure printing,Pharmaceutical,Paper,Semiconductor and electronics,Foam production,Membrane production
End products
Pharmaceutical active ingredients,Silicon wafers,Polyurethane foam,Reverse osmosis membranes,Reclaimed solvents,Industrial degreasers,Printed magazines,Printed packaging materials,Flexible packaging films,Rubberized textiles,Coated paper,Solvent-based adhesives
Steps before
Solvent recovery,Effluent treatment,Pre-treatment of water-soluble solvents,Collection of solvent-laden air
Steps after
Solvent reuse,Water discharge,Storage of distilled solvents,Purified water disposal
Input ingredients
water-soluble solvents,multiple-solvent mixtures,contaminated feed water,solvent-laden air
Output ingredients
individual solvents,purified water,solvent contaminants removed,recovered solvents
Market info
Dürr is known for its expertise in industrial engineering and manufacturing solutions, specializing in automotive painting technology, environmental technology, and production efficiency systems. It has a strong reputation for innovation and quality in engineered-to-order equipment.

Technical Specifications


Flow Rate
500–1,000,000 CFM
System Type
Batch or continuous
Design
3D design,pre-assembled skid-mounted
Materials of Construction
Carbon steel,stainless steel,Hastelloy®,titanium
Distillation Type
Extractive and azeotropic multicomponent
Operating Pressure
Vacuum,atmospheric,or pressure
Automation
Turnkey system
Solvent Separation
Water-soluble solvents,multiple-solvent mixtures
Heat Recovery
Included to minimize operating costs
Column Internals
Random packing,structured packing,valve trays

Operating Characteristics


Working mechanism
Solvent separation and purification
Batch vs. continuous operation
Batch / Continuous
Pressure type
Vacuum / Atmospheric / Pressure
Heat recovery
Yes,to minimize operating costs
Pre-assembly
Skid-mounted
Design flexibility
Customizable for space constraints

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Typical application
Chemical / Pharmaceutical / Specialty industries

Custom Options


Control panel type
HMI / Touchscreen / PLC
Integration possibilities
Compatible with existing systems
Pre-assembly options
Skid-mounted / Field-erected
Material selection
Carbon steel / Stainless steel / Alloys
Design approach
3D design
Solvent separation method
Continuous / Batch process
