Industrial fruit juicer for high capacity processing

Optimize your extraction process with industrial-grade juicing that ensures high-efficiency liquid separation and waste reduction, tackling fibrous materials and viscous contents with precision.

Extracts and Separates Juices from Fruits and Vegetables

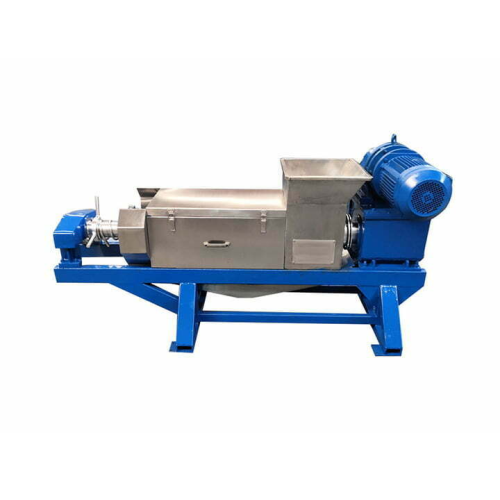

The Twin Screw Juice Extractor from Taizy Machinery is engineered for high-efficiency juicing in industrial applications. Its dual-screw mechanism enhances the extraction of juices from high-fiber fruits and vegetables, ensuring minimal waste and optimal throughput. Capable of processing up to 10 tons per hour, it integrates seamlessly into continuous food processing lines. Designed with stainless steel for robust corrosion resistance, it is suitable for various applications, including pomegranate, apple, and vegetable juicing, as well as waste residue processing and herbal extraction. The machine’s advanced spiral and filtration system ensures efficient separation, while the PLC controls enable easy automation and monitoring. With options for customization based on specific processing requirements, it provides comprehensive engineering support to adapt to unique production needs. Its efficient design offers reduced energy consumption and simplified maintenance, equipped with easy-to-clean components, making it a valuable asset for juice processing plants and environmental industries.

Benefits

  • Enhances juice yield with efficient fiber separation, reducing material waste.
  • Decreases operational costs by lowering energy consumption through optimized screw design.
  • Adapts to diverse juicing needs with customizable configurations for various fruit and vegetable types.
  • Ensures durable, long-term use in corrosive environments with high-grade stainless steel construction.
  • Facilitates seamless integration and automation in production lines with PLC-controlled operations.

General


Applications
Biogas residue,Waste residue processing,Herbal extraction,Environmental protection industrials,Vegetable juices,Kitchen waste processing,Waste dehydration,Fruit juices
End products
Jujube juice,Fermented grape skin extract,Composting biogas residue,Pomegranate juice,Pear juice,Apple juice,Pressed plant leaves residue,Dehydrated market waste,Ginger extract,Dehydrated kitchen waste,Vegetable waste pellets,Sea buckthorn juice,Herbal extracts,Blueberry juice,Aloe extract
Steps before
Purification,Drying,Washing,Sorting,Crushing
Steps after
Filtering,Packaging,Sterilization,Storage,Labeling
Input ingredients
apples,oranges,grapes,pears,lemons,pomegranate,grape skin residue,ginger,spinach,rubber,Chinese herbal medicine,winter jujube,sea buckthorn,berries,cabbage,melon,aloe,Chinese medicine residue,sugar cane,plant leaves,vegetables,jujube,sweet potato,potato,plant roots,peony,rose,copra,tea leaves residue,cassava,slag,coffee residue,corn husk,fish carp,shrimp residue,chicken slag,kitchen waste,domestic garbage,vegetable market waste,fermented food waste,biogas residue,pig manure,cow dung,duck dung,waste residues,flowers
Output ingredients
juice,pomace,sludge residue,cleaner juice
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Capacity
200kg/h–10t/h
Capacity
0.2–50t/h
Power
4–55 KW
Screen aperture
1.5mm
Rotation speed of screw
5–17 r/min
Hydraulic power
1.5–2.2 KW
Weight
230kg–12000kg
Diameter of screw
270mm–860mm
Model
DZY-5–ZKY-T6
Size
1950*510*740mm–8300*1500*2550mm
Material
Stainless steel
Material type
Fruits and vegetables

Operating Characteristics


Working Mechanism
Twin Screw / Single Screw
Automation Level
Manual / PLC
Batch vs. Continuous Operation
Continuous
Cleaning Method
CIP / Manual
Solid-Liquid Separation
Yes
Pressure Adjustment
Hydraulic / Manual
Energy Efficiency
Variable

Material Compatibility


Density/particle size
0.5–2.5 g/cm³

Physical Characteristics


Machine footprint
Varies by model,e.g.,4550x960x1500 mm for DYZJ-5
Screw diameter
Varies by model,e.g.,420 mm for DYZJ-5
Weight
Varies by model,e.g.,2700 kg for DYZJ-5
Feed method
Hopper feed
Screw rotation speed
Varies by model,e.g.,5-12 r/min for DYZJ-5
Discharge method
Automatic
Material
Stainless steel

Custom Options


Control panel type
Touchscreen / PLC
Discharge method
Manual / Automatic
