Industrial crusher for medium- to heavy-duty applications

Enhance efficiency in material size reduction operations with robust crushing capabilities designed for demanding industrial processes, ensuring consistent and reliable output across a variety of challenging materials.

Crushes and Reduces Material for Processing

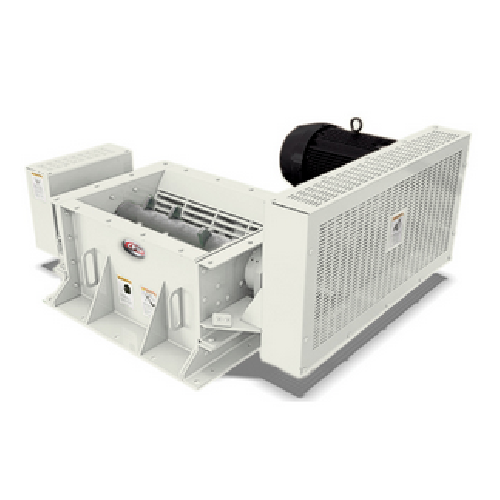

The Titan Crusher from CPM is engineered for robust material crushing and size reduction across various industries, including animal feed, oilseed processing, and biofuel production. Featuring a 6-inch diameter crusher shaft with tungsten carbide hardfaced lugs, it delivers high torque at low speeds for efficient, continuous operation. Its carbon steel construction and split grids ensure durability and reliability in demanding environments. The Titan Crusher is available in two sizes—24 x 24 and 24 x 36—and offers options such as top- or front-load hoppers and roller chain parallel drive for enhanced integration into existing production lines. With features like electronic shear pin jam protection and belt drive systems, it ensures minimal downtime and easy maintenance. Customizable configurations and engineering support are available to meet specific processing needs.

Benefits

  • Maximizes operational efficiency with continuous, heavy-duty processing capabilities.
  • Enhances product consistency with precise material size reduction.
  • Minimizes maintenance disruptions with easy access side grids and electronic jam protection.
  • Integrates seamlessly into existing lines with flexible loading and drive options.
  • Ensures long-term durability with robust carbon steel construction.

General


Applications
Aquaculture,Animal feed,Ethanol,Pet food,Hemp,Food industry,Oilseed processing,Hops,Rendering,Biomass
End products
Processed meat by-products,Hemp fiber,Processed cornmeal,Processed soybean meal,Wood pellets,Crushed animal feed,Fish feed pellets,Crushed hop pellets,Pet food kibble,Ethanol feedstock
Steps before
Particle Size Reduction,Oilseed Preparation,Pelleting
Steps after
Weighing,Bagging,Packaging
Input ingredients
medium-duty materials,heavy-duty materials
Output ingredients
crushed materials
Market info
CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.

Technical Specifications


Crusher shaft diameter
6 inches
Tungsten carbide hardfaced lugs
Yes
Torque
High torque at low speed
Construction material
Carbon steel
Grid dimensions
24 x 24 and 24 x 36
Shaft seal type
Lip seal with air purge and oil cooling or bath provisions
Drive type
Belt drive

Operating Characteristics


Crushing application type
Medium- to heavy-duty
Crushing mechanism
6-inch diameter crusher shaft with tungsten carbide hardfaced lugs
Torque performance
High torque at low speed
Grid removal access
Side access
Protection from jamming
Electronic shear pin
Operation type
Batch / Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Crusher shaft diameter
6 inches
Material Construction
Carbon steel
Crusher frame
Half-inch wall steel frame
Dimensions
24 x 24 and 24 x 36
Shaft Seal
Lip seal shaft with air purge and oil cooling or bath options
Drive Type
Belt drive

Custom Options


Loading types
Top-load / front-load hopper
Drive type
Belt drive / Roller chain parallel drive
Flywheel protection
Outboard flywheel protection
Shaft sealing
Lip seal shaft with air purge and oil cooling/bath
