Ice cream extrusion system

Optimize your ice cream production with a versatile system designed for efficient extrusion, shaping, and hardening, enhancing product consistency and minimizing energy consumption across a variety of end-products.

Extrudes and Shapes Ice Cream Products

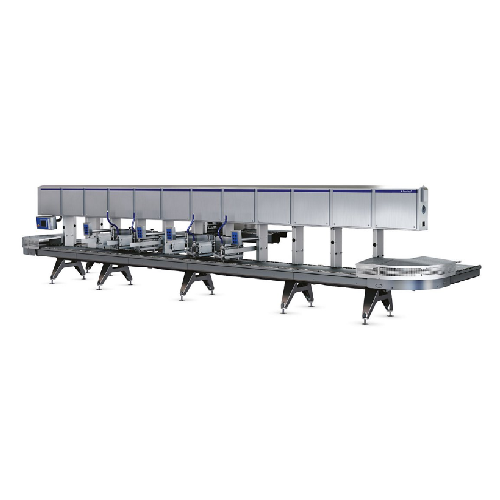

The Tetra Pak Extrusion Tunnel A3 is a versatile solution engineered for high-throughput ice cream production. This system excels in precision-controlled extrusion, shaping, and filling, accommodating a vast array of product types such as ball top cones and ice cream sandwiches. Capable of producing up to 43,200 units per hour, it features a modular and flexible design to seamlessly integrate into your current production line. Equipped with advanced servo technology and an automatic stick inserter, it ensures consistent product size and enhances food safety by minimizing manual handling. The double fan setup optimizes hardening efficiency while reducing energy consumption. With options for dehumidification and a variety of decoration and shaping modules, the A3 is adaptable for diverse ice cream innovations. Robust stainless steel construction ensures compliance with strict hygiene standards, facilitated by easy-cleaning features to maintain operational efficiency.

Benefits

  • Increases production efficiency with high-speed operation, achieving low cost per product.
  • Enhances product consistency and quality through precision extrusion and servo cutting, minimizing deviations.
  • Supports product diversity with modular design, enabling quick changeovers and customization.
  • Minimizes manual handling and contamination risk with automatic stick inserter, boosting food safety.
  • Optimizes energy use with efficient double fan setup, reducing operational costs.

General


Applications
Logs,Wafer cups,Sandwiches,Slices,Candy bars,Desserts,Ice cream,Cakes,Bite-sized products,Cones
End products
Ice cream logs with nut inclusions,Bite-sized chocolate-coated ice cream pieces,Chocolate-coated ice cream bars,Fruit-flavored wafer cups with ice cream,Ice cream cakes with fruit filling,Vanilla ice cream slices,Ice cream sandwiches with chocolate wafers,Candy bar with ice cream center,Ball top ice cream cones
Steps before
Extrusion,Shaping,Filling,Decorating
Steps after
Hardening,Packaging,Stick insertion,Transfer to downstream equipment
Input ingredients
ice cream mixture,sticks,wafer cups,chocolate compound,caramel,ripple/fruit sauce
Output ingredients
ball top cones,ice cream sandwiches,wafer cups,candy bars,ice cream cakes,ice cream logs,ice cream slices,bite size ice cream,ice cream stick products
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
Up to 43,200 products/hr
Product Types
Ice cream sticks,sandwiches,cones,wafer cups,candy bars,slices,bite size,cakes,logs
Automation
High speed operation,automatic stick inserter
Design
Modular design
Cutting Accuracy
Standard deviation below 1%
Energy Efficiency
Double fan set-up for efficient hardening
Switching Flexibility
Easy switch between different product types
Cleaning
Easy cleaning
Product Loss Minimization
Efficient start-up process design
Product Release
Controlled product release system

Operating Characteristics


Working Mechanism
Extrusion,shaping,filling,decorating,hardening
Integrated Steps
Extrusion,shaping,filling,decorating,hardening
Automation Level
PLC controlled
Product Versatility
Modular design allows easy product changeover
Batch vs Continuous Operation
Inline Continuous
Tray Tunnel System
Designed for efficient hardening
Cooling Efficiency
Double fan setup with cooled air circulation
Cleaning Method
Easy cleaning due to modular design
Start-up Process Design
Ensures hygienic production setup
Energy Efficiency
Low power consumption during hardening
Changeover Time
Easy switch between different product types

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless Steel
Biological compatibility
Food-grade materials
Cleanability
Easy to clean surfaces

Product type Characteristics


Product Types
Cones,sandwiches,cakes,logs,etc.

Physical Characteristics


Machine Footprint
Varies with module configuration
Tray Size
Varies
Modular Design
Yes
Worktable-Equipment Interface
Standardized
Double Fan Set-Up
Yes
Automatic Stick Inserter
Yes,up to 200 sticks/minute/lane
Servo Cutter
Yes
Internal Cladding
Stainless Steel,fully welded
Product Release System
Controlled release

Custom Options


Modular design
Adaptable to various needs,changeover flexibility
Tray size and equipment placement
Variable layout and placement on the worktable
Dehumidifier option
Extended run time with humidity control
Add-on and exchange modules
Broad range of ice creams production
Special hardening trays
For flat top cones,cups,and boxes
Internal cladding
Insulated housing with stainless steel cladding
Large inclusions with Tetra PakĀ® Extrusion Wheel
Handles up to 25 mm inclusions
Tetra PakĀ® Decoration Depositing Unit
Advanced decoration options
