Hydrocarbon extraction system for cannabis extraction
Achieve high-efficiency extraction with precise solvent control, optimized for producing a wide range of cannabis concentrates while ensuring unparalleled purity and safety standards.

Extracts and Processes Hydrocarbon-Based Concentrates

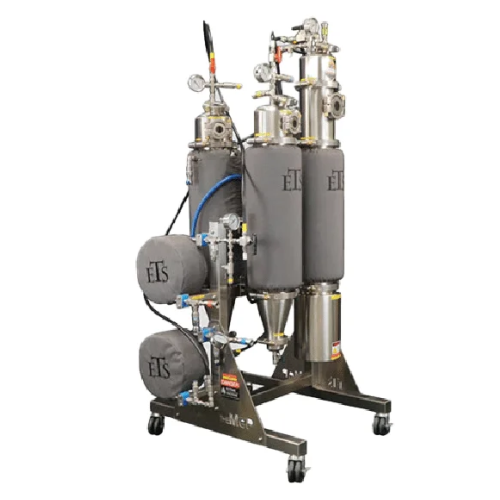

The MEGA-miniMeP from ExtractionTek Solutions is a modular hydrocarbon extraction system engineered for cannabis and hemp concentrate producers. This closed-loop machine stands out with its ability to utilize propane, butane, or blended solvents, offering versatility across a range of extractions like shatter, wax, and live resin. With a material capacity of 20 liters, it processes up to 17.5 pounds per hour, making it ideal for high-throughput operations. The system’s design incorporates jacketed components to allow precise temperature control, crucial for optimizing extraction quality. The MEGA-miniMeP is PLC-controlled, facilitating seamless integration into existing workflows with minimal footprint, thanks to its compact 9-square-foot size. Constructed with U.S. Steel and high-quality components, it’s built to withstand rigorous use, while adhering to strict safety standards, including ASME and NFPA certifications, ensuring compliance across various operational jurisdictions.
Benefits
- Enhances product diversity with flexibility to use multiple solvents.
- Optimizes extraction quality through precise temperature control.
- Increases output efficiency, processing up to 17.5 pounds per hour.
- Fits existing setups without costly infrastructure changes.
- Ensures operational safety with compliance to industry standards.
- Applications
- Essential oils,Cannabis,Hemp,Concentrates
- End products
- Shatter,Terpenes,Cbd concentrates,Live resin,Propane hash oil (pho),Crumble,Hemp oil,Wax,Distillate,Cannabis extracts,Butane hash oil (bho),Full-spectrum cbd oil,Cannabis oil tinctures,Isolate powder
- Steps before
- Material Preparation,Solvent Selection,Cannabis Grinding
- Steps after
- Concentration,Product Formulation,THC Remediation,Product Packaging
- Input ingredients
- cannabis,butane,propane,blended solvents
- Output ingredients
- concentrated retail products,cannabis concentrates
- Market info
- Root Sciences is known for providing high-quality extraction, distillation, and other processing equipment for the cannabis and hemp industries, offering solutions for creating purified concentrates and extracts, emphasizing efficiency and innovation.
- Capacity
- 20 L
- Processing Rate
- 17.5 pounds per hour
- Size
- 9 square feet (3’x3’)
- Solvent Type
- Propane,Butane,Blended solvents
- Temperature Adjustment
- Adjustable
- Working mechanism
- Closed-loop hydrocarbon extraction
- Temperature control
- Adjustable extraction temperature
- Solvent compatibility
- Propane,Butane,Blended solvents
- Footprint size
- 9 square feet (3’x3’)
- Material capacity
- 20 liters
- Processing capability
- Up to 17.5 pounds per hour
- Compliance standards
- C.R.N.,ASME Section VIII,NFPA 1
- Batch vs. continuous operation
- Batch
- Designed for
- Concentrated retail products
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Footprint
- 9 square feet (3'x3')
- Solvent Compatibility
- Propane / Butane / Blended
- Recovery Pump Solutions
- Multiple options
- Temperature Parameters
- Adjustable
- Control Panel Type
- Available upon request
- Integration Capabilities
- Extraction room accommodation
- Footprint Customization
- Compact 9 sq ft (3’x3’)
- Material Quality
- U.S. Steel
