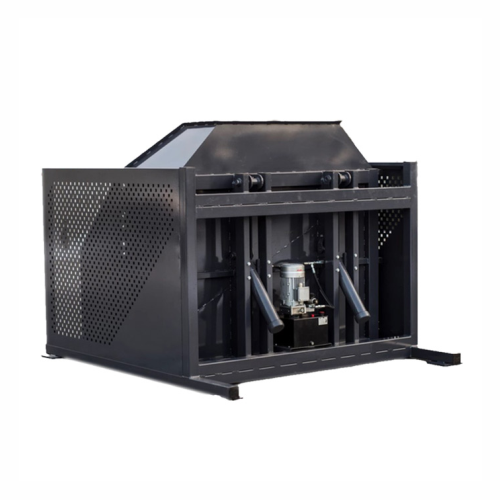

Hydraulic box tipper for pallets

Streamline your material handling with precision and safety by integrating this hydraulic tipper, designed to efficiently empty and manage heavy pallets and jumbo boxes, enhancing operational flow and minimizing manual labor.

Efficiently Empties and Tips Jumbo Boxes

The Hydraulic Box Tipper from Kronitek enhances your processing line by efficiently handling jumbo boxes up to 700 kg with precision. Its high-class hydraulic power unit enables remote control for seamless lifting, lowering, and tipping of contents. This equipment excels in food, fruit, and vegetable processing, adeptly managing solids such as carrots, potatoes, and cabbage. Operating at a productivity of approximately 25 cycles per hour, it integrates into various processing lines, supporting manual and continuous operations. The tipper’s corrosion-resistant design ensures longevity, while safety shields and a wired control panel enhance user safety and convenience. Ideal for food processing companies, vegetable and fruit processing facilities, and industrial kitchens, the tipper is a versatile asset for improving efficiency and workflow.

Benefits

  • Increases operational efficiency by handling up to 25 cycles per hour.
  • Enhances user safety with remote-controlled operation and protective safety shields.
  • Boosts workflow flexibility with multi-directional tipping capability.
  • Supports smooth integration into existing lines with continuous operation mode.
  • Provides reliable performance with a robust, corrosion-resistant build.

General


Applications
Potato,Salads,Pet food,Fruits,Cabbage,Cheese,Apple,Vegetables,Mushrooms,Sauerkraut,Onion,Carrots
End products
Sliced onions,Diced potatoes,Sliced apples,Sauerkraut packs,Grated cheese,Processed mushrooms,Vegetable salads,Pet food mixes,Carrot sticks,Chopped cabbage
Steps before
Transporting,Loading,Sorting
Steps after
Washing,Slicing,Dicing,Packing
Input ingredients
jumbo boxes,pallets,vegetables,fruits
Output ingredients
emptied boxes,emptied pallets
Market info

Technical Specifications


Productivity
25 cycles/h
Nominal lifting capacity
1800 kg
Dimensions (L/W/H)
240x260x180 cm
Weight
1300 kg
Installed power
3 kW / 7.5 A
Power supply
3x380V+N+PE
Control panel type
Wired
Maximum pallet base dimensions
100 cm x 120 cm
Maximum pallet height
100 cm
Maximum weight
700 kg

Operating Characteristics


Lifting mechanism
Hydraulic
Control method
Remote (wired) control
Operational direction
Straight-ahead / Right / Left
Safety features
Mesh shields
Operating cycles
25 cycles/h

Material Compatibility


Corrosive resistance (e.g. acids)
Yes

Product type Characteristics


Container type
Jumbo Boxes / Pallets

Physical Characteristics


Machine footprint
240x260x180 cm
Maximum base dimensions
100 cm x 120 cm
Maximum height
100 cm
Weight
1300 kg
Nominal lifting capacity
1800 kg
Discharge directions
Straight-ahead,to the right,to the left

Custom Options


Control panel type
Wired control panel
Discharge method
Three-directional discharge
Safety features
Mesh shields
