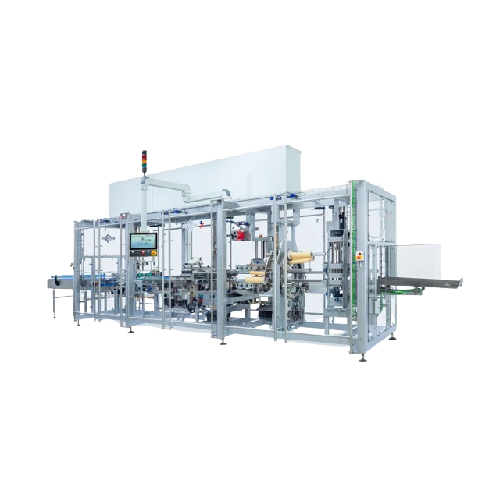

Horizontal stretch-film wrapping system for frozen food

Optimize your packaging line with a high-speed solution that securely wraps products in pre-stretched film, enhancing transport stability and reducing energy requirements compared to traditional shrink wrapping methods.

Wraps and Secures Products with Pre-Stretched Film

The FW200 Horizontal Stretch-Film Wrapper from Meypack is a robust solution tailored for industries requiring efficient and secure packaging, especially in food, beverage, and chilled product sectors. Utilizing a servo-driven paddle chain system, this wrapper erects, stacks, and groups products before tightly wrapping them in pre-stretched film. The continuous, high-speed operation can achieve up to 60 film packs per minute without the use of additional heating, optimizing energy efficiency.

Ideal for frozen pizzas, ready-to-eat meals, and liquid containers, the FW200 can easily integrate into existing production lines with its PLC-controlled automation and optional remote monitoring. The electrically heated thermal knife ensures clean and precise film cutting, while the easily removable film, with optional laser perforation, facilitates quick access at point of sale.

Constructed for durability and hygiene, the system is available in stainless steel configurations, catering to chemical compatibility needs. With Meypack’s engineering support, customizations such as adjustable stretch ratio and different film width options can be offered to meet specific production requirements.

Benefits

  • Enhances packaging security by using pre-stretched film for stable transit.
  • Saves energy with no need for external heat sources in the wrapping process.
  • Increases operational efficiency with up to 60 packs per minute throughput.
  • Simplifies end-user convenience with an Easy Opening System and tear-off strip.
  • Customizable design options ensure seamless integration into diverse production lines.

General


Applications
Food,Personal care,Home,Beverage,Tissue,Lubricants,Paper,Corrugated,Chilled products,Frozen products
End products
Liquid soap bottles,Shampoo containers,Frozen pizza,Toilet paper rolls,Facial tissue boxes,Fresh juices,Ice cream,Packaged salads,Motor oil containers,Ready-to-eat meals,Corrugated cardboard boxes,Detergent bottles
Steps before
Erecting,Stacking,Grouping
Steps after
Packing,Transport
Input ingredients
folding box,cartons,lying products,standing products
Output ingredients
film packs,collated products,packaged units
Market info
OCME, part of Aetna Group Italy, is renowned for manufacturing innovative, high-quality packaging and material handling solutions, including filling, palletizing, and conveying systems, with a strong reputation for reliability and technological advancement in industrial sectors.

Technical Specifications


Speed
Up to 60 cycles per minute
Film Type
Pre-stretched film
Automation
Servo-driven
Cutting System
Continuous with thermal knife
Film Application
Two to three wraps around product
Film Width
Only one width for all formats
Product Infeed
Paddle chain system
Output Rate
Up to 60 film packs per minute
Laser Perforation Option
Easy Opening System

Operating Characteristics


Working mechanism
Horizontal stretch-film wrapping
Integrated steps
Erecting,stacking,grouping
Film wrapping operation
Continuous with pre-stretched film
Automation level
Servo-driven
Film pack output
Up to 60 packs per minute
Product collating method
Without heat

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Sensitivity to heat
No external heat (unlike shrink wrapping)
Product orientation
Lying and standing products
Product type
Food,frozen or chilled products

Physical Characteristics


Compact footprint
Yes
Machine footprint
Compact
Control panel type
Touchscreen
Discharge method
Continuous

Custom Options


Control panel type
Semi-automatic / HMI
Integration possibilities
Seamless with cartoning machine
Easy Opening System
Laser perforation system
Film width adaptability
Single width for all formats
Product infeed system
Servo-driven paddle chain
Stretch ratio
Adjustable
Film cutting system
Electrically heated servo-driven knife
