High-volume nucleic acid extraction system

Effortlessly handle large sample volumes with precision and consistency, removing labor-intensive manual extractions to streamline your nucleic acid purification processes.

Processes High-Volume Nucleic Acid Extractions

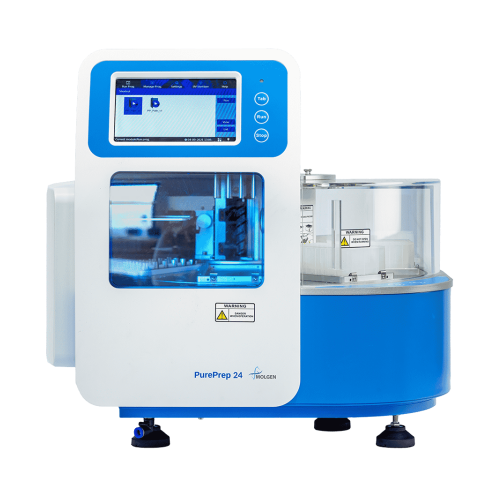

The PurePrep 24 from LabTIE is a medium-throughput benchtop nucleic acid purification system designed for high-volume sample processing. Utilizing magnetic bead-based separation technology, it ensures precise purification without cross-contamination, crucial for genomic research and clinical diagnostics. The system processes up to 24 samples with volumes reaching 10,000 µL, integrating seamlessly into laboratory workflows with its touchscreen interface and customizable programs. The PurePrep 24 operates efficiently with any bead-based protocol and is optimized for compatibility with PurePrep Extraction Kits, making it ideal for applications like cell-free DNA extraction, tissue sampling, and pathogen identification. Equipped with UV lamp sterilization and accurate temperature control, the system is reliable for consistent and reproducible results.

Benefits

  • Ensures contaminant-free results with magnetic bead-based purification, eliminating cross-contamination risks.
  • Saves time and reduces manual labor with automated, reproducible protocols.
  • Adapts to various protocols with an open system design, increasing flexibility.
  • Maintains sample integrity with precise temperature control and UV sterilization.
  • Accommodates high-volume needs, processing up to 24 samples at once.

General


Applications
Biotech industry,Animal diagnostics,Molecular biology,Nucleic acid purification,Environmental testing,Genomic research,Agbio solutions,Clinical diagnostics
End products
Cell-free dna fragments,Clinical diagnostic samples,Environmental dna/rna extracts,Plant dna extracts,Animal diagnostic test samples,Tissue dna/rna samples,Pathogen dna/rna samples
Steps before
Sample Preparation,Sample Collection
Steps after
Analysis,Storage,Data Recording
Input ingredients
samples with low DNA concentration,circulating cell-free DNA,beads,PurePrep Extraction Kits,working volumes up to 10,000 µL
Output ingredients
purified nucleic acids,high-quality DNA,consistent results
Market info
Molgen is known for manufacturing customized engineered-to-order (ETO) equipment, specializing in tailored solutions for complex industrial needs. Their expertise lies in innovative engineering, delivering high-quality, precise, and reliable machinery that meets specific client requirements.

Technical Specifications


Sample Capacity
1-24 samples per run
Working Volume
1,000 – 10,000 µL
Processing Time
30 – 60 minutes
Magnetic Bead Technology
Yes
Cross-Contamination
No
Temperature Control
±1°C
System Compatibility
Open system
Dimensions (W x D x H)
560 mm x 620 mm x 500 mm
Weight
54 kg
Automation
Touchscreen Interface
UV Sterilization
Yes

Operating Characteristics


Working mechanism
Magnetic bead-based separation
Integrated steps
Binding,mixing,washing,and elution
Automation level
Fully automated with touchscreen interface
Cross-contamination prevention
UV lamp sterilization
Batch vs. continuous operation
Batch processing

Material Compatibility


Biological compatibility
Yes
Cleanability
CIP / Manual
Density/particle size
0.5–2.5 g/cm³

Physical Characteristics


Machine footprint
560 mm (Width) x 620 mm (Depth)
Machine height
500 mm
Machine weight
54 kg
Sample capacity per run
1-24 samples
Working volume
1,000 – 10,000 µL
Control panel type
Touchscreen interface
