High volume forming solution for poultry, pork, and vegetarian products

Optimize your production with a robust forming solution designed for precise portioning and high-speed operations, ensuring consistent quality across poultry, pork, and plant-based products while minimizing waste and operational costs.

Forms and Portions Protein and Vegetarian Products

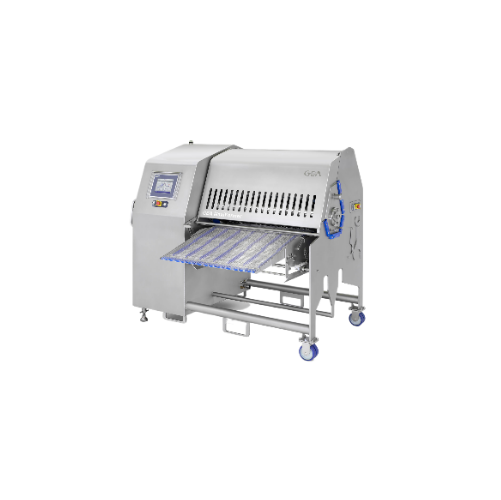

The GEA MaxiFormer from GEA is engineered to transform the production of poultry, pork, and plant-based products through its patented drum forming technology. This advanced machine applies the step-filling technique, enhancing weight accuracy while maintaining product structure. It’s ideal for producing chicken nuggets, pork cutlets, and vegetarian patties with minimal wastage. Capable of operating at up to 220 strokes per minute, the MaxiFormer integrates seamlessly into high-speed, continuous production lines. The 1000mm-wide drum option maximizes belt loading efficiency, while the high-pressure air knock-out system reduces air consumption by 40%. The system includes automated cleaning with the MaxiClean, cutting water use by 62%, ensuring minimal downtime and maintenance. Fully configurable, it supports various cavity designs for diverse product profiles, backed by GEA’s engineering expertise.

Benefits

  • Optimizes production efficiency with high-speed forming and precise portion control.
  • Reduces operational costs by using 40% less air and saving up to 62% in water consumption.
  • Minimizes product wastage with patented step-filling technology maintaining product integrity.
  • Enhances versatility with customizable drum sizes for a variety of product profiles.
  • Streamlines maintenance and cleaning, reducing downtime with the automated MaxiClean system.

General


Applications
Seafood,Pork,Vegetarian alternatives,Plant-based products,Meat replacement,Poultry
End products
Chicken nuggets,Pork cutlets,Plant-based patties,Seafood cutlets,2d chicken filets,Vegetarian cutlets,3d chicken filets
Steps before
Grinding,Chilling
Steps after
Packing,Coating
Input ingredients
poultry,pork,plant-based ingredients,chicken nuggets mixture,3D chicken filet mixture,chicken filet mixture,pork cutlet mixture
Output ingredients
formed poultry products,formed pork products,formed plant-based products,chicken nuggets,3D chicken filets,chicken filets,pork cutlets
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Capacity
220 strokes/minute
Belt width
600 mm
Belt width
1000 mm
Max. capacity
220 strokes/minute
Speed
3 to 22 meter/minute
Min. product height
4 mm
Max. product height
18 mm
Automation
Touch-screen control
Compressed Air Usage
Uses 40% less air
Footprint Dimension L x W x H
2256x1856x2022 mm
Footprint Dimension L x W x H
1856x1856x2022 mm
Water Consumption
Saves up to 62% water

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Inline Continuous
CIP/SIP
CIP
Changeover time
Minimal
Cleaning method
Easy access for maintenance and cleaning
Energy efficiency
High due to optimal belt usage

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
2256x1856x2022 mm (600 mm version) / 1856x1856x2022 mm (1000 mm version)
Max product height
18 mm
Min product height
4 mm
Drum design
Unique spoke drum with rigid structure
Drum width
600 mm / 1000 mm

Custom Options


Control panel type
Touch-screen control
Drum size options
600mm / 1000mm
Integration possibilities
Seamless systems integration with upstream and downstream processes
Customizable drum cavities
3D or 2D custom cavities
System modules
MaxiDrum,MaxiStorage,MaxiClean
