High-volume cheese cutting solution

Achieve unmatched precision in cheese processing with a high-volume cutting solution designed for efficient shredding, slicing, and dicing, ensuring optimal hygiene and minimal waste.

Cuts, Shreds, and Slices Cheese Efficiently

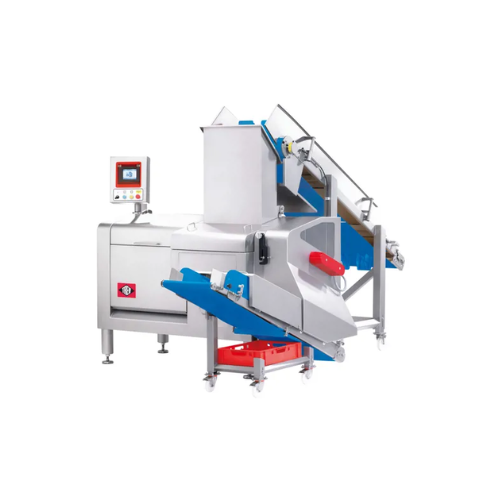

The CASAN Cheese Cutting and Shredding Machine from Marel offers unparalleled precision for high-volume cheese processing. Specially designed for cheese manufacturers, food processors, and pizza production facilities, it integrates cutting-edge sensor technology to deliver uniform cheese cubes, sticks, strips, and shredded cheese with minimal waste. The CASAN uses fully automatic loading and a spacious cutting chamber that efficiently processes large volumes, including stacked Euroblocks, enhancing productivity and versatility. With a maximum output of 3.0 tons per hour and controls for fine-tuning blade frequency and hydraulic feed pressure, it ensures consistent quality and energy efficiency. Engineered with a focus on hygiene, the CASAN features an open design for easy cleaning and a unique hygiene cylinder to prevent contamination. The machine’s compact footprint allows simple integration into existing production lines, and it supports high-speed, continuous operation. Additionally, Marel provides robust global service support and customization options to meet specific processing needs, ensuring operational excellence and sustainability.

Benefits

  • Enhances productivity with high-speed, continuous operation.
  • Minimizes waste and maximizes raw material use through sensor-based precision cutting.
  • Lowers energy costs with optimized hydraulic pressure control.
  • Improves hygiene and food safety with an open design for easy cleaning.
  • Seamlessly integrates into existing production lines with a compact footprint.

General


Applications
Convenience sector,Cheese,Pizza production
End products
Cheese cubes,Pre-packaged cheese for convenience foods,Cheese slices for pizza,Cheese strips,Cheese sticks,Shredded cheese
Steps before
Cheese reception,Pre-cutting,Loading
Steps after
Shredding,Slicing,Dicing,Cube formation,Stick formation,Strip formation,Packing,Labeling
Input ingredients
cheese blocks,Euroblocks
Output ingredients
shredded cheese,sliced cheese,cheese cubes,cheese sticks,cheese strips
Market info
Marel is known for its advanced food processing equipment, specializing in systems and services for poultry, meat, and fish industries. It is recognized for innovation, quality, and improving processing efficiency and sustainability.

Technical Specifications


Max. output
3.0 t/hr (6,614 lbs)
Max. cut-off length
1–50 mm (0.04"–2")
Max. blade speed
500 blade rotations/minute
Cutting chamber size
W 200 mm x H 120 mm (W 7.87" x H 4.72")
Max. infeed length
550 mm (21.65")
Housing dimensions
Length
Housing dimensions
Width with open blade box door
Housing dimensions
Height
Connecting load
9.0 kW
Gridsets
5/6/8/10/12/15/17/20/24/30/40/60 mm 0.20/0.24/0.31/0.40/0.47/0.60/0.79/0.94/1.18/1.57/2.36"
Weight
approx. 1,500 kg (3,307 lb)

Operating Characteristics


Automation level
PLC-controlled
Shredding mode
High-performance
Changeover time
Quick
Batch vs. continuous operation
Batch with Continuous Features
Cleaning method
Easy access for manual cleaning
Energy efficiency
Energy saving
Waste management
Minimized waste with residue channel

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Length
Cutting chamber size
W 200 mm x H 120 mm (W 7.87" x H 4.72")
Infeed and discharge method
Automatic loading and discharging

Custom Options


Integration possibilities
Easy integration due to small footprint
Control panel type
Sensor-based control
Discharge method
Automatic discharging options
