High-speed wafer block building device

Streamline your wafer production with this high-speed device, expertly folding and pressing layers to create uniform, cream-filled treats that delight consumers.

Folds and Presses Wafer Blocks Rapidly

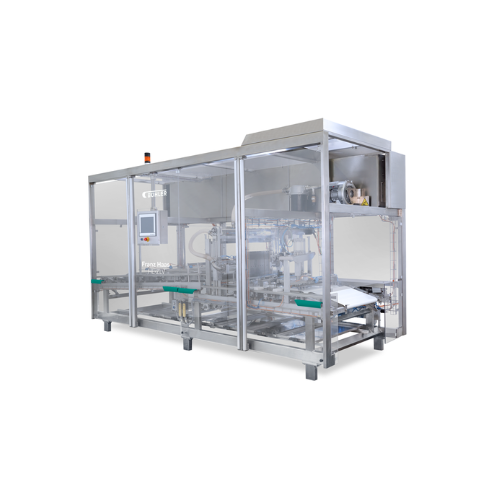

The Franz Haas HL-ZLV from Bühler Group is a high-speed solution tailored for confectionery manufacturers, wafer producers, and food processing companies. This state-of-the-art device folds and presses hollow wafer sheets into precisely structured blocks. Positioned after the spreading machine in the line, it utilizes an upper and lower belt system with a robotic arm vacuum plate to align and assemble up to 40 sheets per minute. Its robust stainless steel construction ensures optimal hygiene, while transparent polycarbonate doors provide complete visibility of the process. Operational efficiency is further enhanced with its gentle pressing mechanism, securing wafer alignment without causing damage. Designed for continuous production, this equipment is an integral part of wafer and snack bar manufacturing lines. Enhanced for productivity, it offers easy cleaning access and maintenance efficiency, ensuring minimal downtime. The HL-ZLV is configurable for specific needs, ensuring seamless integration into existing systems.

Benefits

  • Enhances production speed, enabling processing of up to 40 wafer sheets per minute for high output.
  • Maintains wafer integrity with precise pressing, eliminating damage during assembly.
  • Simplifies cleaning and reduces contamination risks with user-friendly access and hygienic stainless steel design.
  • Provides full process visibility for operators through transparent doors, improving quality control.
  • Seamlessly integrates into existing lines to streamline wafer and snack manufacturing processes.

General


Applications
Wafers,Confectionery,Baked goods,Snacks
End products
Wafer biscuits,Snack bars with wafer layers,Layer cakes with wafer sheets,Wafer blocks,Cream-filled wafer bars
Steps before
Spreading,Material Handling,Wafer Preparation
Steps after
Pressing,Cooling,Packing
Input ingredients
hollow wafer sheets,cream
Output ingredients
wafer block
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Processing Speed
Up to 40 wafer sheets per minute
Material
Stainless Steel
Visibility
Transparent Polycarbonate Doors
Pressing Force
Gentle pressing on all sides and top
Automation
Robotic arm with vacuum plate

Operating Characteristics


High-speed block building
Processes up to 40 wafer sheets per minute
Hygienic design
Stainless steel execution for high hygienic standards
Pressing precision
Precise pressing device fixes sheets without damage
Cleaning accessibility
Easy access for simplified cleaning
Production visibility
Transparent polycarbonate doors for full process visibility
Building mechanism
Fold two hollow wafer sheets spread with cream into one block
Automation level
Robotic arm with vacuum plate for top sheet placement

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
N/A
Construction Material
Stainless steel
Discharge method
Pressing and stacking
Control panel type
Transparent polycarbonate doors
Compact footprint
Yes
Capacity
40 wafer sheets per minute

Custom Options


HMI type
Transparent polycarbonate doors
Access for cleaning
Easy access
