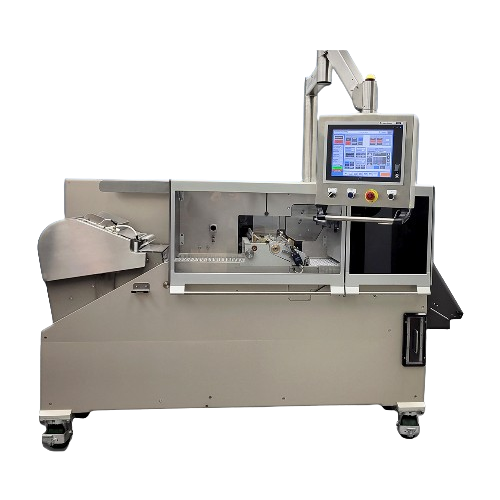

High-speed tablet ink printer

Achieve precise and high-speed printing on tablets and capsules for streamlined production and improved product identification, enhancing efficiency in your manufacturing line.

Prints Pharmaceutical Tablets and Capsules Efficiently

The IBM Ink Printing Machine from R.W. Hartnett Company revolutionizes high-speed printing for pharmaceutical and nutraceutical manufacturers. This flatbed, servo-driven system prints effectively on tablets, soft gelatin capsules, and caplets, with a remarkable capacity of over 300,000 units per hour. Employing a flood feed hopper and additional bulk hopper, the machine ensures maximum fill rates for continuous operation. Integration into your existing production line is facilitated by its Wi-Fi connectivity and quick change carrier bar tooling. Its precision print registration is managed by a servo drive system, while the option for a vision inspection system with single piece rejection enhances quality control. The machine is compliant with 21 CFR Part 11 and meets CE and UL certifications, making it suitable for regulated environments. Cleaning and maintenance are streamlined through features like an optional rubber roll cleaning system. For customization, it offers an array of options, including validation document packages and floor-level infeed bulk conveyors, ensuring the system can be tailored to specific production requirements.

Benefits

  • Enhances production efficiency with a throughput of over 300,000 units per hour.
  • Improves quality control with precise print registration and optional vision inspection.
  • Reduces setup time with quick change tooling and intuitive HMI controls.
  • Maintains regulatory compliance with 21 CFR Part 11 and CE certifications.
  • Customizable options allow seamless integration into diverse production lines.

General


Applications
Soft gelatin capsules,Pharmaceutical tablets,Caplets
End products
Ibuprofen tablets,Omega-3 soft gels,Fish oil soft gels,Cold and flu tablets,Vitamin d soft gels,Multivitamin caplets,Iron supplement caplets,Aspirin tablets,Paracetamol tablets,Calcium soft gels
Steps before
Tablet Production,Capsule Formation,Caplet Manufacture
Steps after
Inspection,Packaging,Distribution
Input ingredients
tablets,soft gelatin capsules,caplets
Output ingredients
printed tablets,printed soft gelatin capsules,printed caplets
Market info
RW Hartnett is known for designing and manufacturing precision printing and vision inspection equipment for the pharmaceutical and confectionery industries, offering high-quality, innovative solutions tailored to client needs, with a strong reputation for reliability and excellence.

Technical Specifications


Printing speed
300,000 pieces per hour
Electrical requirement
240 VAC / 30 amp/ single phase
Air requirement
90 psi @ 5 scfm
Print side
Single side
Automation
Servo drive system
Control interface
15” touch screen HMI
Connectivity
Wi-Fi

Operating Characteristics


Printing output capacity
300,000 pieces per hour
Operation type
Single-sided printing
Feeder system
Flood feed hopper
Batch documentation
Batch recording
Automation level
Servo drive system
User interface
Swingarm 15” touch screen HMI
Connectivity
Wi-Fi connectivity
Changeover flexibility
Quick change carrier bar tooling

Material Compatibility


Tablet and capsule printing
Yes
Soft gelatin caplets
Yes
Ink compatibility
Viscosity control system
Precision print registration
Servo drive system

Physical Characteristics


Discharge method
Flatbed
Feed method
Flood feed hopper
Hopper type
Bulk hopper
Control panel type
Swingarm 15” touch screen HMI

Custom Options


Control panel type
Swingarm 15” touch screen HMI
Integration possibilities
Wi-Fi connectivity
Batch recording
21 CFR Part 11 Compliant
Additional bulk hopper
Yes
Vision inspection system
Single piece rejection
Ink Viscosity System
Available
Rubber Roll Cleaning System
Available
Validation document packages
Available
