High-speed shrink wrapping for beverage packaging

Optimize end-line packaging with a high-speed solution designed to handle diverse product types and streamline your production.

Shrink Wraps and Packs Various Consumer Products

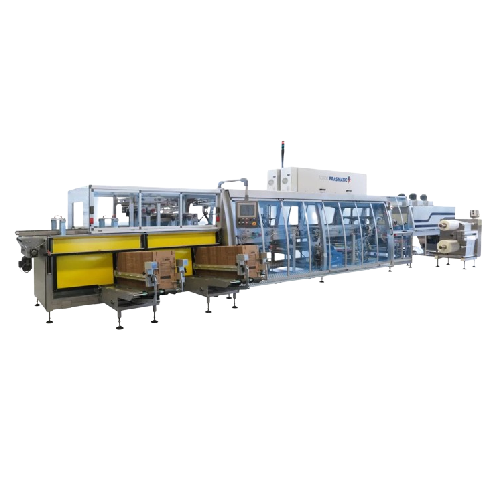

The Prasmatic TC 800 from OCME is an ergonomic and versatile shrink wrapping machine, engineered for high-speed operations across diverse industries. This equipment excels with its modular design, accommodating various packaging models including film-only, tray and film, and flat pad configurations. Ideal for packaging plastic water bottles, milk cartons, and household spray bottles, it integrates seamlessly into your production line with its automatic reel loading and format-changing capabilities.

The TC 800 supports up to 85 packages per minute, aided by its brushless servomotors for enhanced safety and precision. Durable and energy-efficient, it offers material options like partial or full stainless steel to suit specific industry needs, particularly beneficial for sectors requiring stringent hygiene standards, such as dairy. Maintenance is streamlined through intuitive HMI touchscreen control, removable film units, and retractable collating plates, ensuring minimal downtime and consistent productivity. Optional wash-down execution further enhances suitability for clean-intensive environments.

Benefits

  • Enhances production efficiency with high-speed output of up to 85 packages per minute.
  • Minimizes downtime with quick, tool-free format changeovers using electronic brushless motor control.
  • Improves operational flexibility, adaptable to various packaging models for diverse product types.
  • Ensures operator safety and ease with ergonomic design and user-friendly HMI touchscreen interface.
  • Reduces maintenance efforts through easy access to quick-seal film units and retractable collating plates.

General


Applications
Food,Personal care,Beverage,Tissue,Liquid products,Lubricants,Paper,Home,Dairy products
End products
Household cleaning spray bottles,Liquid soap dispensers,Juice cartons,Cheese packages,Granola bars,Laundry detergent containers,Engine oil bottles,Milk cartons,Toilet paper rolls,Paper towels,Facial tissue boxes,Yogurt cups,Lubricant cans,Frozen vegetable bags,Canned beverages,Shampoo bottles,Plastic water bottles
Steps before
Filling,Product Separation
Steps after
Palletizing,Depalletizing,Stretch Wrapping,Banding,Internal Logistics
Input ingredients
film reels,flat pad,tray,products for secondary packaging
Output ingredients
packs with film only,packs with flat pad and film,packs with tray and film,packs with tray only
Market info
OCME, part of Aetna Group Italy, is renowned for manufacturing innovative, high-quality packaging and material handling solutions, including filling, palletizing, and conveying systems, with a strong reputation for reliability and technological advancement in industrial sectors.

Technical Specifications


Output Capacity
Up to 85 PPM
Packaging Speed
85 packages/min
Max Reel Diameter
500 mm
Max Reel Width
720 mm
Max Reel Weight
80 Kg
Max Blank Length
1250 mm
Max Blank Width
650 mm
Blanks Magazine Capacity
400-1600 according to thickness and magazine type
Average Size Changeover Time
10 ÷ 12 min
Machine Configuration
Modular

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Inline Continuous
Changeover time
10–12 min
CIP/SIP
N/A
Cleaning method
Manual
Energy efficiency
N/A

Material Compatibility


Corrosive resistance (e.g. acids)
Partial or full stainless steel
Cleanability
Wash down execution
Density/particle size
Adjustable for various sizes

Product type Characteristics


Packaging Type
Film / Tray / Pad
Sector Suitability
Beverage / Dairy / Others

Physical Characteristics


Control Panel Type
User-friendly and wide touchscreen panel
Machine Frame
Modular,easy access for maintenance
Film Reel Positioning
Ergonomic design for easy access
Sliding Doors
Facilitate access for cleaning
Collating Plate
Retractable,pneumatically-actuated
Removable Film Unit
For quick maintenance
Stainless Steel Options
Partial or full

Custom Options


HMI Type
User-friendly and wide touchscreen panel
Machine Frame
Modular solutions with better access
Film Unit
Removable for quick maintenance
Format Change
Automatic,no tools needed
Material Execution
Partial or full stainless steel
Reel Loading
External film group for easy access
Collating Plate
Retractable for flexibility
