High-speed capsule weighing system for quality assurance

Ensure precise capsule weight monitoring and sorting with a system designed for seamless integration into your production line, enhancing quality control and reducing waste.

Weighs and Sorts Pharmaceutical Capsules

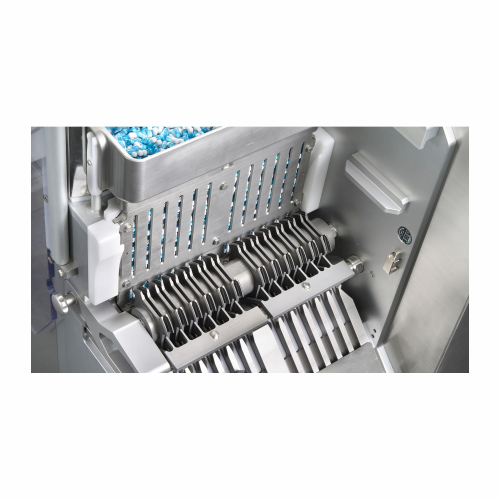

The Accura-C by Harro Höfliger is a highly precise capsule weighing system designed to enhance quality assurance in pharmaceutical manufacturing. It uses advanced weighing cells for accurate sorting and weighing of both empty and filled capsules, ensuring reliable inspection. Supporting production lines with a capacity of up to 200,000 capsules per hour, the system seamlessly connects with various capsule filling machines, offering an automatic feedback loop for optimal fill weight regulation. The Accura-C is suitable for a wide range of applications, including gelatin and vegetarian capsules containing powders or solid supplements. Its efficient design incorporates minimal setup and cleaning times, and it features integrated vibration compensation and PRP functionality for reduced manpower requirements. Constructed to meet GMP and FDA standards, the system is available with standard interfaces for IT network integration, promoting robust performance and traceability.

Benefits

  • Ensures 100% capsule weight accuracy, enhancing product integrity and compliance.
  • Seamlessly integrates into existing production lines, minimizing setup disruptions.
  • Increases production efficiency with automated fill weight regulation.
  • Reduces labor needs through person reduced production (PRP) functionality.
  • Supports diverse capsule types, accommodating market and regulatory demands.

General


Applications
Pharmaceutical capsules,Nutritional supplements,Dietary supplements
End products
Gelatin capsules,Protein powder capsules,Probiotic capsules,Multivitamin capsules,Herbal supplement capsules,Fish oil capsules,Vegetarian capsules,Mineral supplement capsules
Steps before
Filling
Steps after
Sorting,Packing,Quality Control
Input ingredients
empty capsules,filled capsules
Output ingredients
100% weighed capsules,sorted capsules,deformed capsules
Market info
Harro Hoefliger is known for its expertise in manufacturing custom, engineered-to-order packaging and production equipment, particularly for the pharmaceutical, healthcare, consumer goods, and chemical industries, with a reputation for precision, innovation, and quality engineering solutions.

Technical Specifications


Output
Up to 200,000 capsules/h
Capsule sizes
All common capsule sizes
Measuring range
0 – 2,000 mg
Measuring accuracy
± 2 mg
Automation
Automatic trend regulation

Operating Characteristics


Working Mechanism
Capsule weighing system with high performance quality inspection
Integrated Steps
In-line connection with capsule filling machine
Batch vs. Continuous Operation
Includes feedback loop for continuous operation
Automation Level
Automated trend regulation with feedback loop
Product Handling
Gentle handling during sorting of capsules
Process Reliability
High level of process reliability with multiple control units

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Capsule Sizes
All common capsule sizes

Physical Characteristics


Compact footprint
N/A
Control panel type
Standard interfaces
Discharge method
Automatic sorting of bad capsules

Custom Options


Control panel type
Standard interfaces (MES,ActiveDirectory,OPC)
Integration possibilities
In-line connection with capsule filling machines
Feedback loop
Automatic trend regulation with capsule filling machine
