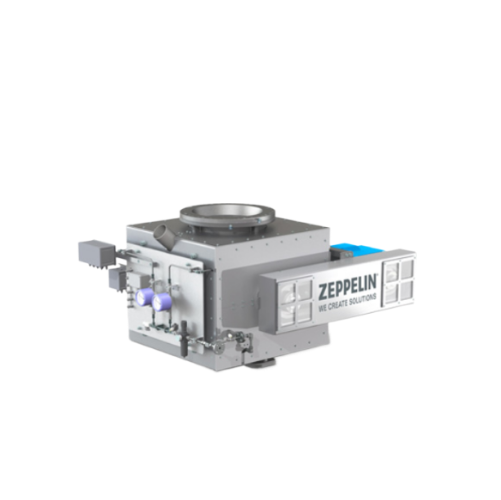

High-pressure rotary feeder for bulk material handling
Manage high-pressure bulk material distribution with precision, ensuring efficient metered feeding and minimal gas leakage in your pneumatic conveying systems.
Meters and Conveys Bulk Materials Efficiently
The CFH high-pressure rotary feeder from Zeppelin Systems is designed for precise metering and conveying of bulk materials such as pellets and powders in pneumatic systems. Its unique 12-chamber rotor with minimal gas leakage optimizes filling factors and ensures gentle material handling. With differential pressures up to 3.5 bar and throughput customization across eight size options, it caters to diverse industrial needs in plastics, rubber, food, and chemical processing. Built with high-quality cast aluminum or optional stainless steel for enhanced durability, its components like permanently lubricated bearings and low-wear sealing ensure low maintenance. The CFH feeder integrates seamlessly into production lines with its quick cleaning features, temperature controls, and rotary frequency monitoring, supporting continuous and high-pressure operations in demanding environments. Compliance with Machinery Directive and ATEX standards underscores its safety and efficiency.
Benefits
- Enhances process efficiency with precise metering and distribution of bulk materials.
- Minimizes maintenance efforts due to durable, low-wear design and components.
- Supports high-pressure operations, accommodating challenging pneumatic conveying environments.
- Offers flexible integration with customizable sizes and cleaning options for varied industrial applications.
- Ensures operational safety and compliance with ATEX and Machinery Directive standards.
- Applications
- Food industry ingredients,Pellets,Bulk materials,Plastics,Rubber industry materials,Dispersion paints,Powders
- End products
- Latex paint,Polyethylene powder,Elastomer compounds,Plastic resins,Wheat flour,Pvc powder,Cornmeal,Titanium dioxide powder,Rubber granules,Polypropylene pellets
- Steps before
- Drying,Grinding
- Steps after
- Packing,Coating
- Input ingredients
- pellets,powders,bulk material
- Output ingredients
- conveyed bulk material,discharged bulk material
- Market info
- Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.
- Size
- Eight available sizes (200–850)
- Differential Pressure
- Up to 3.5 bar (g)
- Mechanical Design Pressure
- -1.0 to 10 bar (g)
- Temperature Resistance
- -20 to 90°C,optionally up to 180°C
- Material
- High-quality cast aluminum or stainless steel
- Rotor
- 12-chamber rotor
- Gas Leakage
- Minimal due to optimized design
- Throughput
- Extremely high
- Filling Range
- High
- Seal System
- Radial,low-wear
- Flange Joints
- DIN 2501 PN10 FF or ANSI 150 lbs FF
- Sealing Gas
- Integrated leakage-gas nozzles
- Conveying System Type
- Pneumatic dense phase / dilute phase
- Differential Pressure Range
- Up to 3.5 bar (g)
- Minimal Gas Leakage
- Yes,due to optimized rotor design
- Output Range
- 200–850 (eight available sizes)
- Material Distribution
- Gentle,with optimal filling factors
- Temperature Resistance
- -20 to 90°C,optionally up to 180°C
- Bearing Lubrication
- Permanently lubricated
- Rotor Design
- 12-chamber,side-sealed
- Maintenance Level
- Low
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Declaration of incorporation
- EC type examination certificate
- Machine Sizes Available
- Sizes
- Material
- High-quality cast aluminum and stainless steel
- Housing Shape
- Identical for all CF valves
- Rotor Design
- 12-chamber side-sealed rotor
- Operational Pressure
- Differential pressure up to 3.5 bar (g)
- Temperature Resistance
- -20 to 90°C,optionally up to 180°C
- Rotor type
- Beveled / Chambering
- Sealing system
- Low-wear / Radial
- Material choice
- Cast Aluminum / Stainless Steel
- Pressure resistance
- Up to 3.5 bar (g)
- Temperature resistance
- -20 to 90°C,up to 180°C optional
- External features
- Lubricated bearings / Leakage-gas nozzles
- Quick cleaning
- Option available
- Chopper function
- Option available
- Sealing gas
- Protect bearing
- Temperature control
- Process heating
