High-performance compounding extruder

Achieve precision in compounding and pelletizing with advanced extruders that ensure high-quality output while handling diverse materials, from engineering plastics to cable compounds, optimizing your production line efficiency.

Compounds and Pelletizes Plastic and Chemical Materials

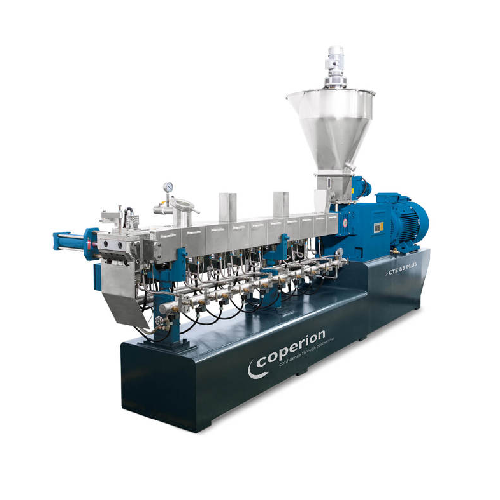

The CTE PLUS series from Coperion Nanjing offers a robust twin screw extruder solution designed specifically for the needs of small to medium-sized manufacturers in the plastics and chemical industries. These systems are distinguished by their modular design and the precision engineering of Coperion Stuttgart, ensuring reliable compounding and pelletizing of diverse materials, such as engineering plastics and cable compounds.

Utilizing closely intermeshing, co-rotating twin screws, these extruders efficiently mix, degas, and form materials into a consistent high-quality output, suitable for end-products including polycarbonate sheets, thermoplastic elastomer grips, and low smoke halogen-free cables. Each model, such as the CTE 50 PLUS, balances cost with performance, offering a specific torque of 7.2 Nm/cm³ and throughput rates from 30 kg/h to 5,000 kg/h, depending on the model size.

The CTE PLUS is adaptable, featuring flexible process section configurations and readily integrates into existing production lines with its advanced control systems ranging from simple relay controls to sophisticated PCC systems for real-time line management. Each machine adheres to strict quality standards with a Factory Acceptance Test at Coperion’s Nanjing site, ensuring dependable operation and high process safety supported by new gearboxes designed for longevity and performance. Ideal for compounding processes requiring precise formulation, this series provides significant energy efficiencies and can be tailored with TÜV CE certification for validated operations.

Benefits

  • Enhances production efficiency with modular design tailored to specific compounding needs.
  • Ensures long-term reliability through high-strength gearboxes engineered for robust performance.
  • Reduces energy consumption by optimizing motor power for various throughput demands.
  • Minimizes maintenance downtime with precision-engineered components and easy integration into existing systems.
  • Offers flexible configuration options, enabling adaptation to evolving production requirements.

General


Applications
Filling,Engineering plastics,Devolatilization,Cable compounds,Wood composites,Direct extrusion,Masterbatch,Tpe/tpr/tpv
End products
Polycarbonate sheets,Polypropylene packaging,Low smoke halogen-free cables,Thermoplastic elastomer grips,Mineral-filled polypropylene,Color concentrates for plastics,Nylon polymer extrusion,Pvc insulated cables,Polyethylene tubes,Wood-plastic decking
Steps before
Material Feeding,Mixing,Pre-heating,Ingredient Handling
Steps after
Compounding,Devolatilization,Pelletizing,Cooling
Input ingredients
engineering plastics,masterbatch,TPE/TPR/TPV materials,wood composites,PVC cable compounds,HFFR cable compounds,XLPE cable compounds,semi-conductive materials,heat sensitive materials,shear sensitive materials,soft PVC,medical compounds,EVA footwear compounds
Output ingredients
compounded plastics,compounded masterbatch,compounded TPE/TPR/TPV,compounded wood composites,compounded PVC,compounded cable materials,compounded medical compounds,compounded EVA compounds
Market info
Coperion is known for its expertise in manufacturing industrial compounding and extrusion equipment, bulk materials handling systems, and services for various industries, such as plastics, chemicals, and food processing, with a strong reputation for innovative engineering solutions and customer support.

Technical Specifications


Torque per shaft
7.2 Nm/cm³
Screw diameter
20 mm - 165 mm
Screw speed max.
400 - 600 rpm
Motor power
10 - 1200 kW
Throughput rate
10 - 5000 kg/h
Compliance,Certifications
TÜV CE certification
Process safety
High due to new gearbox
Modular design
yes
Base frame stiffness
High
Control Systems
PLC/IPC/PCC/Relay control
Configuration Flexibility
Flexible as per application
Final assembly check
3-dimensional check instrument

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Compounding efficiency
High

Physical Characteristics


Screw diameter
20 mm,35 mm,50 mm,65 mm,75 mm,96 mm,135 mm,165 mm
Screw speed max.
400/600 rpm
Machine size
CTE 20-165 PLUS
Modular design
Yes
Base frame stiffness
Enhanced
Gearbox design
New Coperion gearbox

Custom Options


Control System Type
Relay,IPC,PLC,PCC
Gearbox Exchangeability
New gearboxes exchangeable with old generation CTE's gearboxes
Certification Option
TÜV CE certification
Process Section Configuration
Modular design
