High-capacity food processor for vegetable and meat reduction

Efficiently streamline your food processing line by achieving precise size reduction of a wide range of products, from vegetables and meats to bakery and condiment pastes, ensuring consistent product quality and optimal feed throughput.

Efficiently Reduces and Processes Diverse Food Products

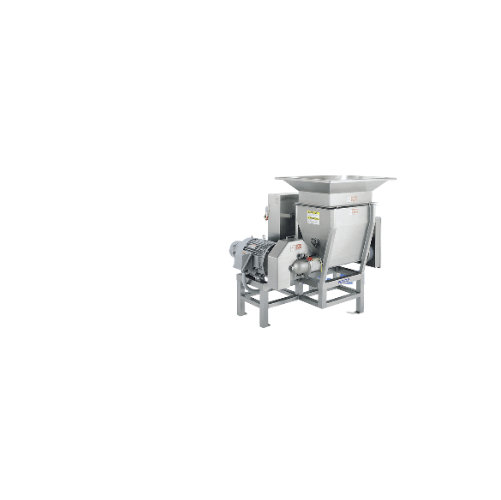

The Comitrol® Processor Model 2100 from Urschel Laboratories is engineered to address diverse food processing needs with precision. Key to its functionality is the combined operation of an agitator and screw feeder, ensuring positive feed assistance for various products, such as vegetables, meats, and bakery goods. With an available 40 or 60 HP impeller motor, supported by a 5 HP feed screw motor and a 2 HP agitator, this machine operates continuously for high-speed production lines. Stainless steel construction ensures durability and sanitation, accommodating solid or slurry products. The Model 2100 is adept at producing a range of end-products, from salmon fillets to chili paste. Its user-friendly design facilitates easy cleaning and maintenance, while the modular cutting head adapts to specific reduction needs, ensuring efficiency and versatility across multiple food processing applications.

Benefits

  • Enhances operational efficiency with continuous high-speed processing.
  • Provides versatile application support, reducing the need for multiple machines.
  • Facilitates easy integration into existing production lines with its adaptable design.
  • Minimizes maintenance time with simplified cleaning processes.
  • Increases production capacity, handling diverse food products with precision.

General


Applications
Meat and seafood products,Seaweed,Condiments and pastes,Vegetables,Bakery products,Processed meats
End products
Chicken nuggets,Chili paste,Formed turkey thigh,Spreadable ham,Salmon fillets,Salisbury steak,Garlic paste,Beef sticks,Gluten-free bread,Seaweed sheets,Biscuit rework,Ginger paste
Steps before
Purification,Grinding,Emulsification
Steps after
Sterilization,Packing
Input ingredients
vegetables,beef,poultry,seafood,chili,garlic,ginger,bean pastes,biscuit rework,bakery rework,seaweed,salmon,gluten free bread,chicken nuggets,Salisbury steak,spreadable ham product,formed turkey using thigh meat,cartilaginous material,skin material,organ material,beef sticks
Output ingredients
coarse reduction,fine reduction
Market info
Urschel is known for its expertise in precision cutting technology and manufacturing industrial food processing equipment, especially cutting machines. It has a strong reputation for quality and innovation in delivering engineered-to-order solutions for the food processing industry.

Technical Specifications


Hopper Capacity
Large
Motor Power (Impeller)
40 HP (30 kW) or 60 HP (44.7 kW)
Motor Power (Agitator)
2 HP (1.5 kW)
Motor Power (Feed Screw)
5 HP (3.7 kW)
Operation
Continuous
Construction Material
Stainless Steel
Input Size
Maximum 2-1/2" (63.5 mm) in any dimension
Dimensions
Length
Net Weight
2260 lb (1025 kg)

Operating Characteristics


Working mechanism
Agitator and screw feeder
Integrated steps
Positive feed assistance
Continuous vs batch operation
Continuous operation
Cleaning method
Easy cleanup and maintenance
Feeding method
Large hopper with impeller motor
Motor power options
40 HP or 60 HP impeller motor

Material Compatibility


Cleanability
Stainless steel construction
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
Up to 2-1/2" (63.5 mm) max input size

Physical Characteristics


Machine Length
69.04" (1754 mm)
Machine Width
65.00" (1651 mm)
Machine Height
70.24" (1784 mm)
Net Weight
2260 lb (1025 kg)
Feed Hopper Size
Large
Material
Stainless Steel
Feed Method
Agitator and Screw Feeder
Motor Power Options
40 or 60 HP (30 or 44.7 kW)
Impeller Diameter
6" (152.4 mm)

Custom Options


Motor Power Options
40 HP or 60 HP
Cutting Head Size
6" (152.4 mm) diameter
Material Construction
Stainless Steel
Feed Assistance
Agitator and Screw Feeder
