Heavy-duty crusher for 6-inch material

Efficiently tackle challenging crushing tasks with our solution designed to process material up to 6 inches, ensuring optimal size reduction for seamless integration into high-speed continuous operations.

Crushes and Reduces Solid Material Sizes

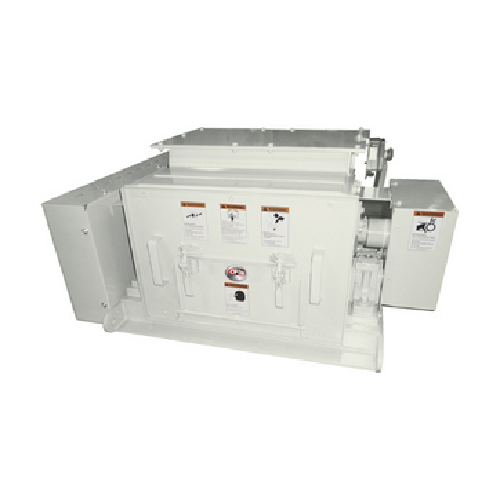

The Heavy-Duty Crusher Head from CPM is crafted to tackle heavy-duty crushing tasks, featuring a robust carbon steel construction and a rotor shaft mounted on roller bearings within a split pillow block housing. Ideal for industries such as animal feed, ethanol, and biomass, this crusher efficiently processes materials up to 6 inches, preparing them for further production stages like pelletizing or oil extraction. Operating in a continuous high-speed mode, it achieves optimal size reduction, ensuring consistent flow in your processing line. Its direct drive or V-belt drive options provide flexibility, while optional stainless steel contact parts ensure compatibility with your material’s specific requirements. Various screen sizes and adjustable widths from 12 to 52 inches allow for tailored solutions, enhancing integration into existing systems.

Benefits

  • Enhances operational efficiency with minimal manual intervention through continuous, high-speed crushing.
  • Offers versatile integration with customizable dimensions and screen options for tailored processing solutions.
  • Reduces maintenance downtime due to durable construction and robust design.
  • Ensures process flexibility with motor drive options adaptable to various power settings.
  • Supports material integrity with optional stainless steel contact parts for corrosion resistance in demanding applications.

General


Applications
Aquaculture,Animal feed,Ethanol,Pet food,Hemp,Food industry,Oilseed processing,Hops,Rendering,Biomass
End products
Tallow,Dog kibble,Wood pellets,Fishmeal,Snack bars,Corn ethanol,Hemp oil,Cattle feed pellets,Dried hops,Soybean meal
Steps before
Particle Size Reduction,Material Feeding,Infeed Operation
Steps after
Screening,Separation,Weighing
Input ingredients
material up to 6 inches in size
Output ingredients
crushed material
Market info
CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.

Technical Specifications


Crushing Capacity
Material up to 6 inches
Construction Material
Carbon steel
Drive Type
Direct couple or V-belt drive
Width
12 to 52 inches
Screen Type
Reversible

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Energy efficiency
0.5–2 kWh/kg moisture
Cleaning method
CIP / Manual

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Carbon steel construction
Density/particle size
Up to 6 inches in size
Cleanability
Stainless steel product contact

Product type Characteristics


Maximum Material Size
Up to 6 inches

Physical Characteristics


Machine Footprint
Varies by width,12 to 52 inches
Construction Material
Carbon Steel
Rotor Shaft Mount
Roller Bearings in Split Pillow Block Housing
Screen Type
Reversible Screen
Drive Type
Direct Couple or V-belt with Guard
Infeed Method
Paddle Agitator
Width Range
12 to 52 inches

Custom Options


Screen size options
Variety of screen sizes
Width options
Widths from 12 to 52 inches
Drive options
Direct couple or V-belt drive with guard
Material construction
Carbon steel construction,Stainless steel product contact
Bearing type
Roller bearings in split pillow block housing
