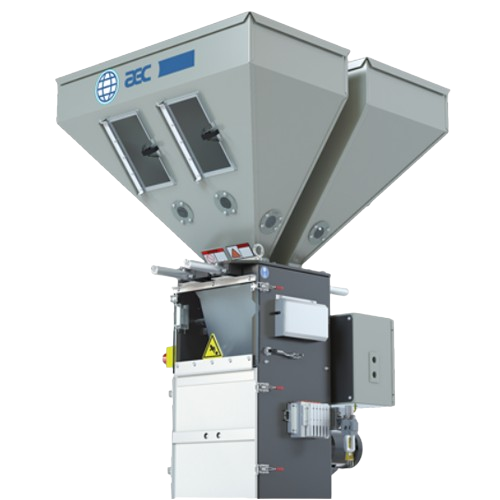

Gravimetric batch blender for injection molding and extrusion

Enhance your polymer blending precision with a solution tailored for demanding applications, ensuring every batch meets the highest standards of consistency and accuracy while minimizing material waste.

Ensures Precise Gravimetric Mixing and Blending

The BD Series Gravimetric Batch Weigh Blender from AEC sets a new benchmark in precision mixing and blending, critical for industries such as plastics, injection molding, and extrusion. This blender utilizes quick-acting diamond slide gates and a unique mix chamber design to ensure unmatched consistency in material compounding. Ideal for creating end-products like PET bottles and nylon gears, it processes granules with precision, reducing material waste through its cantilever load cell weigh system. Its ergonomically-designed interface features a 7″ high-resolution touchscreen with Ethernet connectivity, allowing for remote monitoring and integration with SCADA systems. The system’s modular design accommodates up to eight components and features stainless steel supply hoppers, ensuring durability and corrosion resistance. Maintenance is seamless with tool-free cleaning and an interlocked safety system, while an optional Quick Ship program accelerates delivery. Able to operate efficiently under rigorous conditions, the BD Series promises reliability and easy integration in smart manufacturing environments.

Benefits

  • Delivers consistent mixing that enhances product quality and reduces waste.
  • Minimizes production interruptions with tool-free maintenance and cleaning.
  • Facilitates remote operations, improving efficiency in smart factories.
  • Increases operational safety by integrating an interlock system for automatic shutdown.
  • Adapts easily to process changes with flexible recipe management and component integration.

General


Applications
Blow molding,Plastic processing,Extrusion,Polymer blending,Material compounding,Injection molding
End products
Color concentrates,Abs components,Pet bottles,Thermoplastic elastomers,Nylon gears,Polypropylene containers,Plastic automotive parts,Pvc pipe,Masterbatch,Polyethylene sheets
Steps before
Material Handling,Conveying,Drying,Inventory Control
Steps after
Quality Control,Packing,Storage,Cooling
Input ingredients
virgin material,regrind,color additives,8-component ingredients
Output ingredients
homogeneous blend,consistent mix,batch-to-batch blended mix
Market info
AEC (ACS Group) is known for manufacturing industrial equipment such as cooling, heating, and conveying solutions, serving various industries with a reputation for high-quality engineered-to-order systems and reliable customer support.

Technical Specifications


Accuracy
0.02% span accurate
Mixing Performance
Unmatched batch-to-batch consistency
HMI Display
7" High Resolution Color Touchscreen
Recipe Storage Capacity
100 recipes
Recipe Modes
Percentage,EZ mode,Parts
Component Capacity
Up to 8 components
Control System
Allen Bradley Micro850 PLC
Connectivity
Ethernet (Remote monitor and control)
Supply Voltage
115/1/60 or 230/1/60
Safety Features
Interlocked safety system
Metering System
Precision diamond slide gate
Load Cell Type
Cantilever
Low-Level Sensors
Proximity sensor for each hopper

Operating Characteristics


Automation level
PLC / SCADA
Batch vs. continuous operation
Batch
Cleaning method
Manual / Tool-free cleaning

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Custom Options


Recipe storage
100 recipe storage book
Recipe modes
Percentage,"EZ" mode,"Parts" mode
Power supply options
115/1/60 or 230/1/60 voltage
Feeding components
Includes additive feeders or RAM feeders
Loading control
Integrated 9-station loading control
Safety features
Interlocked safety system
