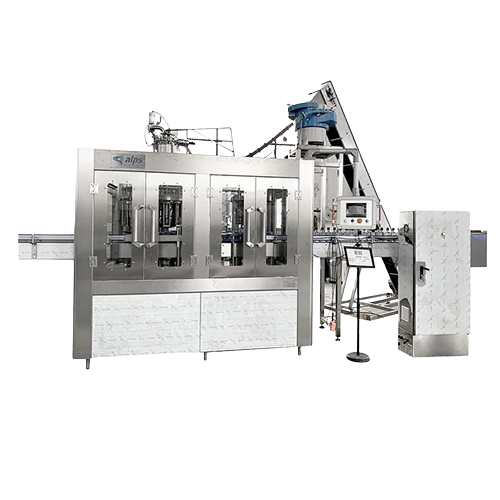

Glass bottle carbonated soft drink washer, filler, and capper
Streamline your bottling process with this machine that seamlessly integrates washing, isobaric filling, and capping for carbonated beverages, ensuring precision and high-speed operations essential for maintaining product quality and efficiency in your production line.
Washes, Fills, and Caps Carbonated Beverages
The DXGF14-12-5 from Alps Machinery is a 3-in-1 glass bottle washing, filling, and capping machine tailored for carbonated soft drink production. Leveraging isobaric filling technology, it ensures precise and stable operations, perfect for cola, sports drinks, and more. This machine integrates seamlessly into continuous, high-speed production lines, managing up to 3,000 bottles per hour. Equipped with a PLC-controlled system, it offers automatic adjustment for various bottle sizes, maintaining high precision with minimal waste. Constructed from SUS304/316 stainless steel, it ensures food-grade safety and easy maintenance. Its efficient use of aseptic water in bottle washing reduces resource consumption and downtime, while its compact design supports effective line configuration.
Benefits
- Enhances production efficiency with integrated washing, filling, and capping in one unit.
- Supports diverse product lines with quick adjustments for various bottle sizes and types.
- Ensures product quality and safety with food-grade stainless steel construction.
- Minimizes resource use and operational costs via efficient water and energy consumption.
- Simplifies maintenance and cleaning, reducing downtime and extending equipment life.
- Applications
- Soda water,Energy drinks,Carbonated drinks
- End products
- Club soda,Tonic water,Vitamin water,Sports drinks,Lemon-lime soda,Ginger ale,Root beer,Cola,Electrolyte drinks
- Steps before
- Water Treatment,Bottle Blowing,Assembly
- Steps after
- Labeling,Packing,Transportation
- Input ingredients
- aseptic water,glass bottles,crown caps,compressed air
- Output ingredients
- carbonated drinks,soda water,energy drinks,sealed glass bottles
- Market info
- Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.
- Capacity
- 2000–3000 BPH
- Bottle Sizes
- 250ml–600ml
- Filling Type
- Isobaric filling
- Bottle Diameter
- Dia50–Dia115 mm
- Bottle Height
- 150–320 mm
- Compressor Air
- 0.3–0.7 Mpa
- Total Power
- 5.2 kW
- Overall Dimensions
- 2.6 x 2.0 m
- Height
- 2.5 m
- Weight
- 4000 kg
- Working mechanism
- Automatic
- Integrated steps
- Washing,Filling,Capping
- Automation level
- PLC-controlled
- CIP/SIP
- CIP compatible
- Batch vs. continuous operation
- Inline Continuous
- Energy efficiency
- 5.2 kW
- Changeover time
- Quick changeover for different bottle sizes
- Cleaning method
- Automatic spray and rinse
- Abrasion resistance
- 304/316 Stainless Steel
- Biological compatibility
- Food grade SUS304/316
- Cleanability
- 304 Stainless Steel components
- Corrosive resistance (e.g. acids)
- Stainless Steel
- Machine footprint
- 2.6 x 2.0 m
- Height
- 2.5 m
- Weight
- 4000 kg
- Capacity
- 2000-3000 Bottles/hour
- Bottle size
- 200 ml - 600 ml
- Bottle diameter
- Dia50 ~ Dia115mm
- Bottle height
- 150 ~ 320 mm
- Control panel type
- PLC-controlled
- Integration possibilities
- Automatic adjustment for bottle size
- Filling volume adjustability
- 200ml to 600ml
- Cap type
- Crown cap
- Isobaric filling type
- Yes
- Bottle type compatibility
- Glass bottle
