Fruit pulping system for juice production

Optimize your fruit and vegetable juice production with a pulping system that ensures efficient separation of pulp, kernels, and skin while maintaining the high nutritional value of your end products.

Extracts and Separates Juice from Fruits and Vegetables

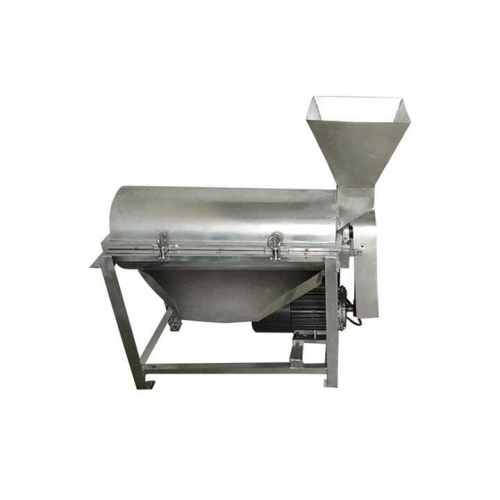

The TZ-500 and its variants from Zhengzhou Taizy Machinery Co., Ltd. offer a robust solution for juicing operations in the food and beverage industries. Specially designed for processing a variety of fruits and vegetables, this equipment employs a dual-pass system for efficient pulp extraction and de-nucleating. Capable of processing up to 500 kilograms per hour, the machine is ideal for producing juices and purees from products like mangoes, tomatoes, and stone fruits. Its stainless steel construction ensures durability and resistance to corrosion, critical for maintaining hygiene and longevity in production environments. The machine integrates seamlessly into continuous processing lines with its compact design, allowing for easy installation and minimal disruption. Energy efficiency is enhanced through optimized motor controls, significantly reducing operational costs. Engineers benefit from the adjustable settings that allow customization according to specific pulping needs, while the CIP system simplifies cleaning, ensuring minimal downtime and improved operational efficiency.

Benefits

  • Enhances production efficiency by processing up to 500 kg per hour with minimal manual intervention.
  • Reduces operational costs with energy-saving motor optimizations.
  • Ensures product quality with effective separation of pulp, seeds, and skins.
  • Offers customization for specific fruit and vegetable processing needs, improving flexibility.
  • Minimizes downtime with easy-to-clean CIP systems, streamlining maintenance.

General


Applications
Sauces,Mango juice,Stone fruits,Vegetable juices,Tomato paste,Fruit juices
End products
Pepper juice,Peach puree,Tomato juice,Mulberry juice,Peach juice,Celery juice,Orange juice,Grape juice,Mango pulp,Plum sauce,Marinara sauce,Apricot puree,Bayberry juice,Kiwi juice,Nectarine puree
Steps before
Washing,Sorting,Crushing,Pre-cooking
Steps after
Filtering,Juice Pasteurization,Bottling,Labeling,Packaging
Input ingredients
fruits,vegetables,orange,grapes,kiwi,mulberry,bayberry,peach,celery,tomatoes,peppers
Output ingredients
juice,fruit pulp,seeds,fruit skin,slag
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Motor power
3 kW,4 kW,5.5 kW
Voltage
220V/380V
Capacity
500 kg/h
Dimension
1100*550*1000 mm (single-pass),1200*550*1400 mm (double-pass)
Weight
80 kg (single-pass),140 kg (double-pass)
Screen hole size
0.4–1.5 mm
Shaft speed
Adjustable

Operating Characteristics


Working mechanism
Single-pass / Double-pass with beating chambers
Integrated steps
De-nucleating,Beating,Seed and Skin Separation
Batch vs. continuous operation
Batch / Inline Continuous
Pulping speed control
Adjustable
Screen hole size
0.4–1.5 mm
Capacity
500 kg/h

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


FDA Materials
Yes
CE marking
Yes
FDA compliance
Yes

Physical Characteristics


Machine Footprint
1100*550*1000 mm
Machine Footprint
1200*550*1400 mm
Machine Footprint
1200*600*1500 mm
Machine Footprint
1400*650*1700 mm
Machine Footprint
1600*750*1900 mm
Feed/Discharge Method
Hopper Feed,Slag Outlet Discharge
Cylindrical Screen Size
4-1.5 mm hole size
Material
Stainless Steel
Blade Type
Scraper Blade
Shaft
Rotating Shaft
Control Panel Type
Not specified

Custom Options


Customization of screen size
Yes
Adjustable scraper distance
Yes
Number of beating chambers
1 or 2
