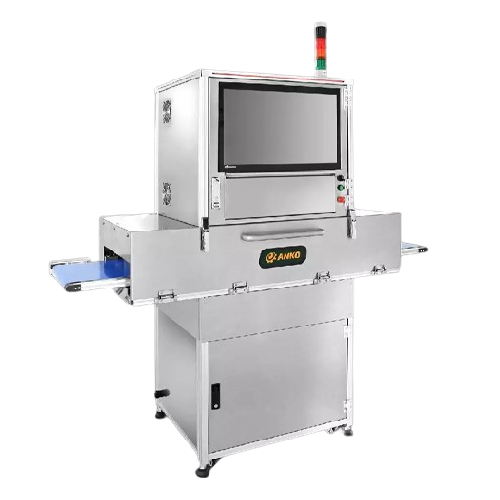

Food x-ray inspection system for contaminant detection
Ensure the purity and safety of your food products with advanced x-ray inspection technology that accurately detects foreign objects and contaminants in real-time, enhancing quality control processes with minimal manual intervention.
Detects and Identifies Foreign Objects
The XRI Series from ANKO, developed in collaboration with Nano Ray Solution, is an advanced X-Ray Inspection Machine designed for food, pharmaceutical, and chemical applications. It specializes in real-time detection of foreign objects like metal threads, plastics, and bone fragments in products such as dumplings, bao buns, and pharmaceutical tablets. Utilizing AI image detection combined with a 21.5-inch interface, it ensures precise identification of contaminants as small as 0.4mm. Integrated into continuous and automatic production lines, it enhances safety and quality compliance, certified to emit less than 0.5 μSv/hr. Easy to operate and maintain, the machine features adjustable parameters and protected by anti-radiation materials. It aligns with international safety standards, offering robust after-sales support and customizable options for varied production needs.
Benefits
- Enhances product safety by detecting contaminants as small as 0.4mm.
- Increases production quality with precise image analysis and defect identification.
- Complies with international safety standards, ensuring operational safety.
- Streamlines inspections with user-friendly AI-driven interface.
- Minimizes downtime with continuous, automatic operation.
- Applications
- Meat products,Halal,Snacks,Confectionery,Vegetarian,Seafood products,Chemical engineering,Food production,Packaged food,Frozen foods,Pharmaceutical manufacturing
- End products
- Samosa pastry,Vegan burgers,Frozen vegetables,Candy pieces,Packaged snacks,Shumai,Tapioca pearls,Dumplings,Spring rolls,Meat patties,Chocolate bars,Paratha,Halal sausages,Fish fillets,Bao buns
- Steps before
- Food placement,Conveying
- Steps after
- Packing,Defect sorting,Quality assurance
- Input ingredients
- food products,pharmaceutical materials,chemical engineering materials,rubber bands,plastics,machine parts,bones,metal threads,stainless steel dust
- Output ingredients
- inspected food products,foreign object-free materials,real-time detection data,improved food production quality,enhanced safety standards
- Market info
- Dimensions
- 780 (L) x 1,940 (W) x 2,120 (H) mm
- Power
- 1 kW
- Monitor
- 21.5 inches
- X-ray source
- 80 kV
- X-ray linear array detector
- 300 mm / 500 mm
- Conveyor width
- 450 mm
- Highest detection size
- 120 (W) x 100 (H) mm / 175 (W) x 120 (H) mm
- Widest detection size
- 200 (W) x 0 (H) mm / 340 (W) x 0 (H) mm
- Highest sensitivity
- SS #304 0.4 mm,Stone 1.0 mm,Bone 1.0 mm,Glass 2.0 mm
- Weight (net)
- 220 kg
- Detection type
- X-ray
- Automation
- AI image detection technology
- Efficiency
- High Luminescence Efficiency
- Compliance
- Certified below 0.5 μSv/hr
- Automation level
- AI with GUI
- Batch vs. continuous operation
- Continuous
- Changeover time
- Quick setup via parameter settings
- CIP/SIP
- Manual
- Cleaning method
- Manual/Lead sheet coverage
- Energy efficiency
- Low
- Air incorporation control
- Advanced image detection accuracy
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Non-Radioactive Certification
- Below 0.5 μSv/hr
- Machine footprint
- 780 mm (L) x 1,940 mm (W) x 2,120 mm (H)
- Conveyor width
- 450 mm
- Monitor size
- 21.5 inches
- Weight (net)
- 220 kg
- Detection zone dimensions
- Highest
- Widest
- 340 (W) x 0 (H) mm
- Control panel type
- AI image detection technology with Graphical User Interface (GUI)
- Discharge method
- Food-grade rubber belts
- Radiation Protection
- Covered by Lead Sheets
- Parameter Adjustments
- Intuitive Adjustable Settings
