Flexible wrapping system for bathroom tissue and towels
Optimize your wrapping process with a system engineered for high speed and flexible configurations, effectively meeting demands for eco-friendly and versatile packaging solutions in tissue production.
Wraps and Seals Tissue and Nonwoven Rolls

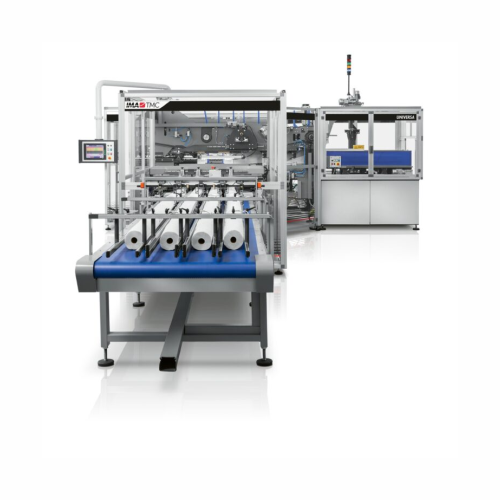

The UNIVERSA from IMA Group is an automatic wrapping machine expertly designed for tissue and nonwoven products, delivering exceptional versatility and speed. This equipment seamlessly wraps and seals single and multi-roll configurations, accommodating a variety of flexible materials, including eco-friendly options. With a production capacity of up to 200 packs per minute, the UNIVERSA efficiently processes rolls in both horizontal and vertical orientations. Its advanced control panel provides intuitive, step-by-step guidance, streamlining changeovers and maximizing operator efficiency. By reducing energy consumption through optimized motor control and requiring minimal maintenance with high-quality self-lubricating chains, the UNIVERSA is an economical solution for sustainable packaging lines. Capable of storing multiple recipes, this machine ensures fast, repeatable settings, while meeting diverse industry needs in hygiene, personal care, and packaging.
Benefits
- Increases production efficiency with a capacity of up to 200 packs per minute.
- Enhances operator productivity through a guided control panel, minimizing human error.
- Supports sustainability goals via eco-friendly wrapping options with heat-sealable materials.
- Minimizes maintenance downtime using self-lubricating, self-tensioning chains.
- Enables fast production adjustments by storing customizable wrap configurations.
- Applications
- Nonwoven products,Bathroom tissue,Tissue products,Household towels,Paper rolls
- End products
- Single roll toilet paper,Heat-sealable eco-friendly kitchen towel packages,Multi-roll kitchen towel packs,Single roll kitchen towels,Multi-roll toilet paper packs,Heat-sealable eco-friendly toilet paper packages
- Steps before
- Roll production,Product sorting,Product feeding,Roll infeed
- Steps after
- Sealing,Package labeling,Quality inspection,Distribution
- Input ingredients
- bathroom tissue rolls,household towel rolls,single rolls,multi-rolls,flexible plastic material,paper material,transparent material,printed material,heat-sealable paper
- Output ingredients
- wrapped bathroom tissue rolls,wrapped household towel rolls,single layer packs,double layer packs,triple layer packs,eco-sustainable packs
- Market info
- IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.
- Max. Mechanical Speed
- up to 220 cy/1'
- Servo Motors
- 20 to 24,depends on possible options
- Infeed Diameter Range
- 90 mm to 200 mm
- Infeed Cut-Off Range
- 90 mm to 300 mm
- Outfeed Width Range
- 90 mm to 600 mm
- Outfeed Depth Range
- 180 mm to 600 mm
- Outfeed Height Range
- 90 mm to 300 mm
- Poly Capability Reel Width
- 320 mm to 1800 mm
- Repeat Length
- 225 mm to 950 mm
- Wrapping flexibility
- Single roll to multi-roll configurations
- Packing speed
- Up to 200 packs per minute
- Product position
- Horizontal and vertical
- Pack configuration
- Single,double,triple layer
- Up to 50-60 BRT rolls and 20 HHT rolls
- Automation level
- Automatic with touch screen control panel
- Changeover time
- Guided change-over operations for easy management
- Recipe storage
- Fast,accurate,repetitive settings
- Material compatibility
- Flexible plastic or paper,transparent or printed
- Sustainability
- Heat-sealable paper for eco-sustainable materials
- Heat-sealable material compatibility
- Yes
- Compatibility with flexible plastic
- Transparent or printed
- Compatibility with paper material
- Yes
- Eco-sustainable material compatibility
- Yes
- Machine Footprint
- Customizable
- Infeed Method
- Four lanes infeed conveyor
- Control Panel Type
- Touch screen control panel
- Output Configuration
- Single,double,and triple layer packs
- Wrap Material Compatibility
- Flexible plastic or paper material,transparent or printed
- Product Orientation
- Horizontal and vertical
- Control panel type
- Touch screen
- Recipe storage
- Fast,accurate,and repetitive setting
- Guided change-over operation
- Easy management through control panel
- Tutoring system
- Innovative system installed
- Wrap configuration
- Single,double,and triple layer packs
- Material flexibility
- Flexible plastic or paper,transparent or printed
- Layer pack management
- Wrapping in horizontal and vertical position
- Machine integration
- Connectivity with tissue converters
- Eco-sustainable material capability
- Heat-sealable paper
- High-speed operation
- Up to 200 packs per minute
