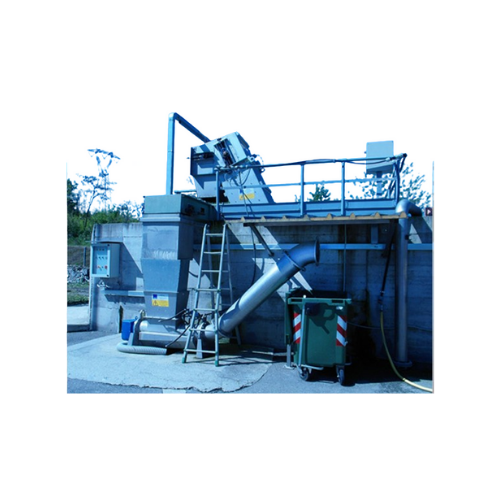

Fine belt screens for wastewater treatment
Efficiently screen and convey solids from wastewater with in-channel fine belt systems, reducing service needs with easy maintenance and high capture efficiency.
Screens and Conveys Wastewater Solids
The Fine Belt Screens VFR from WAMGROUP offer a robust solution for effective wastewater solids screening and conveying. Designed for in-channel installation, these screens function through a step-belt arrangement of perforated plates, which efficiently separate and transport solids. Suitable for municipal and industrial wastewater systems, they operate continuously to streamline treatment processes across diverse applications, including food processing, pulp and paper, and tanneries.
With sizes up to 2,000 mm wide, the VFR screens accommodate varying capacities, featuring a 65-degree incline for optimizing material flow. The integration of a double cleaning system, comprising a motorized roller brush and washing bar, ensures minimal maintenance, eliminating the need for screen removal during cleaning. Constructed from materials like hot-dip galvanized steel and 304 L/316 L stainless steel, they promise durability and corrosion resistance.
These screens are engineered for seamless integration with existing treatment lines, equipped with customizable options such as alternative screen types and material grades, voltage and frequency variants, and enhanced motor protection levels. Ideal for facilities aiming for reduced downtime and high capture efficiency, the VFR screens represent a significant advancement in wastewater management technology.
Benefits
- Ensures high capture efficiency, enhancing overall treatment performance.
- Minimizes maintenance with a dual cleaning system, reducing operational interruptions.
- Customizable to handle diverse wastewater types, improving adaptability across industries.
- Durable construction provides long-term resistance to corrosion and wear.
- Streamlines operations with continuous, automated in-channel screening.
- Applications
- Industrial waste water,Sludge treatment,Clean water treatment,Paper processing,Tanneries,Vegetable processing waste water,Industrial solid waste handling,Treatment,Starch,Municipal waste water,Catering waste water,Animal by-products handling,Beverage industry waste water,Plastics recycling industry waste water,Dyeing works,Food processing waste water,By-products processing,Processing,Pulp,Fruit
- End products
- Steps before
- Waste Water Collection,Coarse Screening,Sedimentation
- Steps after
- Sludge Treatment,Effluent Discharge,Nutrient Removal
- Input ingredients
- waste water,municipal waste water,industrial waste water,food processing waste water,beverage industry waste water,fruit and vegetable processing waste water,pulp and paper processing waste water,plastics recycling industry waste water
- Output ingredients
- screened solids,clean water,filtered waste water
- Market info
- WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.
- Size
- Up to 2,000 mm wide
- Incline Angle
- 65 degrees
- Media Opening Size
- 2 to 6 mm
- Material
- Hot dip-galvanised steel,304 L / 316 L SS
- Cleaning System
- Motorised roller brush and washing bar
- Drive System
- Chain drive recessed into side rails
- Torque Limit Switch
- Required
- Automation
- Control panel available
- Batch vs. continuous operation
- Inline Continuous
- Intended use
- Municipal and Industrial Waste Water Treatment
- Cleaning method
- Chute and motorized roller brush
- Automation level
- Driven by gear reducer with torque limit switch
- Changeover time
- Reduced service requirements
- Filter media type
- Perforated plate media
- Corrosive resistance (e.g. acids)
- 304 L / 316 L SS
- Machine width
- Up to 2,000 mm
- Incline angle
- 65 degrees
- Perforated media openings
- 2 to 6 mm
- Material
- Hot dip-galvanised steel,304 L / 316 L SS
- Installation type
- In-channel installation
- Filter elements arrangement
- Step belt
- Control panel type
- Available
- Material
- Hot dip-galvanised steel,304 L / 316 L SS
- Alternative degree of motor protection
- Available
