Filling and assembling solution for Ivd and Poc products

Optimize precision and efficiency in cleanroom environments with a solution designed for high-speed forming, filling, and sealing of complex diagnostic products, ensuring reliable results for intricate in-vitro and point-of-care applications.

Forms, Assembles, Fills, and Seals IVD Products

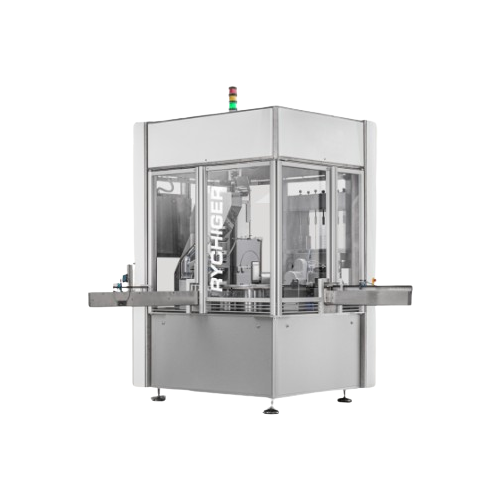

The FS 200 by Rychiger is a cutting-edge filling and assembling machine tailored for the life sciences sector, particularly in-vitro diagnostics and point of care. This compact machine, designed for cleanroom use, integrates a rotary indexing table with eight stations to efficiently handle forming, assembling, filling, sealing, and punching tasks. Capable of producing up to 240 units per minute, it ensures high throughput of products such as assay kits, gel card panels, and reagent cartridges. The FS 200’s modular design allows for seamless expansion with additional units and smart trolleys for quick product changes. With features like easy-clean surfaces, separated drive compartments, and optional laminar flow, it meets stringent cleanliness standards. Rychiger offers comprehensive customization options to integrate specialized processes tailored to your manufacturing needs.

Benefits

  • Maximizes production efficiency with a capacity of up to 240 units per minute.
  • Ensures compliance with stringent cleanroom standards through a fully enclosed processing area and optional laminar flow.
  • Streamlines maintenance and cleaning efforts with easily accessible, wipe-clean surfaces and separate drive compartments.
  • Allows seamless scaling and flexibility with the capability to integrate additional units for increased production demands.
  • Facilitates rapid product changes, reducing downtime and enhancing operational agility.

General


Applications
Point of care,Gel cards,In-vitro diagnostics,Pharmaceuticals
End products
Ivd test kits,Elisa kits,Pcr kits,Blood glucose test strips,Gel card panels,Hematology reagents,Assay kits,Microfluidic cartridges,Reagent cartridges,Immunoassays
Steps before
Product preparation,Raw material handling,Component inspection
Steps after
Product assembly,Quality control,Packaging
Input ingredients
complex aluminum-blisters,powders,liquids,lyophilized beads
Output ingredients
IVD kits,POC kits,gel cards,assembled and sealed units
Market info
Rychiger is known for engineering high-precision filling and sealing machines for the food and medical industries, offering customized, innovative automation solutions, with a strong reputation for reliability and exceptional engineering expertise in the packaging sector.

Technical Specifications


Speed
240 containers/min
Number of Lanes
4 lanes
Number of Stations
8 stations
Machine Size
1.4 x 1.4 x 2.3 m
Weight
1'200 kg
Connected Load
3 x 400 V + Pe / 50 Hz
Rated Power
20 kW
Compressed Air Requirement
≥ 5 bar,15 l/min
Filling Type
Powders,liquids,and lyophilized beads
Filling Accuracy
High-precision pumps
Cleanroom Compatibility
Approved for cleanroom applications
Automation Level
Rotary indexing table
Product Compatibility
In-vitro diagnostics,point-of-care testing kits,gel cards
Footprint
Just over two square meters

Operating Characteristics


Working mechanism
Rotary indexing table
Integrated steps
Forming,Assembling,Filling,Sealing
Batch vs. continuous operation
Batch / Inline Continuous
Automation level
High automation with precision dosing
Changeover time
Quick retooling
Cleanroom compatibility
Approved for cleanroom applications

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Filling purpose
IVD,POC,gel cards


ISO Cleanroom Standards
ISO 7 / ISO 8

Physical Characteristics


Machine footprint
1.4 x 1.4 m
Height
2.3 m
Weight
1,200 kg
Stations
8 stations
Lane configuration
4 lanes
Rotary indexing table
Included
Discharge method
Rotary discharge

Custom Options


Control panel type
Rotary indexing table
Integration possibilities
Can include additional downstream processes,such as a second FS 200 unit
Footprint
Just over two square meters
Smart trolley
Quick product change preparation
