Feed pellet crumbler

Achieve precise size reduction of feed pellets with high efficiency and minimal fines, optimizing your production line’s overall performance.

Reduces Pellet Size to Uniform Crumbles

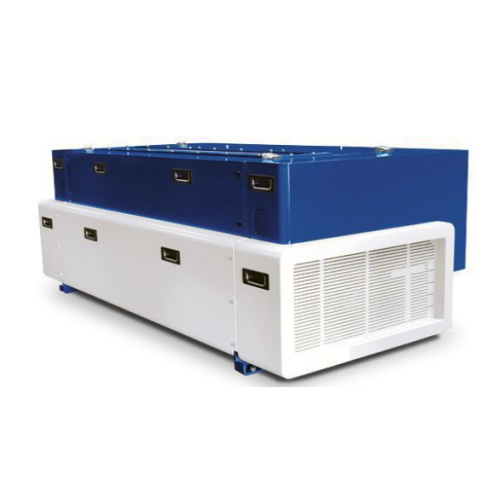

The Crumblers HE-serie from Ottevanger Milling Engineers is engineered to deliver precise size reduction and high-efficiency processing in feed and grain operations. Utilizing dual, independently driven 300 mm rollers, it effectively reduces pellets into uniformly sized crumbles, minimizing fines and maximizing production consistency. Ideal for feed and pet food producers, the Crumblers HE-serie is capable of handling a range of materials, including chicken feed crumble and dog food kibble, with a throughput of up to 40 tons per hour, depending on product specifications.

Its robust construction includes a mild steel housing and hard cast iron rollers, ensuring durability and resistance to wear. The machine offers manual or remote roller adjustment, enhancing operational flexibility and enabling rapid adaptation to varying production needs. Designed for continuous operation, the Crumblers HE-serie integrates seamlessly into existing production lines, supported by high-efficiency mode for reduced energy consumption.

Maintenance and cleaning are streamlined by the large inspection hatch and easily accessible components, while die springs provide a protective safety mechanism against foreign objects. The Crumblers HE-serie can be customized with frequency-controlled dual rotation feeders and additional roller revision options, allowing for tailored configurations to meet specific production demands. Suitable for various feed applications, it meets industry standards and is supported by comprehensive engineering support from Ottevanger.

Benefits

  • Ensures consistent crumble quality, improving product yield and reducing waste.
  • Increases production efficiency with quick and precise remote roller adjustments.
  • Lowers energy costs through optimized high-efficiency operation.
  • Minimizes maintenance downtime with easily accessible components and quick roller exchange.
  • Enhances safety with built-in foreign object protection mechanisms.

General


Applications
Feed,Pet food,Grain processing,Soybean processing,Aqua feed,Concentrates,Premix,Compound feed
End products
Cattle feed mixture,Poultry premix,Milled corn flour,Hog concentrates,Chicken feed crumble,Soybean meal,Fish feed pellets,Soy protein isolate,Dog food kibble,Broiler feed
Steps before
Pelleting,Cooling
Steps after
Sieving,Coating
Input ingredients
pellets
Output ingredients
crumbles,minimized fines
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Roller Size
300 mm
Roller Material
Hard cast iron (hartguss)
Motor Power (CR 3070)
5.5–7.5 kW
Motor Power (CR 313)
5.5–11 kW
Motor Power (CR 318)
5.5–15 kW
Capacity (CR 3070)
1–5 t/h
Capacity (CR 313)
10–30 t/h
Capacity (CR 318)
15–40 t/h
Automation
Remote roller adjustment
Transmission
V-belts
Efficiency
High efficiency line
Adjustment Accuracy
Read-outs accurate to 0.1 mm
Roller Drive
Independently driven

Operating Characteristics


Working mechanism
Two large,independently driven rollers
Integrated steps
Rotating feeder for even distribution
Roller adjustment
Manual or remote
Energy efficiency
Optimized for lower energy consumption
Automation level
Remote adjustment capability
Batch vs. continuous operation
Continuous

Material Compatibility


Abrasion resistance
High
Biological compatibility
N/A
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Resistant
Density/particle size
Suitable for various densities and sizes

Product type Characteristics


Product type
Pellets

Physical Characteristics


Machine footprint
Compact
Roller size
300 mm
Roller material
Hard cast iron (hartguss)
Housing material
Mild steel
Discharge method
Rotating feeder
Control panel type
Manual/Remote

Custom Options


Roller adjustment
Manual or remote
Roller replacement
Front and side access
Feeder control
Frequency controlled dual rotation
Safety features
Die springs against foreign objects
