Ethylene oxide sterilization for heat-sensitive medical products

Ensure sterility of heat and moisture-sensitive products with precise low-temperature processes that protect their integrity, making it ideal for maintaining quality in sensitive healthcare and pharmaceutical applications.

Sterilizes Heat and Moisture Sensitive Products

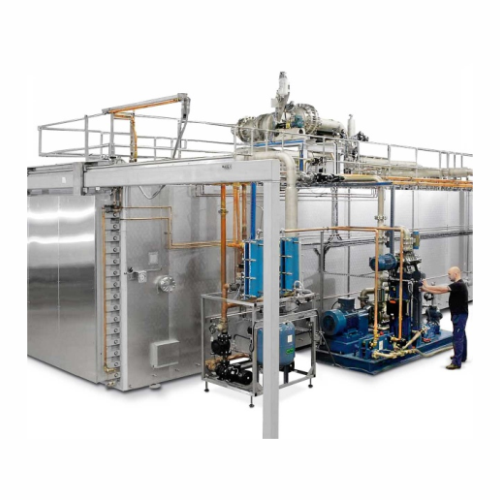

The GEE Ethylene Oxide (EO) Sterilizers from Getinge are tailored for healthcare facilities and manufacturers requiring precise sterilization of heat and moisture-sensitive products. This system utilizes a low-temperature EO process capable of sterilizing packed and palletized goods efficiently, preserving packaging integrity and product properties.

Equipped with a PLC automation system (Allen Bradley or Siemens), these sterilizers are designed for seamless integration into your production line with centralized SCADA support for comprehensive monitoring. The flexible data storage and monitoring capabilities cater to specific processing requirements, ensuring compliance with industry standards.

Primarily serving the pharmaceutical, medical device, and healthcare equipment industries, these sterilizers are instrumental in processing surgical sutures, catheters, implantable devices, and electronics like circuit boards. The equipment runs automated and high-speed batch operations suitable for solid and gas product types.

These sterilizers are built with safety in mind, featuring compliance with ATEX regulations and employing redundant safety measures. The chamber design includes a dual gasket for airtight sealing, even in varying pressure conditions, supported by external vaporization of liquid EO.

GEE sterilizers boast components for effective load handling without operator entry into the EO chamber, while also allowing customization to your facility layout and workflow. The system’s robust vacuum pumps facilitate rapid EO removal, and the chamber recirculation system ensures optimal gas and temperature distribution for reliable sterilization results, supporting a safe and efficient sterilization process across various applications.

Benefits

  • Enhances product safety and integrity through low-temperature sterilization, preserving sensitive materials.
  • Minimizes labor involvement with automated pallet loading and SCADA-managed processes.
  • Improves operational safety with ATEX compliance and robust leakage prevention systems.
  • Ensures traceability and regulatory compliance with comprehensive batch documentation and 21CFRPart11-compliant SCADA.
  • Reduces environmental impact by efficient EO usage and rapid degassing, promoting a safer workplace.

General


Applications
Healthcare equipment,Medical devices,Moisture-sensitive medical products,Surgical instruments,Heat-sensitive medical products,Electronics,Pharmaceuticals
End products
Inhalers,Syringes,Catheters,Electronic circuit boards,Patient monitors,Surgical sutures,Infusion pumps,Implantable devices,Hospital beds
Steps before
Pre-treatment,Heating,Humidification
Steps after
Post-conditioning,Degassing,Packing
Input ingredients
heat/moisture sensitive products,products requiring EO sterilization,packaged goods,palletized products,ethylene oxide gas
Output ingredients
sterilized products,sterile packaged goods,ready-to-ship products
Market info
Getinge is known for providing innovative healthcare and life sciences products, specializing in medical technology, infection control, surgical workflows, and critical care solutions. They maintain a strong reputation for quality and technological advancement in these sectors.

Technical Specifications


Automation
PLC-controlled (Allen Bradley or Siemens)
Control System
SCADA 21CFRPart11 compliant
Batch reporting features
Detailed and summarized,auto batch release
Safety Compliance
ATEX regulations
Leak test
Automatic chamber leak rate test
Temperature Control
Low-temperature sterilization with EO
Gas Distribution
Uniform gas and temperature distribution
Vacuum System
Liquid ring vacuum pumps
Gas vaporization
Outside building EO vaporization
Load handling
Automatic pallet transfer system (APTS)
Process Monitoring
PLC with SCADA system

Operating Characteristics


Automation level
PLC / SCADA
Batch vs. continuous operation
Batch
CIP/SIP
CIP
Cleaning method
Automatic
Load handling
Automatic pallet transfer system
Process safety
PLC and SCADA systems
Temperature control
Heated water circulation
Process outline
Multi-stage (pre-treatment,EO sterilization,post-conditioning)
Gas dispensing
Vaporization

Material Compatibility


Biological compatibility
Heat/moisture sensitive materials
Temperature sensitivity
Suitable for low-temperature sterilization
Moisture sensitivity
Compatible with materials that cannot withstand moisture


ATEX certification
Yes
21 CFR Part 11 compliance
Yes

Physical Characteristics


Chamber size
Customizable for specific facility layouts
Control panel type
HMI interface with full SCADA system
Door design
Leak-tight door with dual gasket system
Pallet handling system
Automatic Pallet Transfer System (APTS)
Gas dispensing method
Vaporization outside building
Cooling system
Optional cooling system for rapid temperature transition
Vacuum system
Liquid ring vacuum pumps
Recirculation system
Ensures uniform gas and temperature distribution
Material flow direction
Two linear directions for pallet movement

Custom Options


Control panel type
PLC automation (Allen Bradley or Siemens)
Integration possibilities
SCADA system integration
Process monitoring
SCADA with HMI interface
Optimization capabilities
Specific process requirements
