Empty capsule sorting system
Streamline your capsule production by efficiently removing empty and defective capsules, ensuring only quality-filled capsules proceed to the next stage of your manufacturing process.
Sorts and Rejects Defective Capsules

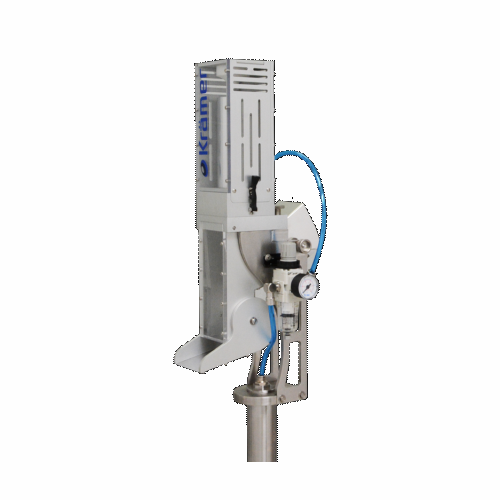

The KCS10 Capsule Sorter from Krämer AG efficiently identifies and removes empty or defective capsules, enhancing product quality in the pharmaceutical and nutraceutical sectors. This equipment excels with its ability to automatically sort capsules filled with powders, granules, or pellets using a compressed air mechanism, eliminating the need for a power supply. Capable of processing up to 300,000 capsules per hour, it integrates seamlessly after capsule polishers or metal detectors, fitting effortlessly into continuous production lines. Designed with AISI 316L stainless steel contact surfaces, it ensures durability and compliance with GMP standards. Easy assembly and disassembly without tools facilitate quick maintenance, minimizing downtime. Optional features such as inlet and outlet adapters and material certificates offer customization to meet specific operational needs.
Benefits
- Enhances product quality by automatically rejecting defective and underweight capsules.
- Seamlessly integrates into existing production lines, optimizing workflow efficiency.
- Minimizes cleaning time with tool-free assembly and disassembly.
- Operates without a power supply, reducing energy dependency and operational costs.
- Complies with GMP standards, ensuring regulatory adherence in pharmaceutical and nutraceutical production.
- Applications
- Pharmaceutical capsules,Nutraceuticals,Supplements
- End products
- Ginseng capsules,Protein powder capsules,Vitamin d capsules,Multivitamin capsules,Coenzyme q10 capsules,Probiotic capsules,Fish oil capsules,Herbal extract capsules,Omega-3 capsules,Curcumin supplement capsules
- Steps before
- Capsule Filling,Metal Detection
- Steps after
- Capsule Polishing
- Input ingredients
- capsules,empty capsules,capsules with low dosage,loose parts,small remnants,capsules filled with powder,capsules filled with granules,capsules filled with pellets
- Output ingredients
- sorted capsules,underweight capsules rejected,defective capsules rejected,loose parts rejected
- Market info
- Kraemer is known for designing and manufacturing customized engineered-to-order equipment for industrial applications, leveraging advanced engineering expertise to deliver high-quality, reliable solutions tailored to meet specific client needs in various sectors.
- Conveying Speed
- 300,000 capsules/hour
- Capsule Sizes
- 00-4
- Assembly/Disassembly
- No tools required
- Material of Product Contacting Parts
- AISI 316L stainless steel
- Compressed Air Requirement
- Ø6/4mm,0.25 l/min (p=3 bar)
- Product Inlet/Outlet Size
- 68x38 mm
- Processing Capsule Sizes
- 4-00
- Explosion Protection
- ATEX 94/9/EG
- Weight
- 15 kg
- Processing of Tablets
- Ø3-35 mm
- Processing of Mini/Micro-Tablets
- Ø1.5-3 mm
- Processing of Effervescent Tablets
- Ø25-35 mm
- GMP Compliance
- Option available
- Validation Documentation
- Option available
- Material Certificates
- Option available
- Working Mechanism
- Compressed air operation
- Integrated Steps
- Sorting,rejecting underweight capsules
- Automation Level
- Automatic rejection of defective capsules
- Connected Systems
- Works with capsule polishers and metal detectors
- Conveying Speed
- Up to 300,000 capsules/hour
- Ease of Assembly and Disassembly
- Tool-free
- Cleanability
- All product contact surfaces are 316L stainless steel
- Corrosive resistance (e.g. acids)
- AISI 316L Stainless Steel
- Machine weight
- 15 kg
- Compressed air connection
- Ø6/4mm
- Product inlet size
- 68x38 mm
- Product outlet size
- 68x38 mm
- Material of construction
- AISI 316L,anodized aluminium,PET-G
- Integration possibilities
- Connectable to production line
- Component material
- 316L stainless steel
- Option inlet adapter
- Available
- Option outlet adapter
- Available
- Option mini/micro-tablets
- Available
- Option WIP manual/auto
- Available
- Option validation documentation
- Available
- Option material certificates
- Available
