Emission control for fluid catalytic cracking units
Optimize your refinery’s emission control by reducing SOx levels and eliminating sulfuric acid mist, ensuring cleaner flue gases and compliance with environmental standards.
Removes Contaminants from Refinery Flue Gas

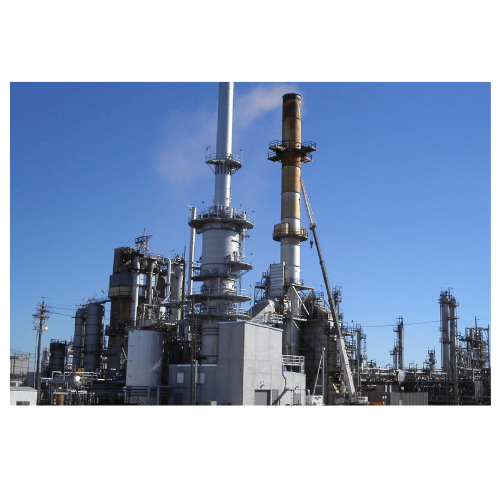

The EP Absorber from GEA is an advanced electrostatic precipitator absorber designed specifically for refinery applications, effectively removing sulfuric acid mist and particulates from flue gas. Featuring a unique combination of wet scrubbing and electrostatic precipitation, this compact system operates at inlet gas temperatures up to 600°C. It excels in reducing SOx emissions and heavy metals, providing cleaner air outputs. Its design includes a robust, vertical tube configuration with heavy-duty discharge electrodes, offering continuous and high-capacity performance with low energy consumption. The inclusion of wet scrubbers and electrostatic precipitators results in effective gas cooling and absorption, while the special treatment of the collecting surfaces ensures efficient liquid film formation. This equipment is vital for oil, gas, and refinery industries looking to enhance environmental operations with minimal maintenance and enhanced operational life.
Benefits
- Minimizes operational costs with low-pressure drop, eliminating the need for additional booster fans.
- Enhances air quality by effectively reducing SOx and heavy metal emissions in refinery processes.
- Optimizes energy efficiency, reducing power consumption due to the compact and efficient design.
- Lowers maintenance requirements with heavy-duty electrodes and continuous operation capabilities.
- Integrates seamlessly into existing production lines, ensuring consistent and reliable performance.
- Applications
- Fluid catalytic cracking,Gas cleaning systems,Heavy metals removal,Emission control,Industrial off-gas,Refinery gas
- End products
- Sulfuric acid mist-free air,Reduced sox emissions,Processed fluid catalytic cracking gas,Heavy metal-free off-gas,Clean refinery flue gas
- Steps before
- Gas cooling,Flue gas desulfurization
- Steps after
- Emission monitoring,Waste handling
- Input ingredients
- FCC flue gas,sulfuric acid mist,particulate matter,SO2,SO3 mist
- Output ingredients
- cleaned flue gas,reduced SOx emissions,condensed sulfuric acid,collected particulates,lower emissions
- Market info
- GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.
- Inlet Gas Temperature
- Up to 600°C
- Gas Flow Direction
- Top or Bottom
- Absorption Process
- Wet Scrubber
- Precipitation Process
- Electrostatic Precipitation
- Material for Contact Parts
- Lead coated / Plastic / Rubber lined
- Collecting Tube Length
- Maximum 6m
- Collection Tube Material
- Polypropylene (PP) / Polyvinylchloride (PVC)
- Energy Consumption
- Low (Due to low pressure drop)
- Design Configuration
- Vertical Type
- Working Mechanism
- Electrostatic Precipitation and Absorption
- Integrated Steps
- Scrubber,Precipitator,Stack
- Design Type
- Vertical Type
- Gas Flow Direction
- Bottom-to-Top / Top-to-Bottom
- Temperature Range
- Up to 600°C
- Efficiency
- Low Emissions
- Cleaning Method
- CIP while in Operation
- Automation Level
- PLC Controlled
- Maintenance
- Scrubber Nozzle Replacement During Operation
- Redundancy
- High-quality T/R Sets and Controllers
- Compact footprint
- Yes
- Control panel type
- PLC-controlled
- Discharge method
- Vertical type,top or bottom inlet
- Inlet gas temperature
- Up to 600°C
- Turing cane and perforated plate distribution
- Gas flow management
- Material options
- Polypropylene (PP) or Polyvinylchloride (PVC)
- Collecting surface length
- Up to 6m
- Gas Inlet Position
- Top / Bottom
- Material Options
- Polypropylene (PP) / Polyvinylchloride (PVC)
- Design Type
- Vertical
- Temperature Range
- Up to 600°C
- Electrode Support Design
- Unique alignment mechanism
- Gas Flow Direction
- Upward / Downward
- Electrode Discharge Design
- Heavy duty
- Material Lining
- Lead coated / Plastic / Rubber lined
- Voltage Application
- High voltage for electric field
- Liquid Film Formation
- Special surface treatment
