Efficient blister packing for pharmaceutical tablets

Streamline your production with a blister packing machine that enhances material efficiency, minimizes waste, and significantly boosts tablet packaging speed—ensuring each capsule and tablet meets rigorous quality checks without disruption.

Packs and Detects Pharmaceutical and Nutraceutical Products

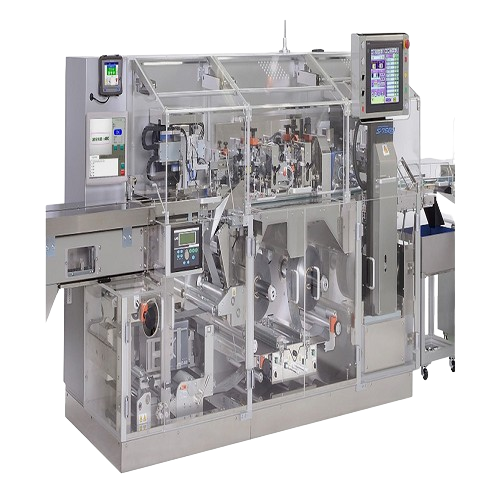

The CKD blister packing machine, represented by AUSTAR, offers pharmaceutical and biopharmaceutical manufacturers an efficient solution for precision packaging tasks. With an innovative lateral drug sheet blanking system, it reduces raw material costs by 10%. Its unique blister column shaping method ensures uniform wall thickness, conserving up to 80% in gas consumption. Designed for processing solid and powder products such as tablets and capsules, the machine automatically connects existing and new packaging materials without halting operations, boosting production efficiency by 20%. Equipped with a high precision camera detection system, it identifies defects in tablets with up to 3% accuracy. This machine supports continuous, high-speed operations ideal for busy packaging departments and integrates seamlessly into existing production lines with features like a cloud system for equipment monitoring. Its robust design also minimizes wear and tear on tablets, achieving a 100% blanking ratio. The CKD blister machine complies with stringent industry standards and offers rapid maintenance solutions, including a one-key clamp mechanism for swift component replacements.

Benefits

  • Reduces packaging material expenses by 10% with efficient blanking technology.
  • Enhances productivity by 20% through continuous operation without stopping for material changes.
  • Achieves precise quality control with high-accuracy defect detection capabilities.
  • Cuts operational costs by significantly lowering gas consumption during blister formation.
  • Lowers maintenance time with rapid apparatus replacement and robust design.

General


Applications
Vitamins,Supplements,Pharmaceutical tablets,Nutraceuticals,Biopharmaceuticals
End products
Supplement tablets,Nutraceutical capsules,Pharmaceutical blister packs,Vitamin blister packs,Biopharmaceutical doses
Steps before
Grinding,Material Preparation
Steps after
Packing,Tablet Defect Detection,Blister Column Shaping
Input ingredients
packaging material,tablets,pill sheets
Output ingredients
blister packs,packed tablets,packaged pill sheets
Market info
Austar is known for specializing in the design and manufacture of engineered-to-order industrial equipment, particularly in the pharmaceutical and biotechnology sectors, offering solutions that focus on quality, innovation, and meeting specific customer requirements.

Technical Specifications


Blister technology
Lateral drug sheet blanking without borders
Raw material cost reduction
10%
Changeover time for grinding apparatus
30 minutes
Production efficiency improvement
20%
Blister wall thickness uniformity
80% gas consumption saved
Tablet defect detection rate
Up to 3%
Blanking ratio
100%
Cloud system functionality
Multi equipment
Containment level
OEB5 solutions

Operating Characteristics


Automation level
PLC / Cloud System
Changeover time
30 minutes
Batch vs. continuous operation
Continuous
Material preparation
Non-destructive
Connection of packaging materials
Automatic without shutdown
Blister column shaping method
Uniform wall thickness
Gas consumption reduction
80% less
Tablet defect detection capability
Up to 3%

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Cleanability
Yes

Physical Characteristics


Discharge method
Automatic connection of existing and new packaging material
Blister column shaping method
Specifically designed
Wall thickness uniformity
Uniform
Grinding apparatus replacement time
30 minutes

Custom Options


Grinding Apparatus Replacement
One-key clamp,30 min changeover
Packaging Material Integration
Automatic,without shutdown
Blister Column Shaping
Uniform wall thickness,reduced gas consumption
Detection System
High precision camera for tablet defects
Cloud System Integration
Multi-equipment capability
Containment Solutions
OEB5 solutions
