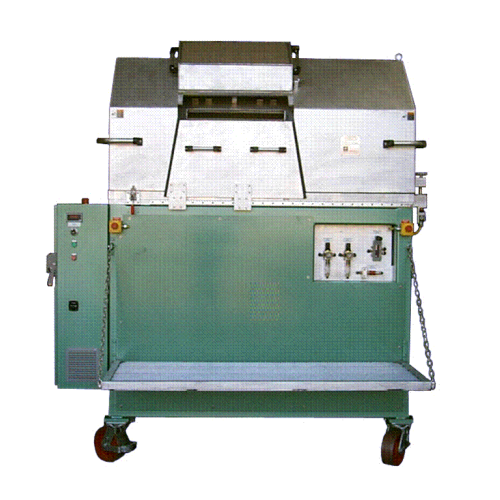

Dx strand pelletizer for plastic pellet production
Reduce operational noise while precision-cutting a wide array of thermoplastic strands into uniform pellets, ensuring high throughput and efficient integration into existing production lines.
Pelletizes and Cuts Polymers into Uniform Pellets
The DX Strand Pelletizers from Bay Plastics Machinery are designed to transform a variety of polymers—including polypropylene, polyethylene, and polyamides—into uniform pellets efficiently. This compact machine boasts an anti-flyback cutting chamber that provides precise cuts and eases noise reduction during operation. Featuring a variable frequency drive motor, the DX Strand Pelletizers support high-speed cutting and pelletizing with throughputs from 5,150 to 10,305 kg/hr, depending on the material. Typically used in plastics and polymer manufacturing, this equipment is ideal for industries like automotive, packaging, and construction.
The machine integrates seamlessly into continuous processes, utilizing a stainless steel lower feedroll driven by change gears in the rotor for enhanced control. The DX design also allows for easy on-line maintenance with a sound-dampening system and accessible cutting head for quick changes.
Bay Plastics Machinery offers numerous rotor configurations, including replaceable segment and helical designs, constructed from materials like tool steels and stellite tipped for increased durability and longevity. Compliant with sound safety measures, the DX Strand Pelletizers feature corrosion-resistant parts and a robust design that simplifies cleaning and maintenance, minimizing downtime in demanding manufacturing environments. Customization capabilities are available to tailor the equipment to specific production demands and materials.
Benefits
- Enhances production efficiency with high-throughput capabilities tailored to polymer processing.
- Minimizes noise pollution in production environments, promoting safer and more comfortable working conditions.
- Reduces maintenance time with quick-change cutting heads and easy-clean design features.
- Increases operational safety with a robust sound-dampening and corrosion-resistant construction.
- Adapts to diverse material processing needs with customizable rotor configurations.
- Applications
- Polymers,Polyethylene,Polyamides,Polycarbonate,Polypropylene,Thermoplastic elastomers,Pet,Plastics,Thermoplastics
- End products
- Polycarbonate pellets,Polyamide pellets,Polyethylene pellets,Pet pellets,Thermoplastic elastomer pellets,Nylon pellets,Plastic pellets,Polypropylene pellets
- Steps before
- Extrusion,Strand Formation,Cooling,Conveying
- Steps after
- Pellet Cooling,Drying,Packaging,Quality Control
- Input ingredients
- polypropylene,polyethylene,nylon,polymethyl methacrylate,general purpose polystyrene,styrene-acrylonitrile,acrylonitrile styrene acrylate,high impact polystyrene,acrylonitrile butadiene styrene,polyurethane,polyamide,polyethylene terephthalate,polybutylene terephthalate,polycarbonate,glass fiber reinforced plastics
- Output ingredients
- plastic pellets,3mm x 3mm pellets,2.5mm diameter x 2.5mm long pellets
- Market info
- Bay Plastics Machinery is known for manufacturing pelletizing equipment and systems, recognized for their innovation and quality in the plastics industry. They specialize in developing customized solutions for polymer processing, focusing on efficiency and reliability.
- Compact Design
- Yes
- Sound Dampening System
- Yes
- Rotor Type
- Helical / Solid with replaceable blades
- Material of Rotor
- Tool steels / Stellite tipped / Cemented carbide
- Feedroll Finish
- Serrated / Knurled / Smooth
- Upper Feedroll Material
- Stainless steel core with Hypalon covering
- Service Life
- Long
- Maintenance
- Easy on-line access
- Safety System
- Interlock system
- Motor Size
- 30 kW (40 HP) / 37 kW (50 HP) / 45 kW (60 HP)
- Strand Speed
- 30-90 m/min (100-300 FPM)
- Working Width
- 600 mm (23.6 in) / 800 mm (31.5 in) / 1000 mm (39.4 in)
- Throughput
- 5,150 kg/hr to 10,495 kg/hr
- Product Compatibility
- PP,PE,PA,PMMA,GPPS,SAN,etc.
- Working Mechanism
- Strand Pelletizing
- Noise Reduction
- Sound Dampening System
- Automation Level
- Manual
- Cutting Head Changeover
- Quick-change
- Material Handling
- Anti-flyback cutting chamber
- Feedroll Control
- Fixed upper feedroll,serrated lower feedroll
- Maintenance Access
- Easy access for maintenance
- Abrasion resistance
- High
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Cleanability
- Easy to clean
- Machine footprint
- Various dimensions based on model
- Cutting chamber design
- Anti-flyback
- Sound dampening system
- Included
- Feedroll material
- Stainless steel with elastic cover
- Rotor type
- Replaceable segment,solid type,or milling type helical design
- Feed method
- Stand Infeed assembly with feedrolls
- Rotor type
- Replaceable segment / milling type helical / solid with replaceable blades
- Lower feedroll finish
- Serrated / Knurled / Smooth / Friction coatings
- Upper feedroll covering
- Hypalon / High temperature / Abrasive material covering
- Noise reduction system
- Sound Dampening System
- Cutting head maintenance
- Quick-change / On-line maintenance
- Material choices for rotors
- Tool steels / Stellite tipped / Contamination free cemented carbide / Replaceable carbide inserts
- Strand infeed control
- Standalone / Upper Feedroll Support
- Cleaning,maintenance
- Easy access design
- Safety features
- Safety interlock system
- Corrosion resistance
- Corrosion resistant materials above mounting plate
- Liner material
- Cut resistant / Smooth surface liner
