Dust filter for food processing
Ensure high-quality powder production with this self-cleaning dust filter, designed to minimize contamination risk and optimize air filtration in continuous processes.
Filters and Self-Cleans Powder for Hygienic Processing

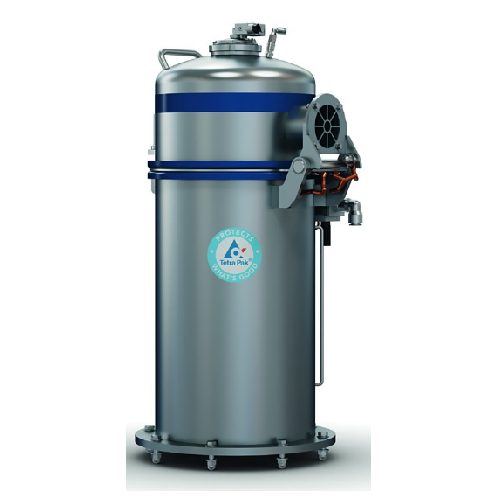

The Tetra Pak® Dust Filter FL002 is engineered for efficient and hygienic powder filtration in food, beverage, and nutrition industries. Its self-cleaning mechanism prevents dust accumulation and ensures continuous operation, essential for maintaining product quality in applications such as infant formula and plant-based powders. Designed with a compact, cylindrical body, it facilitates easy integration into existing processing lines, while ergonomic access simplifies maintenance. With a filtration surface of 0.7 m² and fan outflow of 190 m³/h, the FL002 ensures effective air exchange and particle separation. Crafted from stainless steel, it complies with EC, ATEX, FDA, and 1935/2004/CE regulations, guaranteeing safety and longevity in demanding environments.
Benefits
- Ensures high product purity by significantly reducing foreign particles in powder processing.
- Minimizes maintenance interruptions with complete and fast self-cleaning cycles.
- Enhances safety and compliance, meeting EC, ATEX, FDA, and 1935/2004/CE standards.
- Facilitates compact and seamless integration into tight production spaces.
- Maintains optimal air quality and hygiene to prevent contamination in sensitive applications.
- Applications
- Nutrition applications, Plant-based powder, Food processing, Milk powder, Infant formula powder, Whey processing, Dairy products, Powder products
- End products
- Whey protein isolate, Vegan protein powder, Infant formula, Lactose-free milk powder, Protein shakes, Almond milk powder, Nutritional supplements, Oat milk powder, Soy protein isolate, Milk protein concentrate, Casein powder
- Steps before
- Mixing, Pneumatic conveying, Discharging from hopper
- Steps after
- Packing
- Input ingredients
- air, powder, dust
- Output ingredients
- clean air, filtered air, separated powder, dust-free environment
- Market info
- Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.
- Filtration surface
- 0.7 m²
- Fan outflow
- 190 m³/h
- Filtration type
- Dust filtration
- Self-cleaning capability
- Fast and complete
- Air exchange rate
- Volumetric
- Hygiene standard
- High
- Compliance
- EC and ATEX-compliant, 1935/2004/CE, US FDA
- Material
- Stainless steel
- Self-cleaning mechanism
- Fast and complete
- Design flexibility
- Compact, ergonomic design
- Maintenance accessibility
- Ergonomic access for maintenance
- Air exchange capability
- Volumetric air exchange
- Filtration type
- Powder and dust separation
- Hygiene level
- High hygienic standards
- Compliance
- EC and ATEX-compliant
- Regulatory standards
- Certified according to 1935/2004/CE and US FDA
- Application versatility
- Mixing, pneumatic conveying, discharging
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Typical use
- Nutrition applications
- Optional use areas
- Mixing, pneumatic conveying
- Compact footprint
- Small and compact design
- Material
- Stainless steel
- Design
- Cylindrical body
- Filter Surface Area
- 0.7 m²
- Fan Outflow
- 190 m³/h
- Self-cleaning capability
- Fast and complete
- Ergonomic Access
- Yes
- Control panel type
- Touchscreen
- Integration possibilities
- Suitable for existing installations
- Fan integration
- Optional
