Dual lane x-ray inspection system for cosmetics
Optimize your production line with dual-lane x-ray technology that ensures precise contaminant detection and ejection, effectively safeguarding product quality without the need for separate inspection systems.
Detects and Rejects Contaminants in Dual Production Lanes

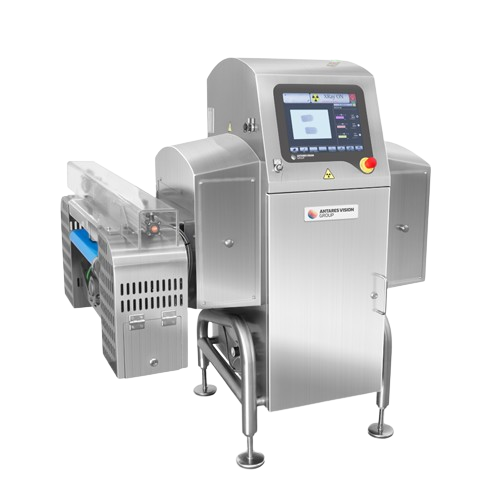

The Dual Lane X-Ray Inspection System from Antares Vision Group offers a sophisticated solution for detecting contaminants in the cosmetics and food industries. It uniquely combines top-down scanning technology with dual-lane processing, eliminating the need for two separate systems while maintaining high detection accuracy. This system is ideal for inspecting products such as lipstick, mascara, foundation bottles, baked goods, and soda cans, ensuring quality across diverse solid product types. With an operational speed of up to 70 m/min, it seamlessly integrates into high-speed, automated production lines, reducing total cost of ownership and minimizing waste via customizable ejection modules. The system features a color touch screen for intuitive control, and compliance with Industry 4.0 standards provides advanced interconnection and remote support capabilities. Its robust design meets CE, BRC, IFS, and HACCP certifications, with an IP65 protection degree ensuring durability in demanding environments.
Benefits
- Reduces operational costs by eliminating the need for separate inspection systems, consolidating dual-lane processing.
- Minimizes product waste using precise ejection of contaminated items only.
- Enhances quality assurance by effectively detecting high-density physical contaminants, safeguarding brand reputation.
- Simplifies user operations with an intuitive touch screen interface, reducing training time and errors.
- Facilitates seamless production integration with Industry 4.0 compliance, enabling advanced connectivity and remote support.
- Applications
- Food,Beverage,Rigid containers,Cosmetics
- End products
- Glass jars,Baked goods,Plastic bottles,Mascara,Foundation bottles,Soda cans,Snack bars,Jam jars,Canned beverages,Lipstick
- Steps before
- Product Loading,Conveyor Alignment,Pre-inspection Sorting
- Steps after
- Product Ejection,Contaminant Rejection,Final Packaging
- Input ingredients
- products on two lanes,high-density physical contaminants
- Output ingredients
- inspected products,contaminated products rejected
- Market info
- Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.
- Control Panel
- Colour touch screen 15″
- Data Processing Electronics
- RISC Embedded FPGA
- Generator
- Latest generation – up to 100W – electronic and integrated cooling module
- Self-learning System and Calibration
- Included
- Data and Images Collection Software
- Included through Ethernet and USB
- Kit for Remote Assistance
- Included
- Compliance Industry 4.0
- With Bidirectional Communicator
- Linear Speed
- Up to 70 m/min
- Protection Degree
- IP65
- X-ray inspection
- Top-down beam
- Conveyors Width (Model EL 300)
- 290 mm
- Conveyors Width (Model EL 400)
- 390 mm
- Conveyors Width (Model EL 500)
- 490 mm
- Automation level
- Single operator interface
- Dual lane operation
- X-ray inspection on two lanes
- Contaminant detection
- Foreign body identification
- Ejection system
- Customizable ejection modules
- Waste minimization
- Rejects only contaminated products
- Energy efficiency
- Maintenance-free cooling module
- Data handling
- Data and Images Collection Software
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Detection Type
- X-ray (top-down beam)
- CE marking
- Yes
- BRC certification
- Yes
- IFS certification
- Yes
- HACCP compliance
- Yes
- Machine Footprint
- Compact
- Conveyors Width
- 290 mm / 390 mm / 490 mm
- Control Panel Type
- Color touch screen 15″
- X-Ray Beam Type
- Top-down
- Protection Degree
- IP65
- Control panel type
- Colour touch screen 15″
- Data and images collection
- Included through Ethernet and USB
- Remote Assistance Kit
- Included
- Ejection Modules
- Double ejection cylinder in opposite positions
