Dual dosing and topping system for bakery products
Enhance your bakery’s production efficiency with advanced dosing and topping technology, perfect for creating intricately decorated pastries and high-precision confectionery products.
Deposits and Decorates Bakery and Pastry Products

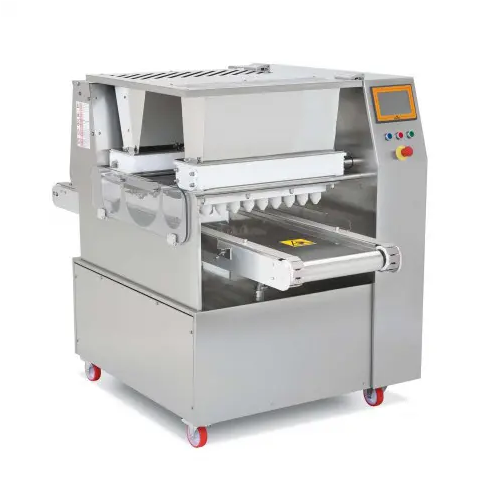

The DOBLE machine from Mimac Italia offers an advanced solution for automated decoration and dosing in bakery and pastry production. Featuring dual independent dosing units, this equipment excels in creating products with intricate toppings and precise depositing, making it ideal for items such as decorated cupcakes, spritz cookies, and macarons. The DOBLE is engineered for high-speed operations, facilitating swift integration into existing production lines. Equipped with a 7-inch color touch screen, it allows intuitive programming and recipe storage for up to 200 variations, optimizing production flexibility. Its stainless steel and aluminum construction ensures durability and compliance with food safety standards. The machine’s roller and pump heads, with variable speed control, deliver consistent product quality while accommodating various dough consistencies. Optional features include a front USB port for easy data transfer and software for multilayer product deposition. Maintenance is straightforward with easily detachable food contact parts for cleaning. Mimac Italia provides engineering support for customization to meet specific production needs.
Benefits
- Enhances production efficiency with rapid cycle times of up to 25 cycles per minute.
- Increases product variety by supporting up to 200 programmable recipes.
- Ensures consistent quality and aesthetics for complex pastries with dual dosing units.
- Minimizes clean-up time with easily detachable food contact parts.
- Adapts to diverse production needs with customizable molds and nozzles.
- Applications
- Cookies,Biscuits,Muffins,Confectionery,Decorative pastries,Pastry,Cakes,Bakery products,Dough-based products
- End products
- Spritz cookies,Layered pastries,Chocolate chip cookies,Filled doughnuts,Cream puffs,Shortbread biscuits,Gingerbread cookies,Sprinkled doughnuts,Macarons,Eclairs,Tart shells,Fondant-covered cakes,Marbled muffins,Decorated cupcakes,Almond biscotti
- Steps before
- Mixing,Ingredient Preparation,Homogenization
- Steps after
- Decorating,Baking,Packaging
- Input ingredients
- Output ingredients
- Market info
- MIMAC Italia is known for manufacturing high-quality bakery equipment, specializing in cookie and pastry depositing machines that cater to artisanal and industrial needs, praised for innovation, reliability, and customization.
- Tray width
- 600 mm
- Cycles per minute
- 25 cycles/min deposited + top decoration
- Maximum stroke
- 120 mm
- Material
- Stainless steel and aluminium structure with stainless steel covers
- Screen type
- 7’’ colour touch screen
- Mold and nozzle range
- Large range,customizable on demand
- Roller head diameter
- Ø80mm stainless steel rollers
- Pump head diameter
- Ø55mm stainless steel cylinders
- Control type
- Electronically controlled variable speed
- Nozzle rotation
- Variable speed motor powered
- Wire cutting device
- Variable speed motor powered
- Table lowering software
- For multilayer products or open flame
- USB port
- Front USB port for recipe saving and restoring (on request)
- Dimensions
- 2000 x 1100 x H 1380 mm
- Weight
- 460 kg
- Hopper capacity (roller head)
- 35 lt
- Hopper capacity (pump head)
- 25 lt
- Power supply
- 230 V – 50/60 Hz – 1ph
- Working mechanism
- Depositing and wire-cutting
- Integrated steps
- Dosing and topping
- Automation level
- Electronic control
- Variable speed control
- Yes
- Recipe memorization
- Up to 200 recipes
- Changeover time
- Easily removable parts for quick cleaning
- Cleaning method
- Manual removable parts
- Batch vs. continuous operation
- Batch (portion-wise depositing)
- Machine footprint
- 2000 x 1100 x H 1380 mm
- Tray width
- 600 mm
- Material
- Stainless steel and aluminium
- Weight
- 460 kg
- Control panel type
- 7’’ colour touch screen
- Control panel type
- 7’’ colour touch screen
- Integration possibilities
- Front USB port for recipe saving and restoring
- Nozzle rotation
- Variable speed motor powered
- Wire cutting device
- Variable speed motor powered
