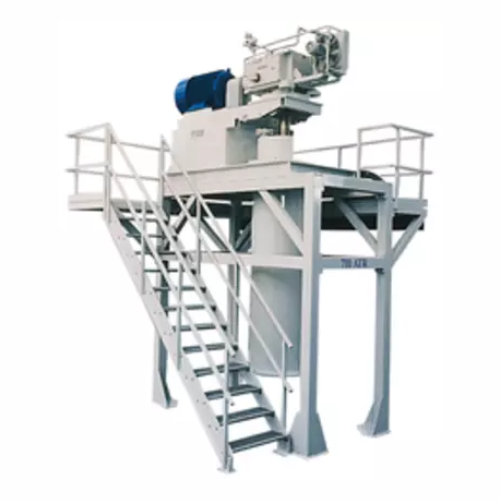

Dry grinding mill for superfine products
Achieve high fineness in your comminution processes with this advanced dry grinding mill, ideal for producing ultrafine particles with precise classification, minimizing waste and maximizing efficiency in your production line.

Achieves Superfine Grinding and Particle Classification
The ATR Dry Grinding Mill, part of Hosokawa Alpine’s advanced powder processing solutions, excels in achieving superfine particle sizes necessary for high-quality end-products such as ceramic tiles and white pigments. It operates using a vertical agitated media milling system where a rotating agitator shaft stirs ceramic grinding beads within a water-cooled chamber, ensuring a consistent milling process ideal for mineral fillers and glazing raw materials. This mill supports a processing capacity tailored for continuous operations, seamlessly integrating into existing production lines with its PLC-controlled features. Offering options for aluminum oxide or custom wear-resistant materials, it maintains material purity by minimizing contamination. Energy efficiency is maximized through low peripheral speeds while grinding beads can be recycled back into the process. Customization options include specialized grinding bead materials and chamber linings, backed by Hosokawa Alpine’s engineering support, to meet diverse industrial needs, from chemical producers to food processing companies.
Benefits
- Enhances material purity by utilizing iron-free grinding.
- Minimizes operational costs with low grinding media wear.
- Increases product uniformity with precise particle classification.
- Cuts energy consumption due to optimal peripheral speeds.
- Extends service life with wear-resistant material options.
- Applications
- Limestone,Titanium dioxide,Aluminium oxide,Zircon sand,Ceramic colours,Frits,Quartz,Wheat flour,Starch,Glazing raw materials,Non-mineral hard materials,Talc,Mineral fillers
- End products
- Bread rolls,Alumina ceramics,Wall paints,Ceramic glazes,Zirconia dental crowns,Ceramic tiles,White pigments for coatings,Bakery products,Talcum powder,Decorative ceramics
- Steps before
- Pre-crushing,Material feeding
- Steps after
- Screening,Classifying,Packaging
- Input ingredients
- mineral fillers,glazing raw materials,non-mineral hard materials,limestone,quartz,zircon sand,talc,ceramic colours,frits,titanium dioxide,feed material up to 100 µm,starch,wheat flour
- Output ingredients
- superfine products,mineral fillers with high whiteness,glazing raw materials,non-mineral hard materials,ultrafine comminution products,flour with increased water absorption capacity
- Market info
- Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.
- Dry media mill fineness
- Approx. 80% <2 µm
- Mill housing
- Double-walled,water cooling
- Circuit mode operation
- With Turboplex ultrafine classifiers
- Agitator peripheral speed
- 2.5 – 3 m/s
- Automation
- Motor-connected gear unit
- Grinding beads size
- Few millimetres
- Feed material size
- Not exceed 100 µm
- Fineness values
- Up to 90% < 2 µm
- Capacity relative to machine size
- Approx. 200 kW/m³ beads
- Peripheral speed
- Low
- Energy utilisation
- Optimum
- Grinding media wear
- Low
- Operating costs
- Low
- Service life of lining
- Extremely long
- Maintenance costs
- Low
- Grinding aid
- Added to prevent deposits
- Grinding beads materials
- Aluminium oxide or special-grade steel
- Product coating
- Possible during grinding
- Grinding beads diameter
- Between 2 mm and 5 mm
- Cooling medium
- Water and air
- Temperature control
- Below 50°C for flour
- Working mechanism
- Vertical agitated media mill
- Automation level
- Manual / PLC
- Batch vs. continuous operation
- Circuit mode with classifier
- CIP/SIP
- N/A
- Cleaning method
- N/A
- Cooling integration
- Double-walled for water cooling
- Grinding beads size
- 2 mm to 5 mm
- Temperature control
- Water cooling of the mill jacket
- Abrasion resistance
- High
- Corrosive resistance
- Yes,for non-acidic materials
- Cleanability
- High,suitable for sanitization
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Biological compatibility
- Non-biological materials
- Abrasiveness of material
- Yes/No
- Heat sensitivity
- Yes/No
- Viscosity
- Low/Medium/High
- Foaming tendency
- Yes/No
- Container size and shape
- Customizable
- Material hardness
- Soft/Hard/Very Hard
- Grinding media wear
- Low/Medium/High
- Machine footprint
- Compact design
- Discharge method
- Discharge screw and screening machine
- Grinding beads size
- Few millimetres in diameter
- Cooling method
- Water cooling
- Agitator speed
- 2.5 – 3 m/s
- Cooling option
- Water cooling
- Material Options
- Aluminium oxide,Steel
- Agitator Arm Protection
- Aluminium oxide tips,Hardfacing
