Drum unloader for liquid ingredients
Unlock efficient unloading of viscous and liquid ingredients without the hassle of lifting or tipping, ensuring smooth integration into your existing process. Designed to reduce batch preparation times and improve ergonomic handling, it’s the ideal solution for high-capacity production lines handling diverse ingredients.
Unloads and Fluidizes Viscous Liquid Ingredients

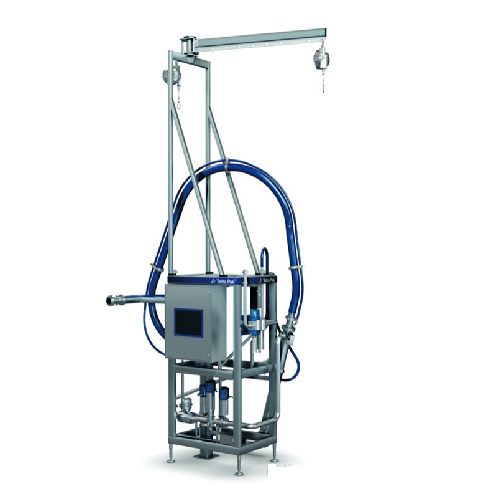

The Tetra Pak® Drum Unloader offers a sophisticated solution for unloading viscous liquid ingredients efficiently in food and beverage production. Featuring water injection technology, it facilitates quicker flow and fluidization right at the suction head, effectively streamlining the unloading of fruit concentrates, oat slurries, and pastes. With a lance diameter of just 66 mm, this unit offers reduced handling weight compared to conventional systems, enhancing operator ergonomics and reducing manual strain. The patented suction check valve ensures no liquid backflow, maintaining high capacity operations while preventing the suction of drum inlays. Designed for integration into existing setups, this equipment is ideal for semi-automatic or manual operations, catering to processing departments handling liquid and slurry product types. The weight balancing system offers ergonomic benefits, removing the need for drum tipping and minimizing contamination risks. This unloader can be customized with a pneumatic arm for operations handling multiple drums per hour, making it a versatile choice for juice and concentrate producers, dairy product manufacturers, and more.
Benefits
- Accelerates processing by reducing ingredient flow time through water injection technology.
- Enhances operator safety and ergonomics with lightweight handling design.
- Prevents contamination with floor-level unloading and anti-inlay suction check valve.
- Increases unloading efficiency with semi-automatic handling options for high-volume operations.
- Minimizes manual effort and potential injuries with a weight balancing system.
- Applications
- Liquid ingredients,Viscous ingredients,Oat slurries,Flavours,Fruit concentrates,Pastes,Juices
- End products
- Chocolate syrup,Apple puree,Pineapple juice,Honey,Vanilla extract,Maple syrup,Mango pulp,Peanut butter,Tomato paste,Orange juice concentrate
- Steps before
- Drum filling,Ingredient preparation,Concentration
- Steps after
- Mixing,Blending,Formulation
- Input ingredients
- fruit concentrates,oat slurries,pastes,juices,flavours,liquid ingredients
- Output ingredients
- processed liquid ingredients
- Market info
- Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.
- Drum size
- Up to 200 L
- Lance diameter
- 66 mm
- Hose length
- 5.5 m
- Weight of lance and hose
- 48 kg
- Unloading method
- Water injection technology
- Automation
- Semi-automatic handling with pneumatic arm
- Working Mechanism
- Water Injection Technology
- Batch vs. Continuous Operation
- Batch
- Ergonomic Handling
- Weight Balancing System
- Cleaning Method
- CIP Capable
- Automation Level
- Semi-automatic Handling
- Floor-level Unloading
- Prevents Tipping
- Cleanability
- High
- Biological compatibility
- Suitable for food-grade materials
- Corrosive resistance (e.g. acids)
- Yes,resistant
- Abrasion resistance
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Lance Diameter
- 66 mm
- Hose Weight
- 48 kg with 5.5 m hose full of concentrate
- Unload Capacity
- Up to 200 litres
- Control panel type
- Semi-automatic with pneumatic arm
- Integration possibilities
- Water injection technology for faster ingredient flow
- Discharge method
- Lance and hose system
- Weight balancing system
- Manual with overhead mechanical support
