Digital doser system for plastics additive feeding

Achieve precise additive dosing for plastics, ensuring consistent quality in injection molding, blow molding, and extrusion processes.

Precisely Feeds Additives in Plastics Processing

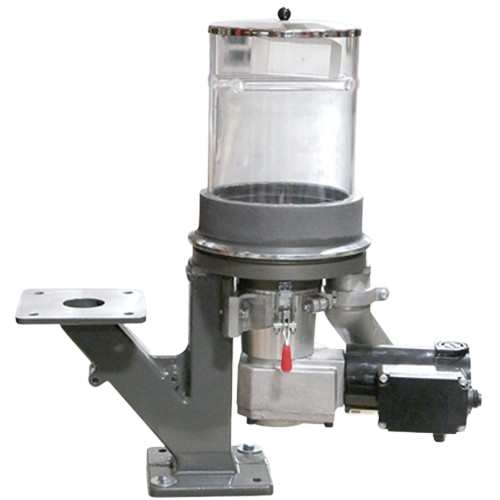

The DD Series Digital Doser System, part of the AEC lineup, specializes in precise, variable-speed additive feeding for plastics processing applications, including injection molding, blow molding, and extrusion. Utilizing a variable speed DC drive motor and precision design discs, it ensures accurate, repeatable dosing of pellets or powders. This system supports high-speed, continuous operations and is highly valued for producing plastic bottles, automotive parts, and custom polymer blends.

Enhancing production efficiency, the DD Series offers quick material changeovers with optional spare stations, minimizing downtime and reducing safety risks. It operates within a robust closed-loop control framework, which significantly enhances dosing accuracy. Choose from diverse styles and sizes of dosing discs and hopper capacities to match specific processing needs, including optional dual additives with the DD2 configuration.

Integration into existing systems is seamless, with features such as quick disconnect hoppers allowing off-machine cleaning and 6-inch square mounting flanges for sturdy attachment. The system’s automation capabilities are bolstered by a variable-speed drive and A250 feeder control, while an audible alarm and low-level sensors maintain operational oversight. For extra versatility, the system can be equipped with special voltage options and larger base pieces to accommodate bigger machinery. The equipment is constructed from durable materials suitable for the harsh environments of plastics manufacturing, ensuring long-lasting performance and compliance with rigorous industry standards.

Benefits

  • Enhances product consistency by ensuring precise, reliable additive dosing.
  • Minimizes downtime with swift material changeovers and optional spare stations.
  • Reduces operational costs with efficient variable-speed control and minimal energy usage.
  • Increases production flexibility with dual additive capability in the DD2 configuration.
  • Improves safety by lowering risks associated with material handling and equipment maintenance.

General


Applications
Blow molding,Extrusion,Additives,Plastics,Injection molding
End products
Plastic bottles,Custom polymer blends,Automotive parts,Colorant masterbatches,Uv stabilizers,Flame retardants,Plastic containers,Plastic furniture,Plastic toys,Pvc pipes,Packaging films
Steps before
Material Handling,Blending,Conveying,Drying
Steps after
Extrusion,Injection Molding,Blow Molding
Input ingredients
pellets,micro pellets,granulate,powders,additives
Output ingredients
precise additive feeding,material feed
Market info
AEC (ACS Group) is known for manufacturing industrial equipment such as cooling, heating, and conveying solutions, serving various industries with a reputation for high-quality engineered-to-order systems and reliable customer support.

Technical Specifications


Accuracy
High accuracy with closed loop control
Automation
Closed loop drive
Material changeover
Quick connect clamps
Additive feed options
Pellet or powder
Dual additive option
Available in DD2 configuration
Operating voltage
110/1/60
Hopper capacity
4.4 liter
Alarm type
Audible,Alarm Light,Low Level Sensors
Motor speed options
Variable

Operating Characteristics


Working mechanism
Variable speed DC drive motor and dosing disc
Integrated steps
Closed loop control
Material changeover
Quick connect clamps for ease
Changeover time
Immediate with spare station use
Batch vs. continuous operation
Continuous
Automation level
Automatic with PLC

Material Compatibility


Pellet compatibility
Yes
Micro pellet compatibility
Yes
Granulate compatibility
Yes
Powder compatibility
Yes
Cleanability
Quick disconnect for off-machine cleanout

Product type Characteristics


Plastic Processing
Injection molding / Blow molding / Extrusion

Physical Characteristics


Machine Footprint
N/A
Feed/Discharge Method
Disc style feeder module
Additive Hopper Size
4.4 liters
Material Feed Tube Diameter
2 inches
Mounting Flange Size
6 inches square
Machine Configuration Options
DD2 configuration for dual additives
Optional Larger Base
3 inches or 4 inches

Custom Options


Disc style feeder module
Pellets,micro pellets,granulate,powders
Variable speed drive
Closed loop control
Hopper capacity
4.4 liters
Material feed tube size
2" diameter with 6" square mounting flanges
Spare station option
Immediate additive changes
Motor speeds
Optional
Hopper loaders
Automatic refill
Special voltage
Optional
Larger base piece
3" or 4" for larger processing machines
