Cross-flow filtration unit for clarifying juice and wine

Achieve optimal clarity and yield with this semicontinuous cross-flow filtration system, designed for high solid content management and efficient filtration of juices, wines, and fermentation broths, ensuring top-quality end products.

Clarifies and Filters High-Solid Content Liquids

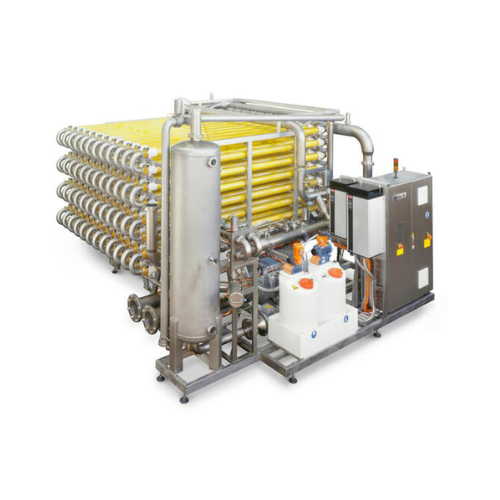

The UltraStar XL from Bucher Unipektin is a semi-continuous cross-flow ultrafiltration unit designed to tackle the complex challenge of clarifying liquids with medium to high suspended solids content. Utilizing large-diameter tubular membranes, this system excels in the filtration and clarification of fruit juices, wines, and aqueous plant extracts, making it indispensable for food, beverage, and biotechnology industries. The unit operates by circulating product through ½’’ diameter membrane tubes, allowing for separation as permeate exits the system, maximizing product yield and quality. Capable of processing multiple applications such as apple, pear, and citrus juices, as well as herbal plant extracts and fermenter broths, it adeptly manages high-capacity operations due to its modular design.

The UltraStar XL’s fully automated system features an integrated PLC with a touch panel for seamless operation and includes CIP (Clean-In-Place) for efficient maintenance. Its compatibility with a range of membrane types, including UF and PVDF, offers flexibility in cut-off specifications to meet diverse filtration requirements. With a connected load between 36-85 kW and available membrane areas ranging from 83 to 499m², the unit is designed for energy efficiency while accommodating different throughput demands. The corrosion-resistant design with temperature and pH range adaptability (10-55°C, pH 2.0-10.5) ensures durability and reliability in rigorous production environments.

Benefits

  • Enhances product yield and quality with effective high solids management.
  • Minimizes labor intervention through a fully automated PLC-controlled system.
  • Reduces footprint requirements with a compact modular design.
  • Ensures efficient cleaning and minimal contamination risk with integrated CIP.
  • Adapts easily to varied applications with customizable membrane cut-offs.

General


Applications
Fermenter broths,Biotechnology,Fermentation broths,Aqueous plant extracts,Food industry,Wines,Fruit wines,Fruit juices
End products
Protein solution,Citrus juice,Plant-based beverage,Yeast broth,Apple juice,Pear juice,Pineapple juice,Fortified wine,Cider,Herbal plant extract,Berry juice,Lactic acid ferment,Sparkling wine
Steps before
Grinding,Crushing,Extraction
Steps after
Diafiltration,Sterilization,Packaging
Input ingredients
fruit juices,wines,aqueous plant extracts,fermentation broths,apples,pears,berries,stone fruits,citrus fruits,pineapples,aqueous suspensions,medium to high suspended solids
Output ingredients
clarified juice,clarified wine,clarified plant extracts,clarified fermentation broths,permeate
Market info
Bucher Unipektin is known for producing advanced equipment and systems for the food and beverage industry, specializing in juice processing and filtration technologies with a reputation for innovative solutions and reliable, high-quality products.

Technical Specifications


Membrane type
UF,PVDF membranes with cut off approx. 100 kD or 250 kD
Membrane area
83 - 499m2
Temperature range
10 - 55 °C
PH-range
2.0 - 10.5
Connected load
36 - 85 kW
Dimensions for units < 250m2
3’317 x 4’432 x 3’ (W x L x H in mm)
Dimensions for units > 250m2
4’794 x 4’432 x 3’496 (W x L x H in mm)
Automation
Fully automated PLC control with touch panel

Operating Characteristics


Working Mechanism
Cross-flow ultra filtration
Integrated CIP System
Yes
Flow Type
Semicontinuous
Automation Level
Fully Automated PLC Control
Tank Management
Integrated Control System
Modular Design
Yes,high performance on small footprint
Diafiltration
Optionally available

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Glass / PET

Physical Characteristics


Machine footprint
,lt
250m²
3’317 x 4’432 x 3’ (W x L x H in mm)
Units,gt
250m²
4’794 x 4’432 x 3’496
Tubular membrane size
½’’ diameter
Membrane module housing
4’’ housing,L = 3.6 m
Membrane area range
83 - 499m²
Control panel type
Fully automated PLC control with touch panel
Discharge method
Cross-flow filtration - permeate leaves the system through membrane
Feed method
Fresh product continuously added into the circulation tank
Tank management
Integrated

Custom Options


Control panel type
PLC control with touch panel
Integration possibilities
Integrated CIP system and tank management
Design type
Modular design
