Crate washer with adaptive jetting units

Ensure consistent cleanliness of beverage crates with a washer that adapts to varying sizes, optimizing your bottling and packaging process through precise jetting and enhanced washing performance.

Cleans and Flushes Beverage and Plastic Crates

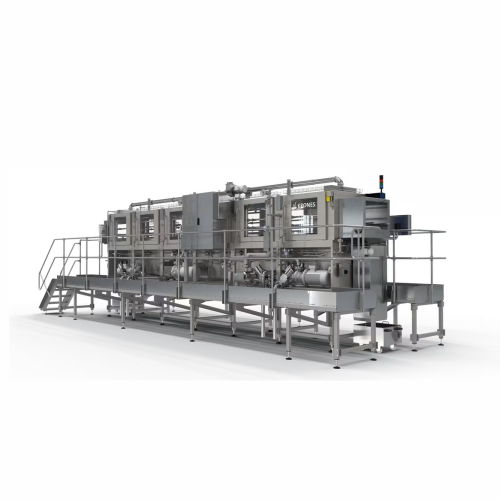

The Krones Linajet Crate Washer is engineered to elevate your bottling and packaging operations with its adaptive jetting system, offering precise cleaning for diverse crate sizes. Its modular design enables seamless integration into high-speed production lines while minimizing downtime. Designed for food and beverage industries, the Linajet tackles cleanliness challenges by ensuring consistent washing and flushing of beverage and plastic crates, applicable to soda bottles, juice containers, and more. It efficiently handles up to 4,500 packs per hour in single-lane settings, operating continuously for reliable performance. With options for heating, external crate blowing, and increased treatment times, it optimizes resource use and reduces environmental impact. Accessible design and automated controls provide ease of maintenance, while optional fume extraction enhances operational conditions. Customizable to fit specific needs, the Linajet ensures swift changeovers and maintenance with integrated sand separation, making it a versatile solution for clean and efficient crate handling.

Benefits

  • Enhances operational efficiency with consistent cleaning across varied crate sizes.
  • Reduces resource consumption through integrated heating and blowing options.
  • Decreases maintenance time with accessible design and quick changeovers.
  • Minimizes environmental impact with energy-efficient operations and fume extraction.
  • Accommodates high-speed production demands, processing up to 4,500 packs per hour.

General


Applications
Beverage crates,Plastic crates,Bottling and packaging equipment
End products
Energy drink cans,Wine bottles,Beer cans,Mineral water bottles,Soda bottles,Milk cartons,Soft drink bottles,Juice bottles,Spirits containers,Kombucha bottles
Steps before
Collection,Sorting
Steps after
Packaging,Labelling
Input ingredients
dirty plastic crates,various crate sizes,beverage crates
Output ingredients
clean crates,consistent cleaning results
Market info
Krones is renowned for its expertise in manufacturing beverage and liquid food processing and packaging equipment, offering comprehensive solutions that include filling, packaging technology, and processing systems, and is reputed for innovation and quality in the industry.

Technical Specifications


Output Range
Up to 4,500 packs/h
Crate Sizes
375-E,500-E,625-E,750-E,875-E
Jetting Pressure
5 bar,optional 25 – 30 bar
Treatment Time
18 seconds (KGW 750-E),48 seconds (TBW 810)
Heating Availability
Optional
Fume Extraction System
Optional at infeed and discharge
Tank Volume
Increased for lower polluting load
Chemical Treatment
Optional dosing
Width Adjustment System
With crank
Adaptive High-Pressure Injection System
Consistent jetting distance for different crate widths
Control Cabinet Configuration
Mounted on machine,cable-connected
Change-over Ease
Spindle drive located at central position
Connected HMI
Integrated with new touch-screen

Operating Characteristics


Working mechanism
Adaptive high-pressure injection system
Batch vs. continuous operation
Single-lane operation
Changeover time
90 percent less change-over work
Automation level
Connected HMI with touch-screen
Cleaning method
Jetting,Flushing,and Immersion
Energy efficiency
Gentle on resources through interface with bottle washer
Ease of access
Doors and manholes for quick access

Material Compatibility


Cleanability
High
Abrasion resistance
Robust against wear
Corrosive resistance (e.g. acids)
High resistance

Physical Characteristics


Machine sizes available
375-E,500-E,625-E,750-E,875-E
Modular design
Yes
Output range
Up to 4,500 packs/h
Footprint compatibility
Single-lane operation
Jetting unit adaptability
Adaptive high-pressure injection system
Control cabinet options
Mounted and cable-connected
Treatment time options
18 seconds (KGW 750-E),48 seconds (TBW 810)

Custom Options


Control panel type
Connected HMI with touch-screen
Discharge method
Fume extraction system at the discharge
Width adjustment system
With crank for gripper and lateral crate guide
Automation level
PLC-controlled
Adaptive high-pressure injection system
Consistent jetting distance for different crate widths
Heating option
Heating and external crate blowing optionally available
