Crane scales for precise weighing in chassis

Optimize space with low-profile crane scales, ensuring accurate weight measurement in tight retrofitting scenarios.

Measures Ladle Weights with High Precision

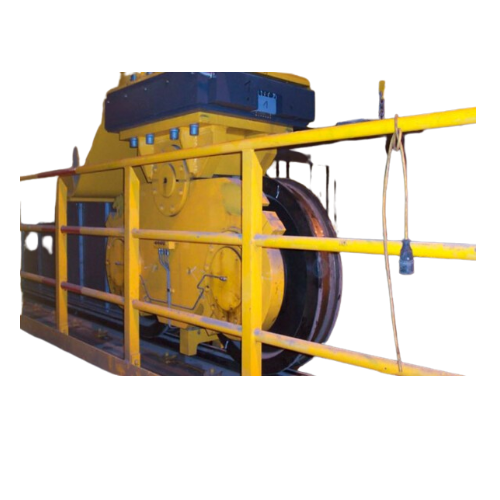

The Crane Scales – Weighing in the Chassis from Qlar offer a precise and low-maintenance solution for steel producers and industries with constrained spaces in crane operations. This system integrates multiple SENSiQ WB weighbeams between the crane frame and chassis to ensure accurate ladle weight measurement. Designed for seamless retrofit even in tight spaces, the crane scales eliminate the need for moving parts, reducing maintenance demands. The static weighing units, which are permanently secured, effectively handle dynamic loads without critical cable connections, common in cross-beam installations. Ideal for applications such as weighing in steel plants and biomass power generation, these scales are capable of measuring with an accuracy of up to +/- 0.1% of the limit value. Compact and modular, they offer robust protection from radiant heat, enhancing reliability in harsh industrial environments. Customization options and engineering support are available to meet specific operational needs, ensuring seamless integration into existing production lines.

Benefits

  • Enhances accuracy of weight measurements, improving process efficiency and product quality.
  • Minimizes maintenance costs with a design free of moving parts and critical cable connections.
  • Allows for easy retrofitting in limited spaces, extending equipment life without costly facility modifications.
  • Operates reliably in high-heat environments, safeguarding equipment integrity and performance.
  • Enables precise monitoring and control, supporting seamless integration into automated production lines.

General


Applications
Chemicals,Catalysts,Sealants,Ladle transfer cranes,Agrichemicals,Performance materials,Adhesives,Power plants,Steelmaking,Biomass,Batteries,Fertilizers,Cement
End products
Steel ladles,Ammonium nitrate,Polyurethane sealants,Polypropylene compounds,Wood pellets,Glyphosate,Steel ingots,Lithium-ion batteries,Portland cement,Sulfuric acid,Platinum catalysts,Electricity generation,Acrylic adhesives
Steps before
Material Handling,Transport to Crane,Loading onto Crane
Steps after
Ladle Transfer,Steel Production Processing,Cooling
Input ingredients
crane trolley,ladle transfer cranes,weighing units,SENSiQ WB weighbeams
Output ingredients
transferred ladle weight,motion forces
Market info
Schenck Process is known for its expertise in material handling, weighing, feeding, and automation solutions. The company has a strong reputation for delivering high-quality engineered-to-order equipment for diverse industries, backed by innovative technology and customer-centric service.

Technical Specifications


Installation height
Low
Maintenance
Low
Accuracy
±0.1%
Weighing units
SENSiQ WB weighbeams
Modular design
Yes

Operating Characteristics


Low installation height
Enables retrofitting in tight spaces
Ease of maintenance
No moving or wearing parts
Compact design
Protection from radiant heat
Automation level
Manual / PLC
Precise results
Accuracy up to +/- 0.1%

Material Compatibility


Abrasion resistance
High
Corrosive resistance (e.g. acids)
Corrosion-resistant materials used
Density/particle size
Compatible with dense materials and varying particle sizes
Heat resistance
Protected from radiant heat


Manufacturing standards
ISO 9001

Physical Characteristics


Installation Height
Extremely low
Footprint
Compact
Weighing Unit Design
Compact and modular
Space Requirement
Minimal,suitable for retrofitting
Protection from Radiant Heat
Good protection

Custom Options


Installation Height
Extremely Low
Integration Type
Weighing units between crane frame and chassis
Protection from Radiant Heat
Compact and Modular Design
Maintenance Requirement
Low,Due to No Moving Parts
