Cooling tunnel for Pet container hot fill cooling

Ensure product integrity with a cooling tunnel that swiftly reduces PET container temperatures after hot filling, optimizing your production line for seamless labeling and packaging.

Rapidly Cools and Prepares PET Bottled Products

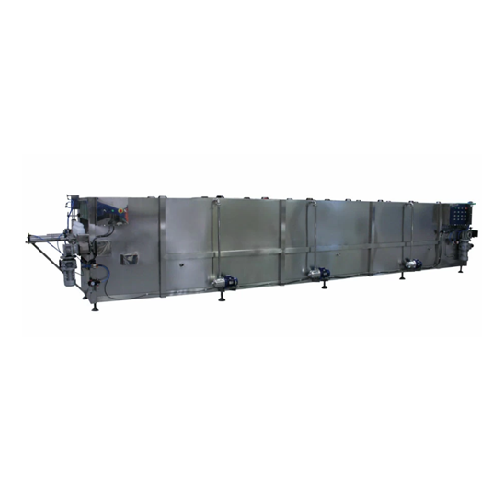

The Accutek Cooling Tunnel is engineered to expedite the cooling of PET bottled products on hot fill lines. Featuring a robust stainless steel construction, this system employs a three-stage water spray design to efficiently lower product temperatures, preventing flavor degradation and facilitating downstream labeling and packaging. With variable production speeds and a capacity to process up to 3,000 liters per hour, it accommodates diverse applications such as juices, sauces, and nutritional drinks. Energy conservation is enhanced by its hot water recycling system and sealed electrical cabinet. The tunnel supports smooth integration into existing production lines and offers customization options, including indexing systems and cooling towers.

Benefits

  • Enhances product quality by rapidly reducing temperatures to maintain flavor integrity.
  • Increases production efficiency with continuous, high-speed operation.
  • Reduces energy consumption through efficient water recycling and conservation measures.
  • Streamlines post-cooling processes, improving labeling and packaging speed.
  • Customizable setup ensures seamless integration with existing hot fill lines.

General


Applications
Beverages,Sauces,Liquid formulations,Pet bottled products,Juices
End products
Ketchup,Flavored water,Fruit smoothies,Apple juice,Nutritional supplements in pet bottles,Barbecue sauce,Orange juice,Lemon-lime soda,Iced tea,Sports drinks,Herbal tonics,Energy drinks,Vegetable juices,Tomato sauce,Sweet chili sauce
Steps before
Filling,Hot Filling
Steps after
Labeling,Packaging,Downstream Labeling
Input ingredients
PET containers,hot fill products,water
Output ingredients
cooled PET containers,reduced temperature products
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Height
55.25” (1403mm)
Length
351” (8915mm)
Depth
43.5” (1105mm)
Weight
Approx. 5500 lbs. (2500 kg)
Production Speed
Variable
Electrical
220V,60 Hz,3p,17A
Water Requirements
2000-3000L per hour
Construction Material
Stainless steel
Conveyor Type
Temperature resistance
Cooling System Type
Water spray system
Cooling Zones
Three stage / zone design
Hot Water Recycling
Available
Sealed Cabinet
Sealed electrical cabinet

Operating Characteristics


Working mechanism
Water spray cooling
Integrated steps
Three zone/stage design
Automation level
PLC-controlled
Cooling process
Expedited post hot fill
Temperature control
Hot water recycling system
Changeover time
Optimized for efficiency

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Stainless steel
Cleanability
Easy to clean
Temperature resistance
Withstands hot water

Product type Characteristics


Container type
PET
Heat sensitivity
Yes

Physical Characteristics


Machine footprint
351" x 43.5" x 55.25" (L x D x H)
Construction material
Stainless steel
Conveyor type
Temperature resistant
Three zone/stage design
Yes
Weight
Approx. 5500 lbs. (2500 kg)

Custom Options


Control panel type
Digital
Integration possibilities
With existing production line systems
Cooling towers available
Optional
Indexing system infeed
Available
Indexing system discharge
Available
