Cooling bath for efficient extrudate processing

Ensure optimal cooling for extrudates to maintain product integrity and enhance downstream processing efficiency with flexible configurations to fit any production line.

Cools and Handles Extrudates for Processing

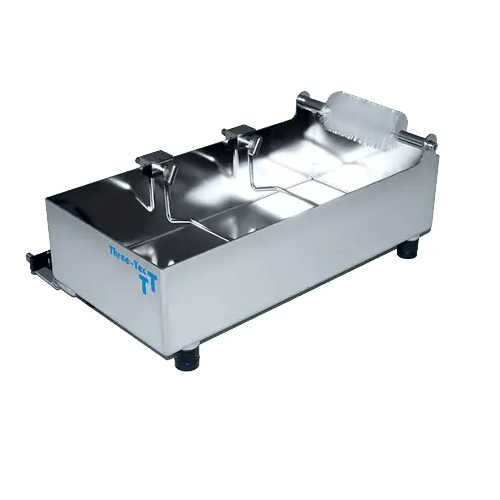

The Cooling Bath from Three-Tec GmbH is specifically designed for continuous extrudate processing in the extrusion and polymer industries. This versatile equipment is crucial for cooling plastic, rubber, and composite materials before further processing, such as winding or pelletizing. Available in various lengths, it features hold-down bars or rollers, and a scraper brush to ensure stable handling of materials. The unit is mounted on damping elements to minimize vibrations, enhancing operational stability. With a connection for a cooling unit in larger models, and an adjustable water level system, it offers precise control over the cooling process. Constructed to meet the demands of chemical, food, plastics, polymer, and rubber industries, it supports a wide range of end-products from plastic pellets to composite panels. Additionally, the bath’s efficient design provides quick drainage through built-in valves, simplifying cleaning and maintenance.

Benefits

  • Optimizes material integrity and quality through precise cooling control.
  • Enhances production line efficiency by preparing extrudates for immediate downstream processing.
  • Minimizes vibration for smoother operation and reduced wear.
  • Simplifies maintenance and cleaning with easy-drainage valves.
  • Adapts to diverse industrial applications with adjustable water level and adaptable lengths.

General


Applications
Polymers,Rubbers,Extrudates,Plastics,Composite materials
End products
Composite sheets,Composite panels,Polymer filaments,Rubber sheets,Rubber granules,Plastic pellets,Polymer rods,Plastic films
Steps before
Extrusion
Steps after
Winding,Pelletizing
Input ingredients
extrudates
Output ingredients
cooled extrudates
Market info
Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.

Technical Specifications


Cooling Length
Various lengths available
Cooling Method
Water cooling
Water Level Adjustment
Adjustable
Hold-down Type
Bars or rollers
Scraper Type
Brush
Mounting Type
Damping elements
Water Drain
Drain valve / Overflow valve

Operating Characteristics


Cooling method
Immersion in water
Length and design variability
Custom lengths and designs
Adjustable water level
Yes
Scraper brush inclusion
Yes
Hold-down mechanism
Bars/Rollers
Cooling unit connection
Available for larger models
Damping elements mounting
Yes
Water drainage
Via valve

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Cleanability
Easy to clean with water

Physical Characteristics


Cooling bath length
Varies
Design variations
Differing designs available
Mounting elements
Damping elements
Holding mechanism
Hold-down bars or rollers
Scraping component
Scraper brush
Water inflow connection
Available
Water drain connection
Available
Cooling unit connection
Available on larger models
Water level adjustment
Adjustable

Custom Options


Cooling unit connection
Yes/No
Holding method
Hold-down bars / rollers
Water level adjustability
Yes/No
Length options
Various lengths
