Conveyors for food packaging metal detectors

Ensure seamless integration and safety in food processing lines with conveyors designed for precise metal detection, helping maintain product quality and prevent contamination.

Detects and Removes Metal Contaminants

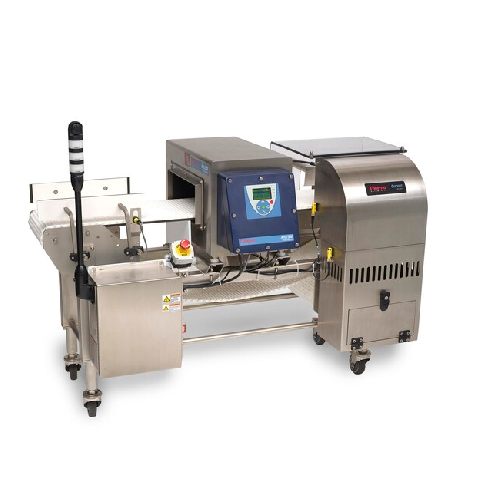

Thermo Scientific™ Quickfit and Customfit Metal Detector Conveyors are designed to enhance product safety and streamline operations in food processing and packaging. These conveyors are engineered to effectively detect and remove metal contaminants in diverse food products such as snack bars, trail mix, and pasta packages. They feature a flexible modular plastic belt and rugged 304 stainless steel construction, making them suitable for continuous, high-speed operations in harsh environments. Quickfit models provide a cost-effective standard solution for a range of applications, while Customfit conveyors offer extensive customization options, including variable speeds, retracting belts, and IP69K washdown upgrades for enhanced sanitation. Both models comply with FDA food safety standards and include options for integration into existing lines using APEX and Sentinel series metal detectors. With belt widths up to 40 inches and lengths up to 120 inches, these conveyors cater to various production needs, ensuring reliable operation and minimal downtime.

Benefits

  • Enhances product safety by effectively detecting and removing metal contaminants.
  • Integrates seamlessly into existing lines, minimizing setup times and ensuring consistent production flow.
  • Customizable options support diverse processing needs, from bulk flow detection to specialized packaging.
  • Complies with FDA standards, ensuring food safety and quality assurance.
  • Durable construction withstands harsh environments, reducing maintenance costs and prolonging equipment lifespan.

General


Applications
Food packaging,Food processing equipment,Bulk flow metal detection
End products
Canned soups,Packaged chocolates,Pasta packages,Pre-cooked meals,Trail mix,Frozen vegetables,Bagged nuts,Spice jars,Snack bars,Processed cheese,Cereal boxes,Ground coffee bags
Steps before
Sorting,Initial Inspection,Separation
Steps after
Quality Assurance,Packaging,Distribution
Input ingredients
food packaging,bulk flow products
Output ingredients
metal-detected food packages,rejected products
Market info
Thermo Fisher Scientific is renowned for providing innovative scientific instruments, laboratory equipment, and engineered-to-order solutions across various industries, esteemed for their high-quality products and expertise in life sciences, pharmaceuticals, and biotechnology sectors.

Technical Specifications


Electrical Input
115/230 VAC single phase,230/460 VAC three phase
Frequency
47 to 65 Hz
Compressed Air for Rejection Devices
80 psi to 100 psi (5.5 bar to 6.9 bar)
Maximum Product Weight
100 pounds (45 kg)
Operating Temperature
14°F to 104°F (0°C to 40°C)
Relative Humidity
20 to 90% non-condensing
Belt Widths
6,12,18,and 24 inches (152,304,457,and 609 mm)
Conveyor Lengths
48 to 96 inches (1.2 to 2.4 m)
Conveyor Heights
23.5 to 41.5 inches (597 to 1054 mm)
Motor and Gear Box
1/2 HP epoxy painted
Speed Range
30 to 200 feet/minute (9.1 to 61 m/minute)
Options
Variable speed,casters,stop belt,stainless motors
Construction Material
304 stainless steel

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


UL508A
optional

Physical Characteristics


Belt Widths
6,12,18,24 inches
Conveyor Lengths
48,54,60,66,72,84,90,96 inches
Conveyor Heights
23.5 to 41.5 inches
Motor and Gear Box
1/2 HP epoxy painted
Speed Range
30 to 200 feet/minute
Construction
304 stainless steel bead blast frame
Maximum Product Weight
100 pounds
Operating Temperature
14°F to 104°F

Custom Options


Belt Widths
6 to 40 inches (152 to 1016 mm)
Conveyor Lengths
48 to 120 inches (1.2 to 3.0 m)
Conveyor Heights
26 to 60 inches (660 to 1524 mm)
Speed Range
30 to 200 feet/minute (9.1 to 61 m/minute)
Electrical Input
115/230 VAC single phase,230/460 VAC three phase
Motor and Gear Box
1/2 HP epoxy painted
Options
Variable speed,casters,stop belt,stainless motors,other types of belts including flat,guiderails,photoeyes,LED lights/horn,rejection devices,stainless steel chutes/bins,retracting belt,flap/drop gate rejecters,HD direct drive construction for heavy products,inclined belt,sanitary designs
Washdown Rated Upgrade
IP69K
